Adjustable Plastic Square Column Formwork

Flexible Size Adjustment · Lightweight Panels · Fast Assembly · Reusable Concrete Formwork

The Adjustable Plastic Square Column Formwork is a modular formwork solution developed for cast-in-place concrete square columns. Its adjustable design allows contractors to configure different column dimensions using the same formwork system, making it suitable for construction projects with varying square column sizes.

Compared with conventional fixed-size formwork, this plastic column formwork combines flexible sizing, lightweight panels and simple assembly to make on-site installation and handling more convenient. It can be used for residential, commercial and industrial concrete column construction where adaptable and reusable formwork is required.

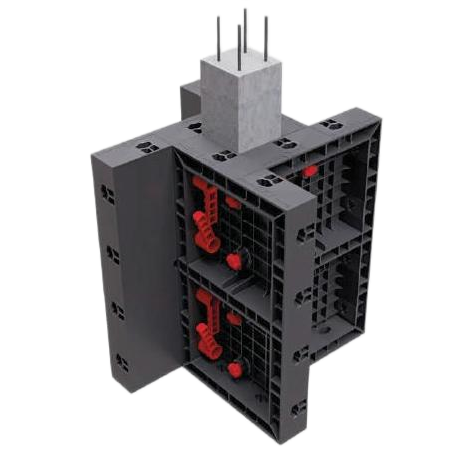

Modular adjustable plastic square column formwork assembled on site for a cast-in-place concrete column.

Adjustable Column Sizes from 150mm to 600mm

One of the main advantages of this adjustable plastic formwork is its flexible column size range.

The system supports square column cross-sections from 150mm to 600mm, with a standard adjustment increment of 50mm. This allows the formwork configuration to be changed according to different column dimensions without requiring a separate fixed-size mold for every application.

The adjustable structure provides greater flexibility when the same formwork system is used across different areas of a construction project. It also helps reduce the need for multiple dedicated column formwork sizes.

Adjustable Size Range

• Minimum column size: 150mm × 150mm

• Maximum column size: 600mm × 600mm

• Adjustment increment: 50mm

This flexible sizing makes the system suitable for a wide range of square concrete column requirements.

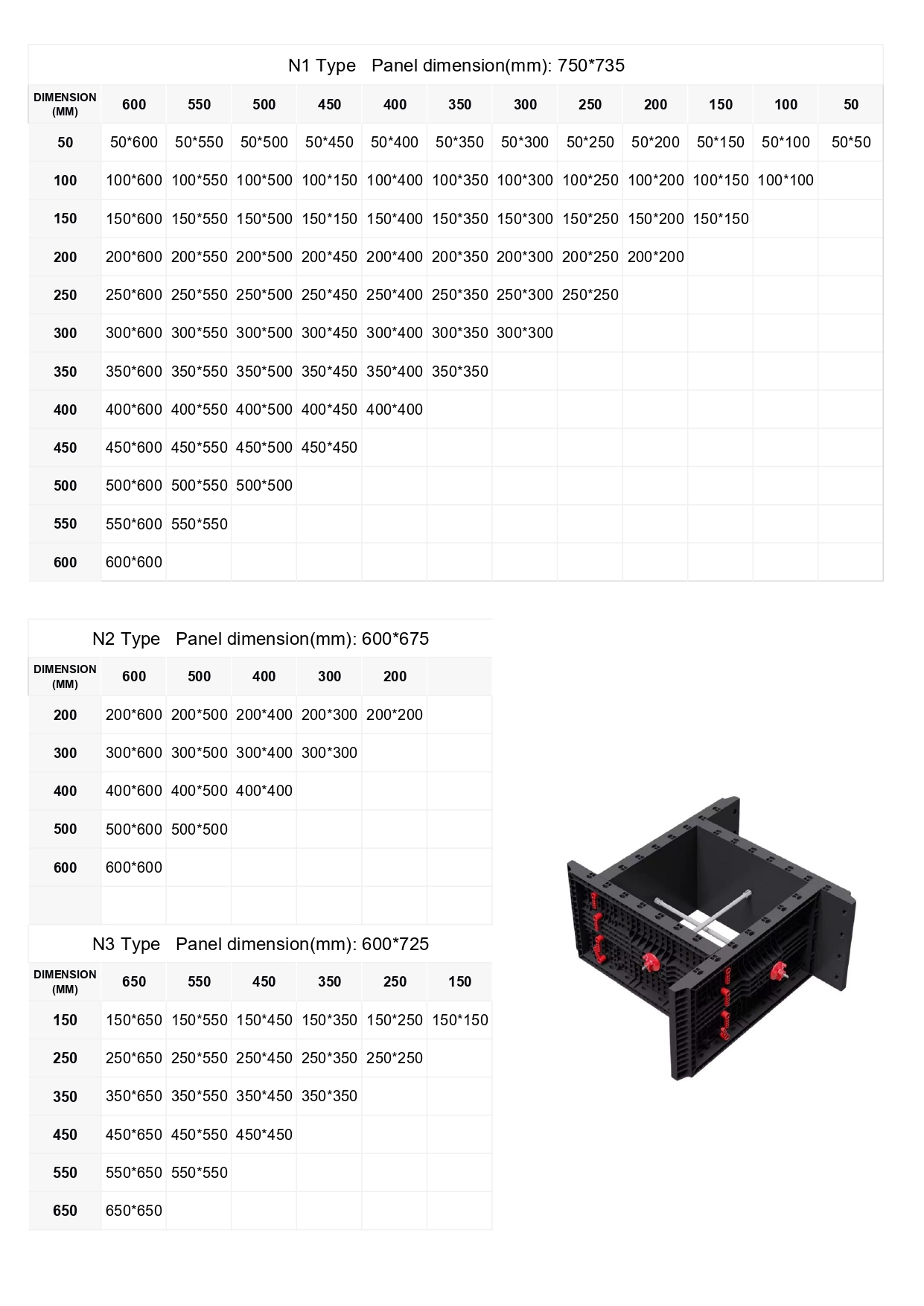

Column cross-sections can be adjusted from 50mm × 50mm up to 600mm × 600mm in 50mm steps.

600mm and 750mm Panel Heights

The plastic square column formwork is available in two standard single-section heights:

• 600mm

• 750mm

Multiple sections can be vertically connected to create the required formwork height for different column applications. The vertical splicing structure is designed to keep adjacent sections properly connected, helping maintain stable joints during concrete pouring.

This modular height configuration also makes the formwork easier to adapt when column heights vary between different construction areas.

Lightweight 6.5KG Formwork Panel

Handling efficiency is another important feature of this adjustable column formwork system.

Each formwork panel weighs only 6.5KG. The lightweight construction makes individual panels easier to carry, position and install manually on site.

Compared with heavier conventional formwork systems, the lower panel weight can simplify material handling and reduce the physical workload involved in moving formwork between working areas. The panels can be handled without relying on cranes or other mechanical lifting equipment for normal panel positioning.

Fast Assembly with Handle Connections

The adjustable plastic column formwork uses a dedicated handle connection system for quick panel assembly.

Panels can be connected and secured by operating the handles, without requiring professional installation tools. This straightforward connection method helps construction workers assemble the square column formwork efficiently on site.

The modular connection system is particularly useful when formwork needs to be repeatedly assembled, adjusted and relocated during a project.

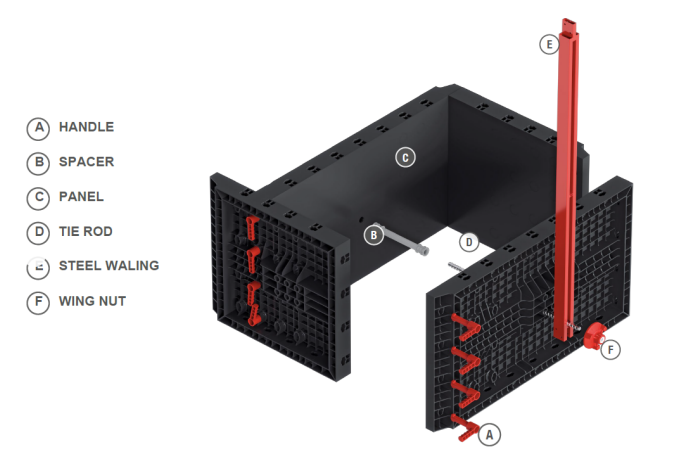

Handle connection system for tool-free panel assembly and quick size adjustment.

Reinforcement System for Concrete Pouring

For additional support during concrete placement, the adjustable plastic formwork can be combined with a supporting reinforcement system.

Available reinforcement components include:

• Steel walers

• Screw rods

• Diagonal braces

These components work together with the plastic formwork to provide additional external support during concrete pouring. The reinforcement arrangement helps resist concrete lateral pressure, limit formwork movement and maintain the required square column geometry.

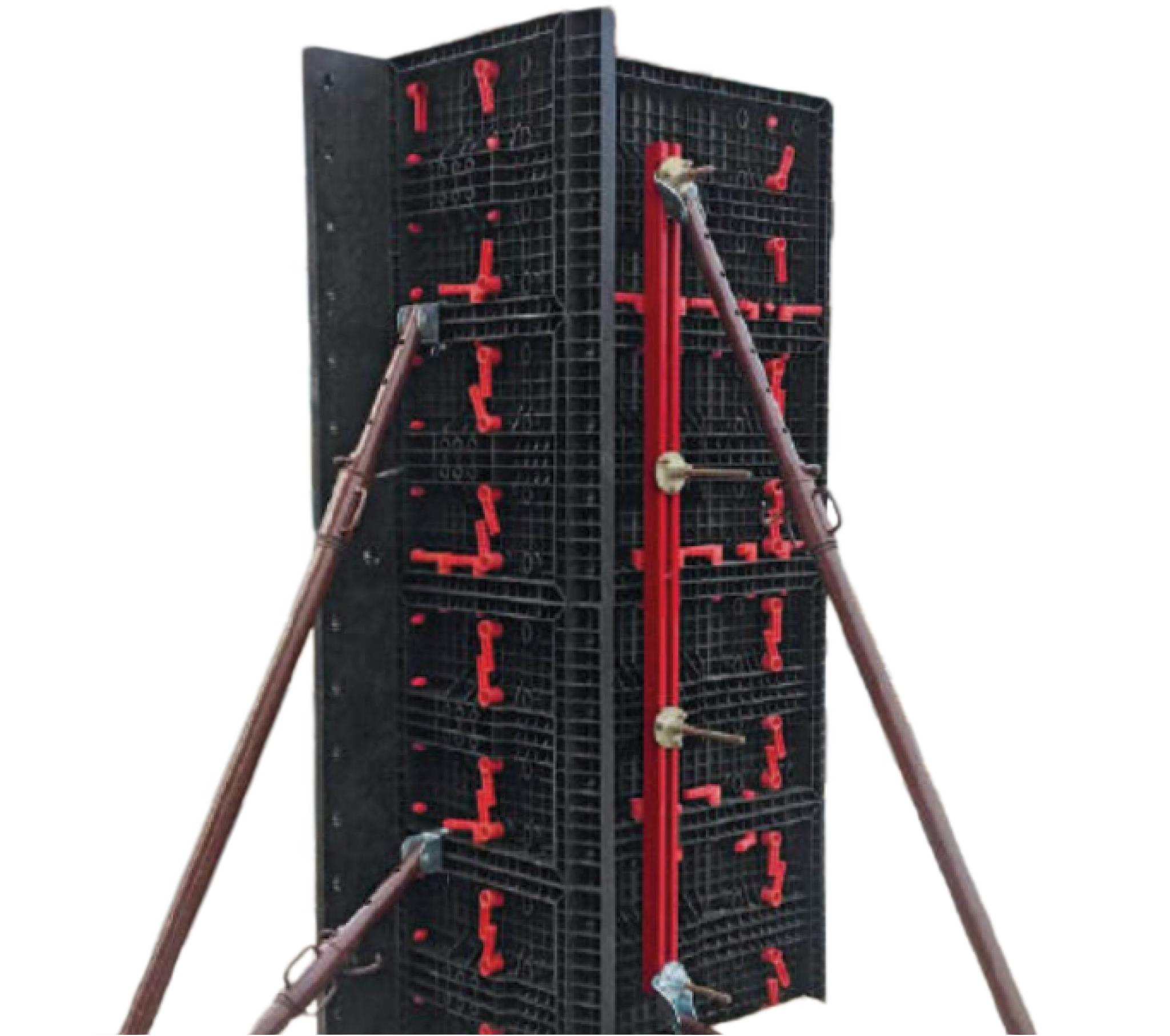

Steel walers, screw rods and diagonal braces provide external support during concrete pouring.

Reusable Plastic Column Formwork for Different Projects

The modular design allows the same adjustable square column formwork to be configured for different column dimensions within its specified adjustment range.

This makes it suitable for projects where column sizes are not identical throughout the building. Instead of relying entirely on individually manufactured fixed-size molds, contractors can adjust the formwork configuration according to the required column section.

Typical applications

• Residential building columns

• Commercial building columns

• Industrial construction

• Cast-in-place concrete square columns

• Projects with multiple square column dimensions
