H20 Beam Concrete Wall Formwork – Modular & High-Efficiency Vertical Shuttering System

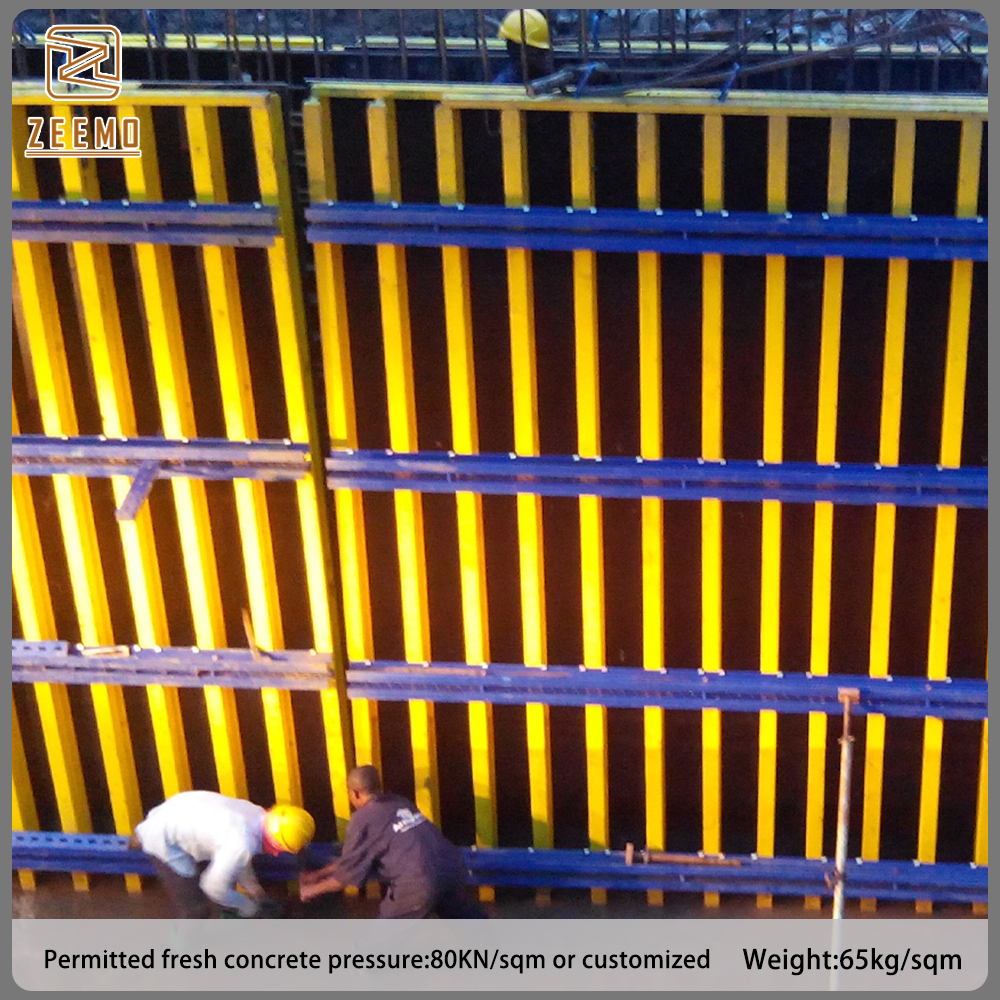

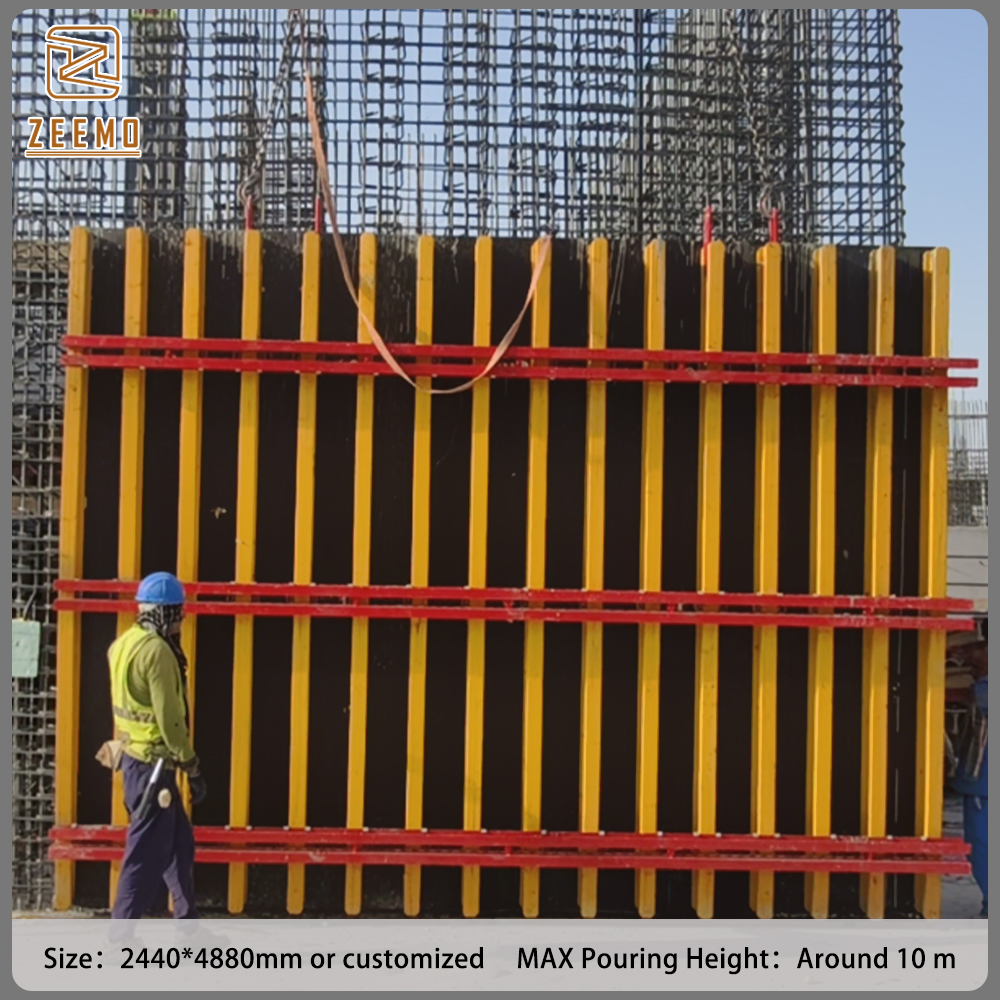

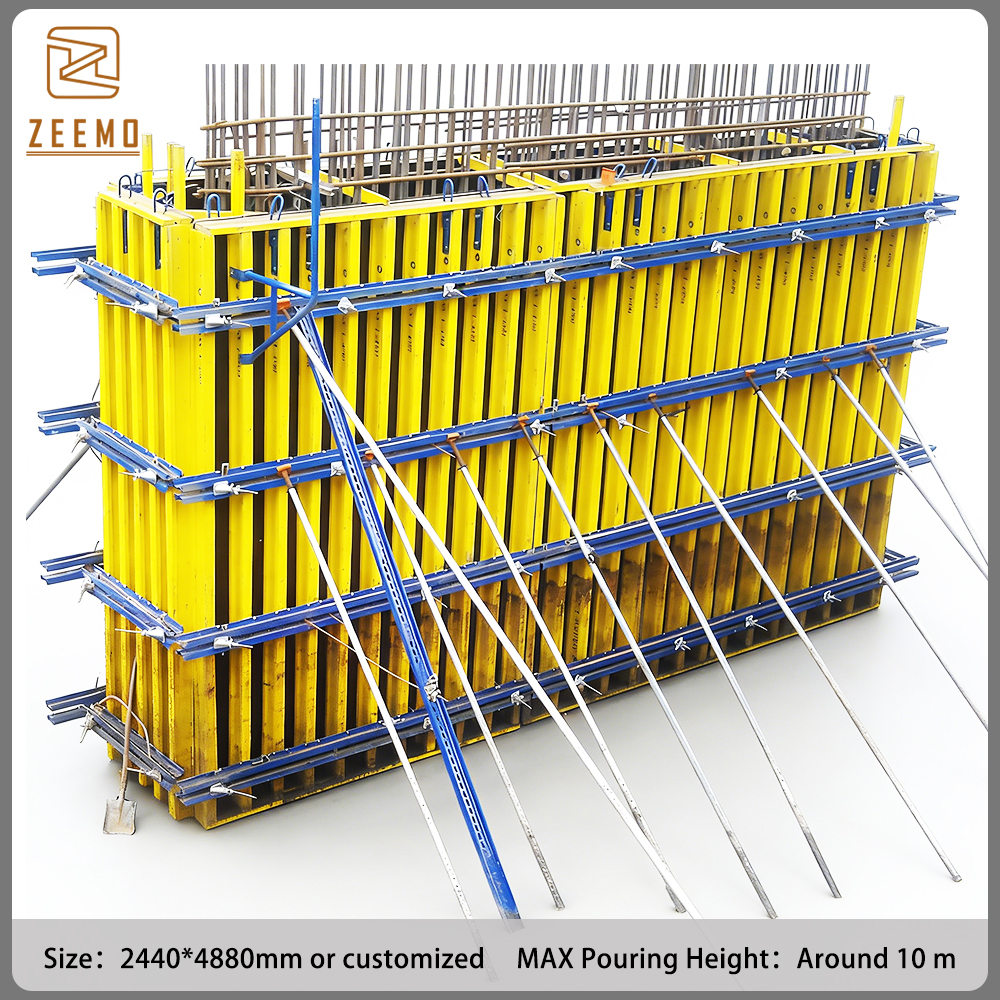

H20 Beam Concrete Wall Formwork is a mature modular shuttering system widely adopted for residential buildings, commercial complexes and infrastructure projects. Composed of H20 engineered timber beams, phenolic plywood panels, steel walers and standard connecting fittings, the system is specially designed for vertical concrete wall casting. It supports flexible combination to fit walls of varying heights and widths, adapting to diverse construction layouts.

Each H20 timber beam weighs only around 5 kg per meter yet delivers outstanding bending resistance. The complete system safely withstands concrete pressure up to 50 kN/m² with excellent integral rigidity, effectively preventing deformation during pouring. After demolding, walls achieve flat surfaces with tolerance within ±2mm, cutting subsequent plastering workload by over 40%.

Thanks to standardized, interchangeable components, assembly and stripping efficiency rises by nearly 30% versus traditional loose timber formwork. Properly maintained H20 beams can achieve over 50 reuse cycles, and damaged parts can be replaced individually instead of discarding the whole set. The lightweight structure reduces manual labor intensity and improves site safety. With lower comprehensive amortization cost and stable construction quality, H20 Beam Concrete Wall Formwork remains a cost-effective vertical forming solution favored by global contractors.
