Features
1、High Rigity, Long Service Life.
· Flang is made of imported Finnish spruce.
· Web is made of Ply, WBP adhesive.
· Two ends of each beam could be sealed with plastic cap or steel cap to protect it from moisture, crash,or harm to labor.
· Yellow Waterproof painting.
· EN13377 Standard qualified.

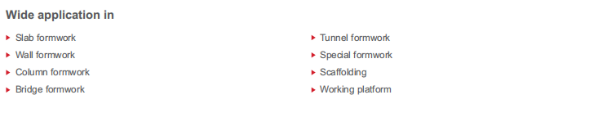

2、Applicable in all kinds of Girder Formwork System
Timber beam is a very important part of formwork system and has been widely applied in construction.
Not only used in wall / column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge / Tunnel/ Airport/ Powerplant/ water treatment etc.
3、Custom size
As required, standard holes can be drilled in the two ends of timber beams. We can lengthenthe timber beam by end-to-end join. According to customers’ demand, we can produce timer beams with any length.
As required, standard holes can be drilled in the two ends of timber beams. We can lengthen the timber beam by end-to-end join. According to customers’ demand, we can produce timer beams with any length.
Size & Weight
SPECIFICATION
| H20 Size | Depth 200mm,width 80mm |
| vailable length (M) | 1.5 1.9 2.45 2.75 2.9 3.0 3.3 3.6 3.9 4.5 4.9 5.9 m |
| Flange | North Europe solid wood spruce ,width 80mm thickness 40mm |
| Web | LVL Ply 27mm * 150mm |
| Glue | WBP glue |
| Weight | 4.5 kg/m |
| Moisture Content | 12% ex workshop |
| Package | Pallet , 105 pcs / pallet |

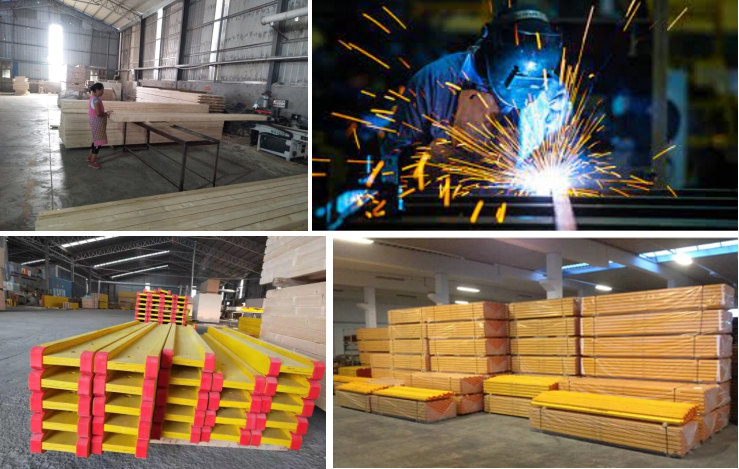

Workshop

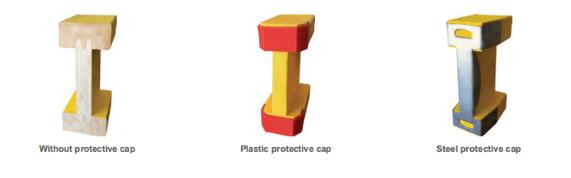

Custom CAP Available
Physical Properties
| Test Items | European Standard | Test Data | ||
| DIN 1052-1:1988-04 | DIN 1052:200812/Eurocode 5 | ZEEMO H20 Beam | ZEEMO H20 Beam ECO | |
| Shearing Resistance (KN) | 11 | 23.9 | 29.13 | 37.22 |
| Bending Resistance( KN ) | 5 | 10.9 | 15.74 | 19.77 |
| Bearing Resistance(KN) | 22 | 47.8 | 50.20 | 63.30 |

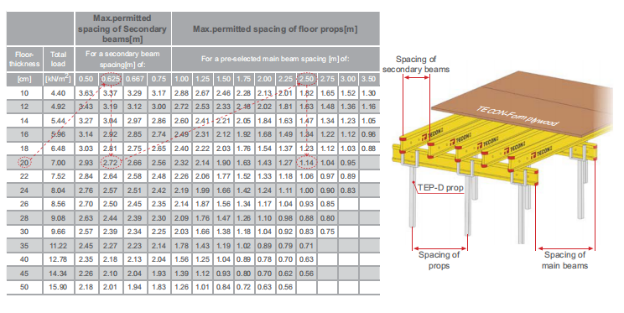

Know How of H20 & Props in Slab

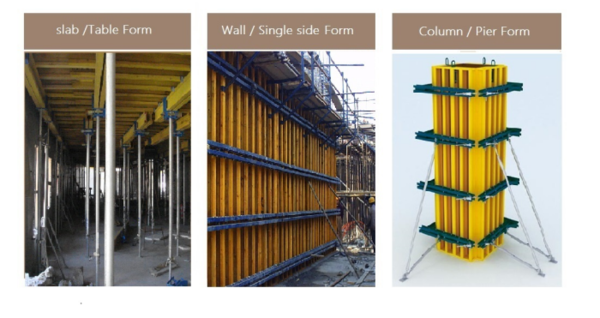

Product Application
Company Profile
Shandong Zeemo Construction Technology Co Ltd is a member of Dongstar Group , amultiple industry group in filmface plywood , construction formwork system , Scaffolding & accessories. President Mr. Wei, is nominted as the president of China Shuttering Board Committee .
Our core is integrating these formwork products to compose an optimium solution.
Our intelligent logistic net could deliver products timely & cost effectively.
Service team will follow all the way.
CULTURE：
we are one family, members care each other, cooperate intimately, we sharing dream, idea and love in family. We holding same duty-- to serve clients .
ENTERRISE RESPONSIBILITY：
we cherish clients’ trust , oriented to solve the solution for project.
Our vision is making the project Zero Emission, Efficient, Money-saving ,Outstanding.

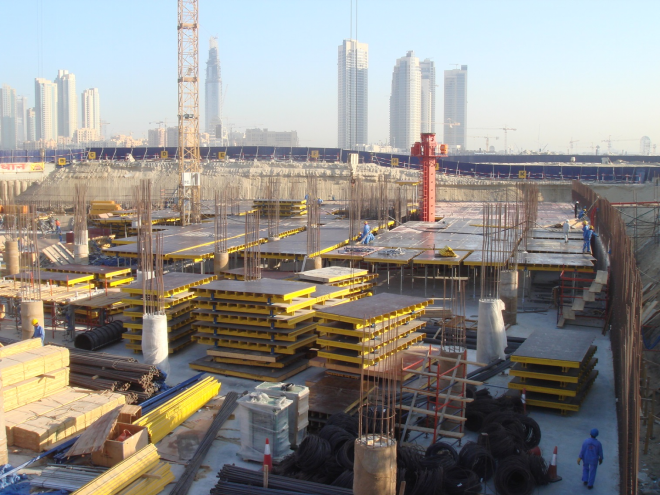

Project in Dubai
