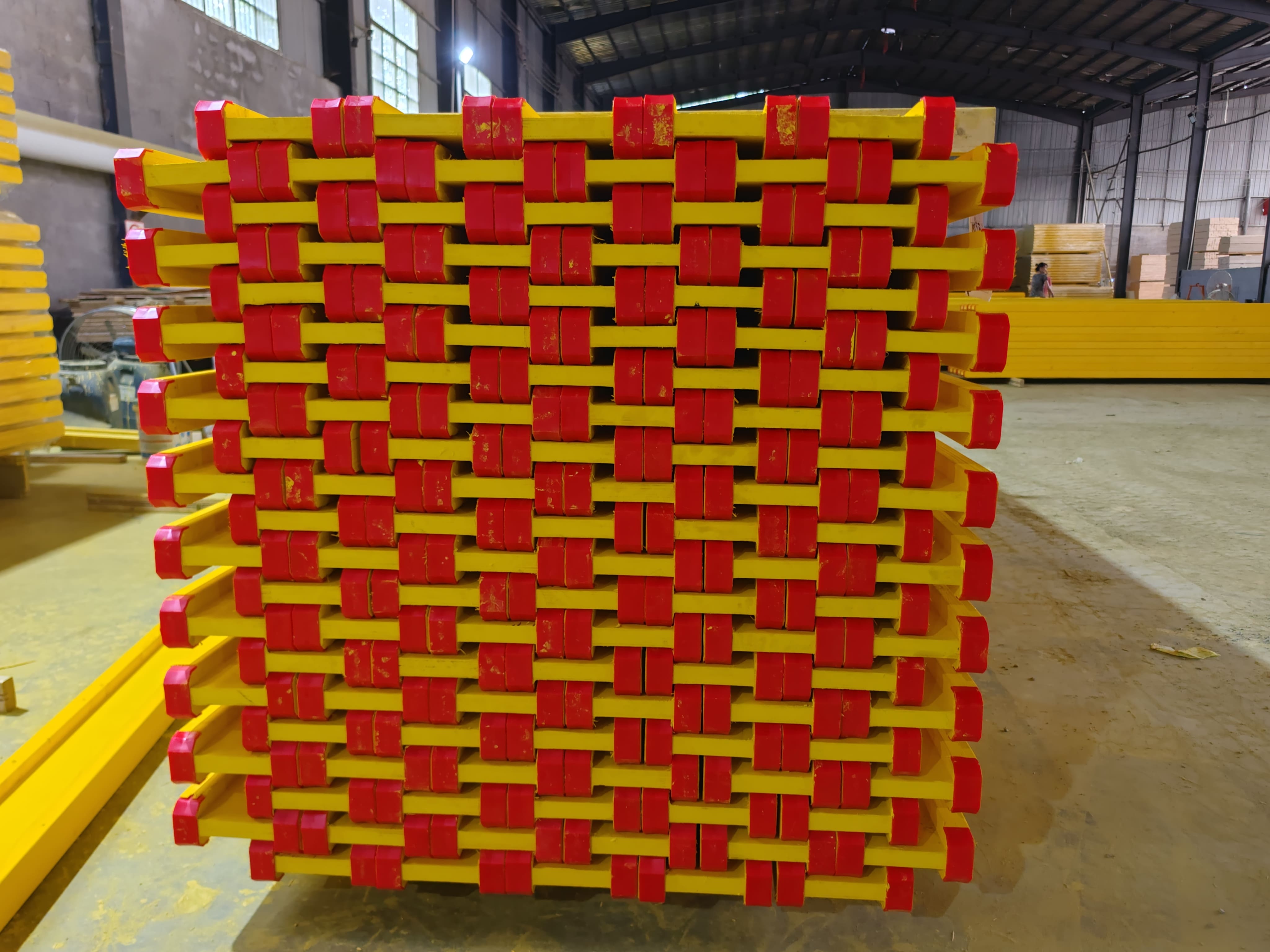

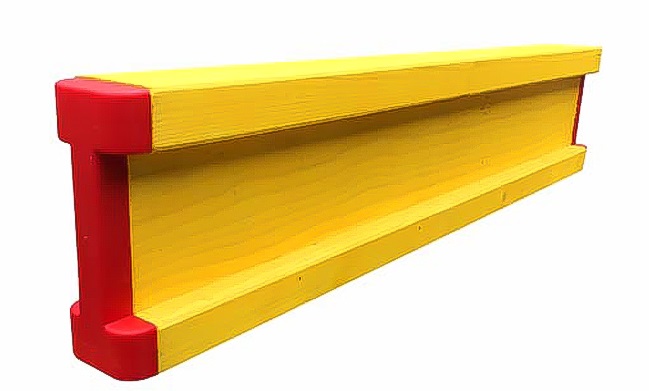

ZEEMO H20 Timber Beam is a high-strength wooden I beam designed for professional concrete formwork systems. Manufactured with Finland spruce flanges, plywood webs and waterproof surface protection, it provides a strong yet lightweight solution for slab, wall, column, climbing and curved formwork applications.
With an approximate weight of 4.8 kg per running meter and lengths available up to 6 m, the H20 timber beam is easy to handle, transport and install. ZEEMO also provides customized lengths and end-hole processing according to project requirements, making it suitable for construction projects ranging from buildings and bridges to tunnels, airports and water treatment facilities.
| Product name: | |
|---|---|
| Size: | |
| Material: | |
| Length: | |
| Weight: | |
| Surface treatment: | |
| Web: | |
| Quantity: | |
H20,H16
zeemo
| Item | Specification |
|---|---|
| Product Name | H20 Beam / H20 Wooden Beam Formwork / Wooden I Beam / Vigas 20 Beam / P20 Beam |
| Flange Material | Finland Spruce |
| Web Material | Poplar / Eucalyptus Plywood |
| Flange Size | 80 mm × 40 mm × Length up to 6 m |
| Web Size | 27 mm × 150 mm × Length up to 6 m |
| Weight | Approx. 4.8 kg per running meter |
| Glue | Melamine / Phenolic Glue |
| Length | Customized Length / Up to 6 m |
| Loading Quantity | Approx. 5,000 meters per 40' HQ Approx. 2,300 meters per 20' FT |

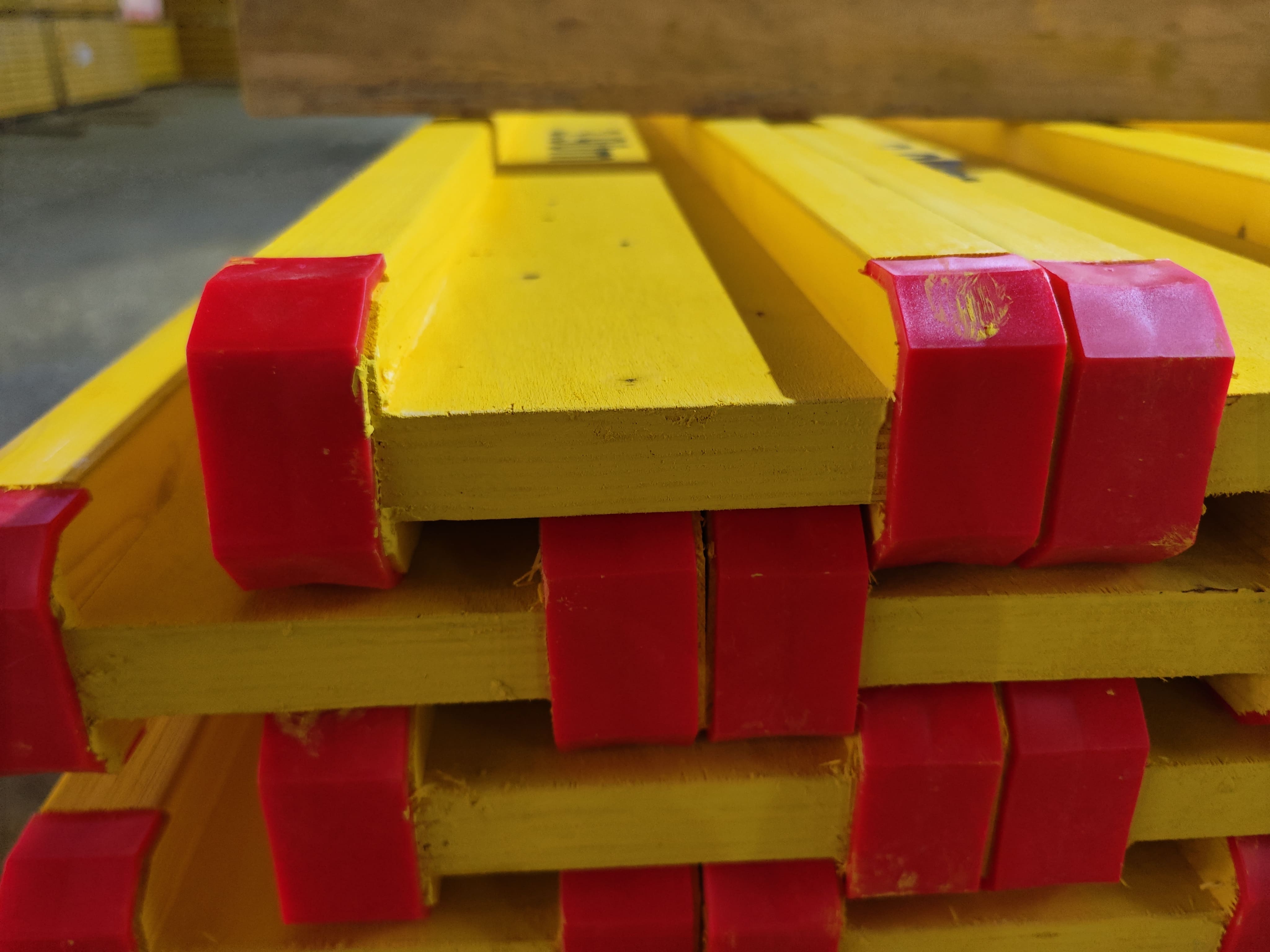

| End Protection | Plastic or Steel Cap |
| Surface Finish | Yellow Waterproof Painting |
| Lead Time | Approx. 15 days after receiving deposit or confirmed L/C |
| MOQ | 1 × 20' FT Container |
| Productivity | Approx. 200,000 meters per month |
| Packing | Pallet Packing, Suitable for Container Loading and Unloading |
| Payment Terms | T/T or L/C at Sight |
| Applications | Slab Formwork System Wall and Column Formwork Hydraulic Climbing Formwork Curved Formwork Supporting Film Faced Plywood |
| Test Item | Test Method | Result | Conclusion |
|---|---|---|---|
| Shear Resistance | With reference to EN 13377:2002 Annex A and client's requirements | 36.03 kN | N/A |
| Bending Resistance | With reference to EN 13377:2002 Annex A and client's requirements | 22.77 kNm | N/A |
| Bearing Resistance | With reference to EN 13377:2002 Annex A and client's requirements | 60.27 kN | N/A |
| Bending Stiffness | With reference to EN 13377:2002 Annex A and client's requirements | 457 kNm² | N/A |
* Technical data is based on the product information provided. Please contact ZEEMO for project-specific engineering confirmation.
ZEEMO can provide customized H20 and H16 timber beams according to different project requirements.
Standard and customized lengths available within 5.9 meters.

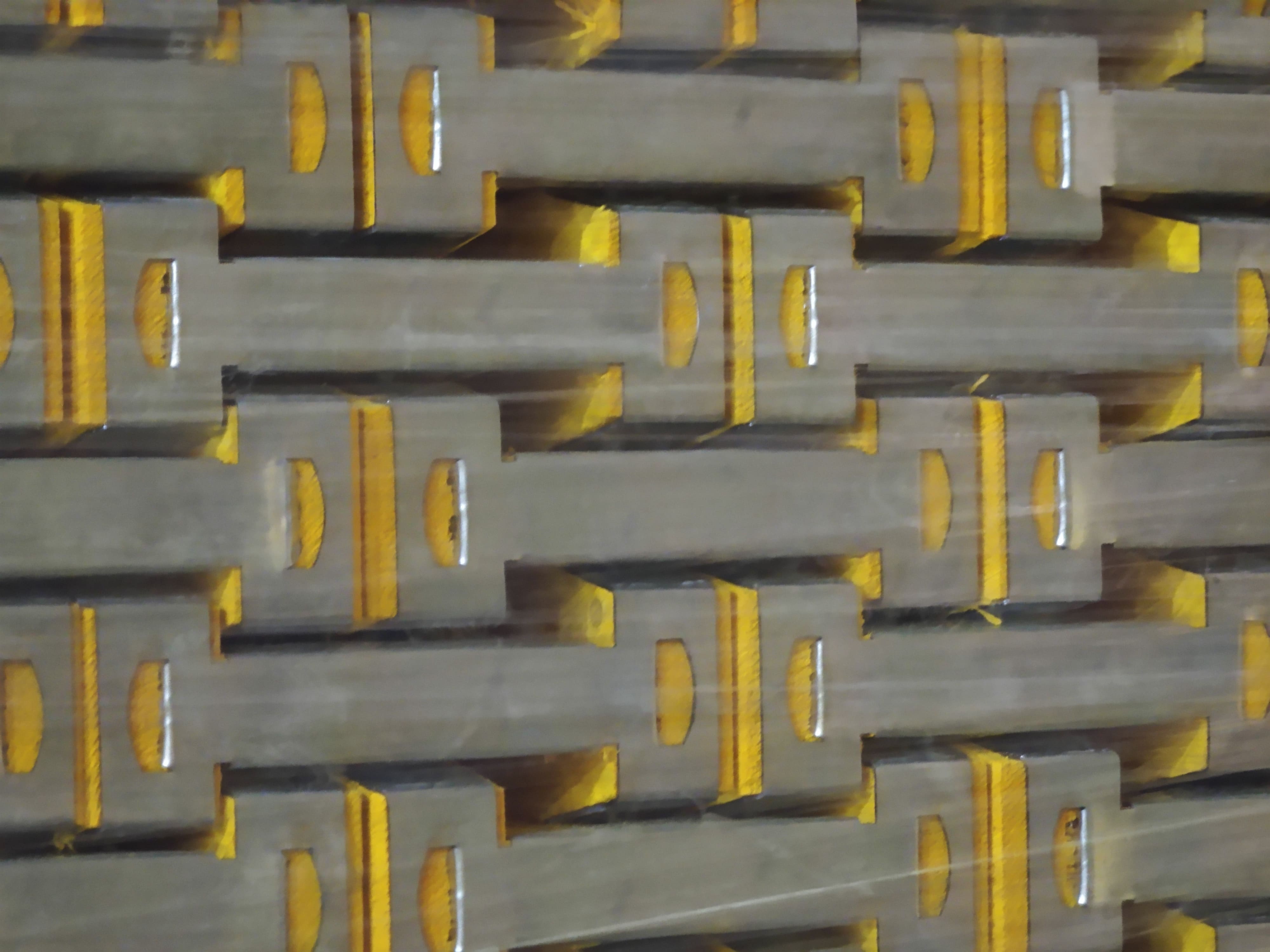

Standard holes can be drilled at both ends of the timber beam.

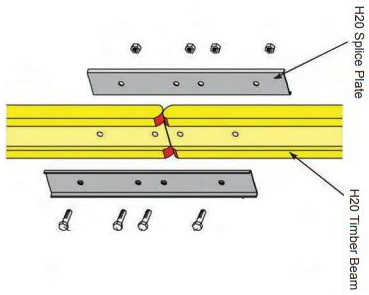

Timber beams can be extended through end-to-end connection.
Customized production can be arranged according to customer requirements.

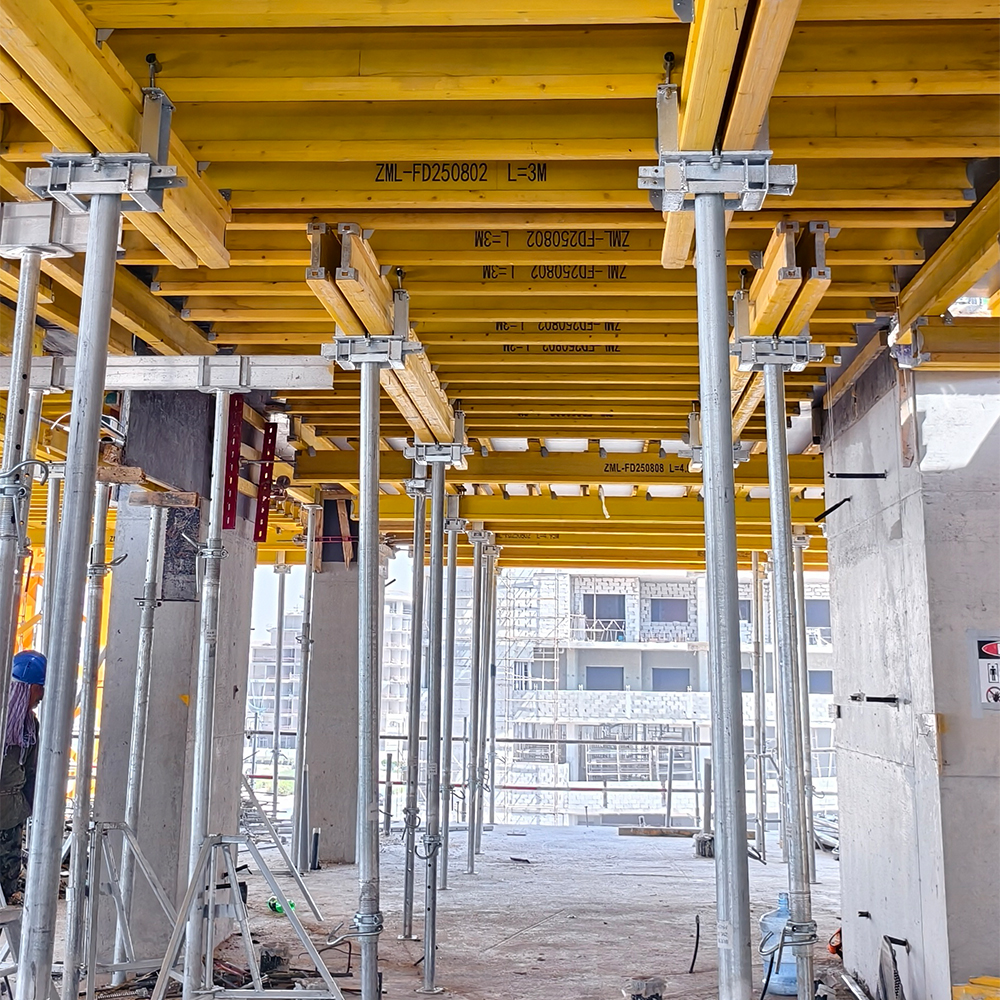

Slab Formwork

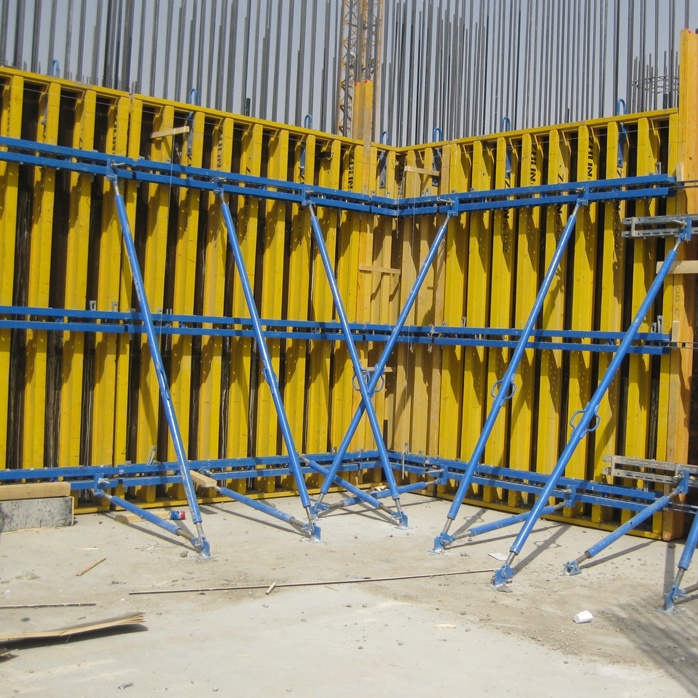

Wall Formwork
Column Formwork

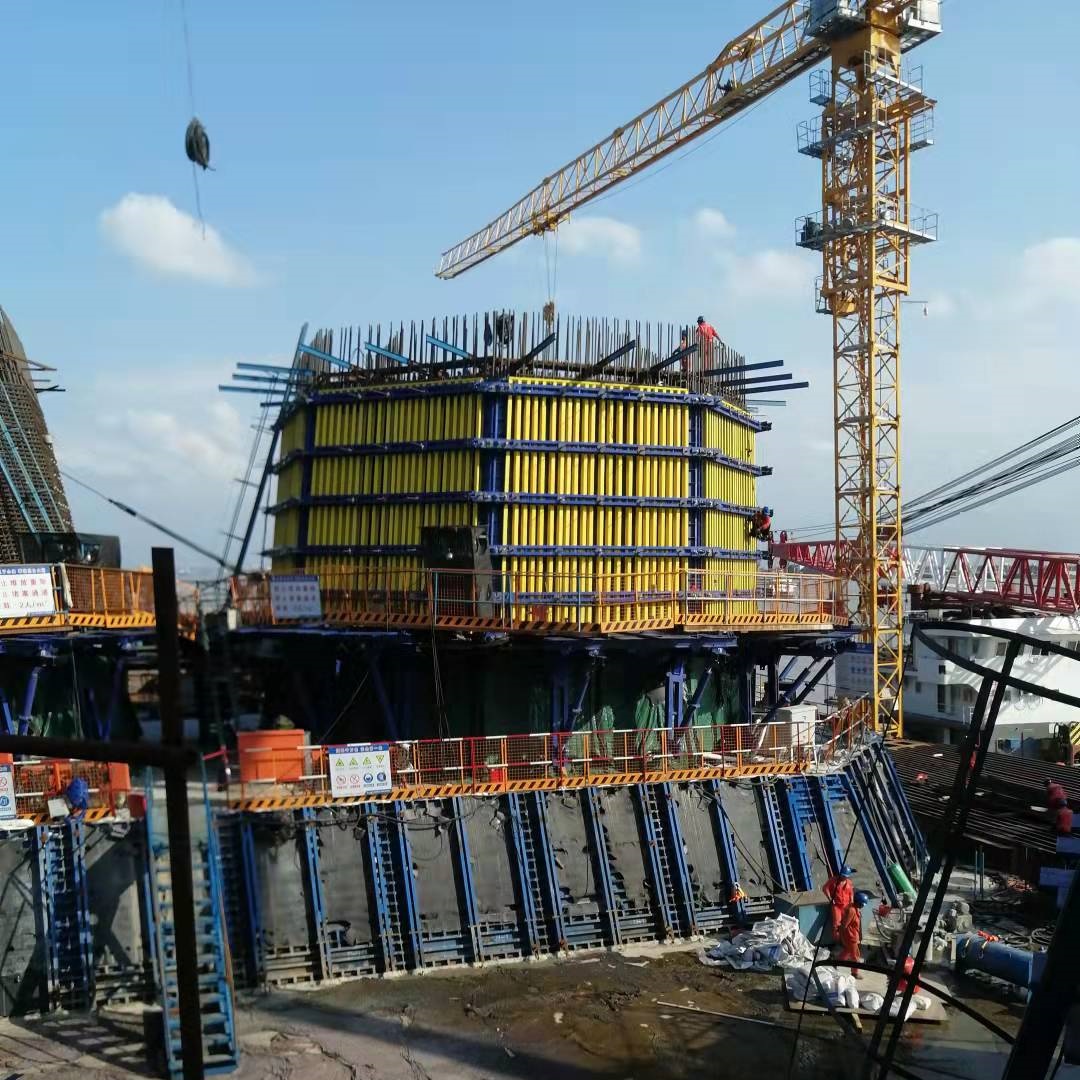

Climbing Formwork

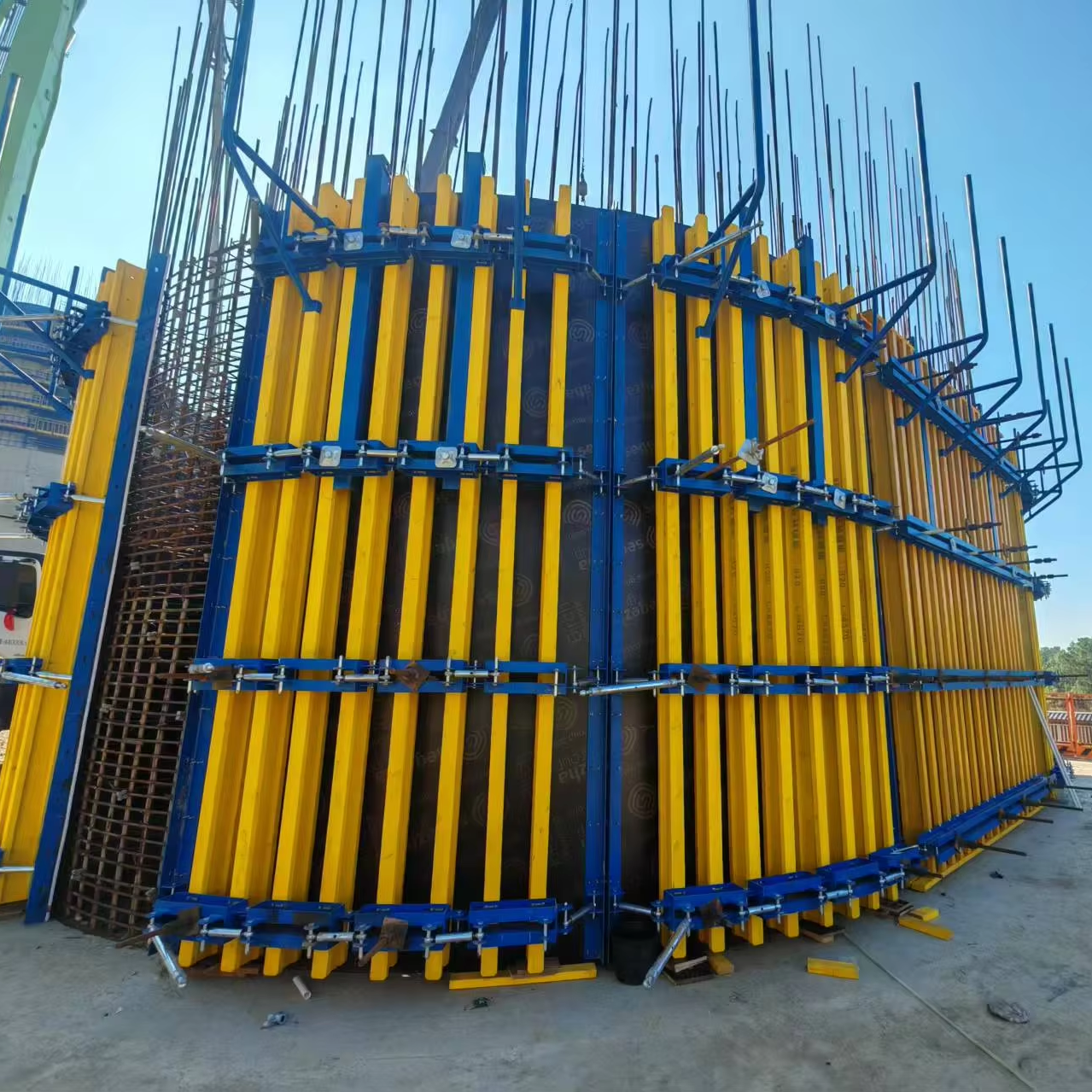

Curved Formwork
From high-rise commercial buildings to public infrastructure projects, ZEEMO H20 timber beams provide a versatile solution for different concrete formwork requirements.

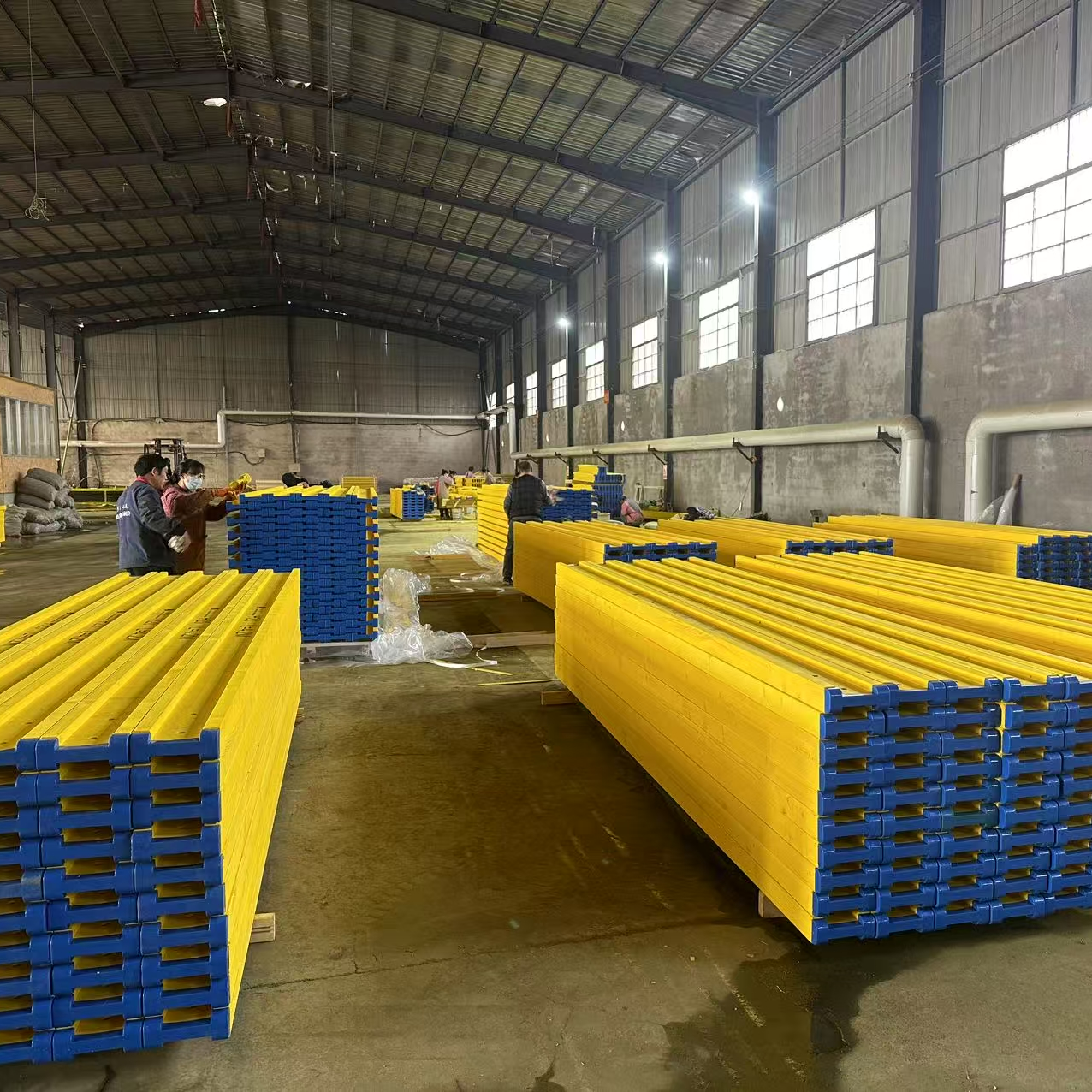

Production capacity can reach approximately 15,000 cubic meters per month.

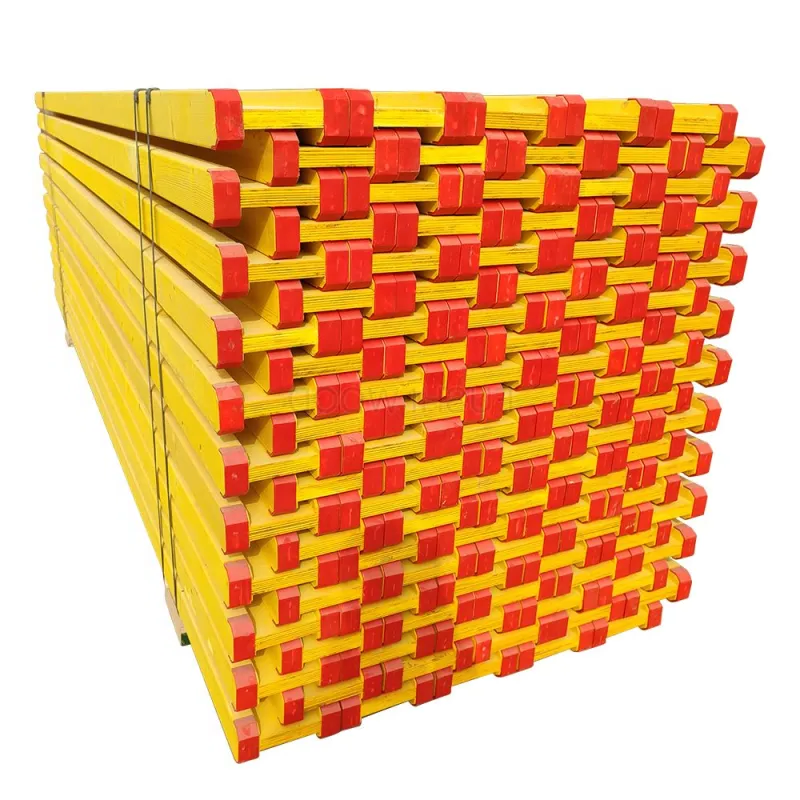

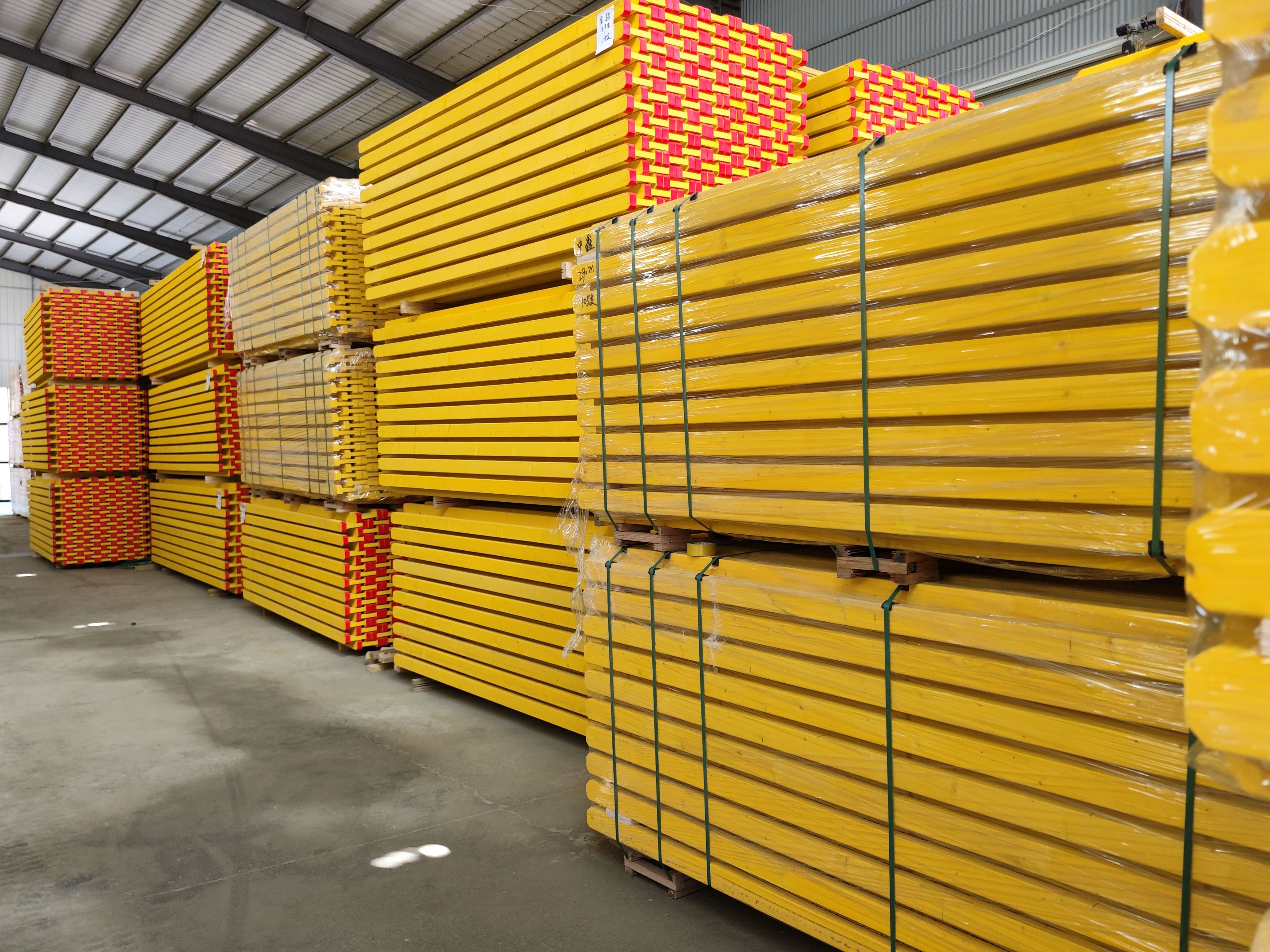

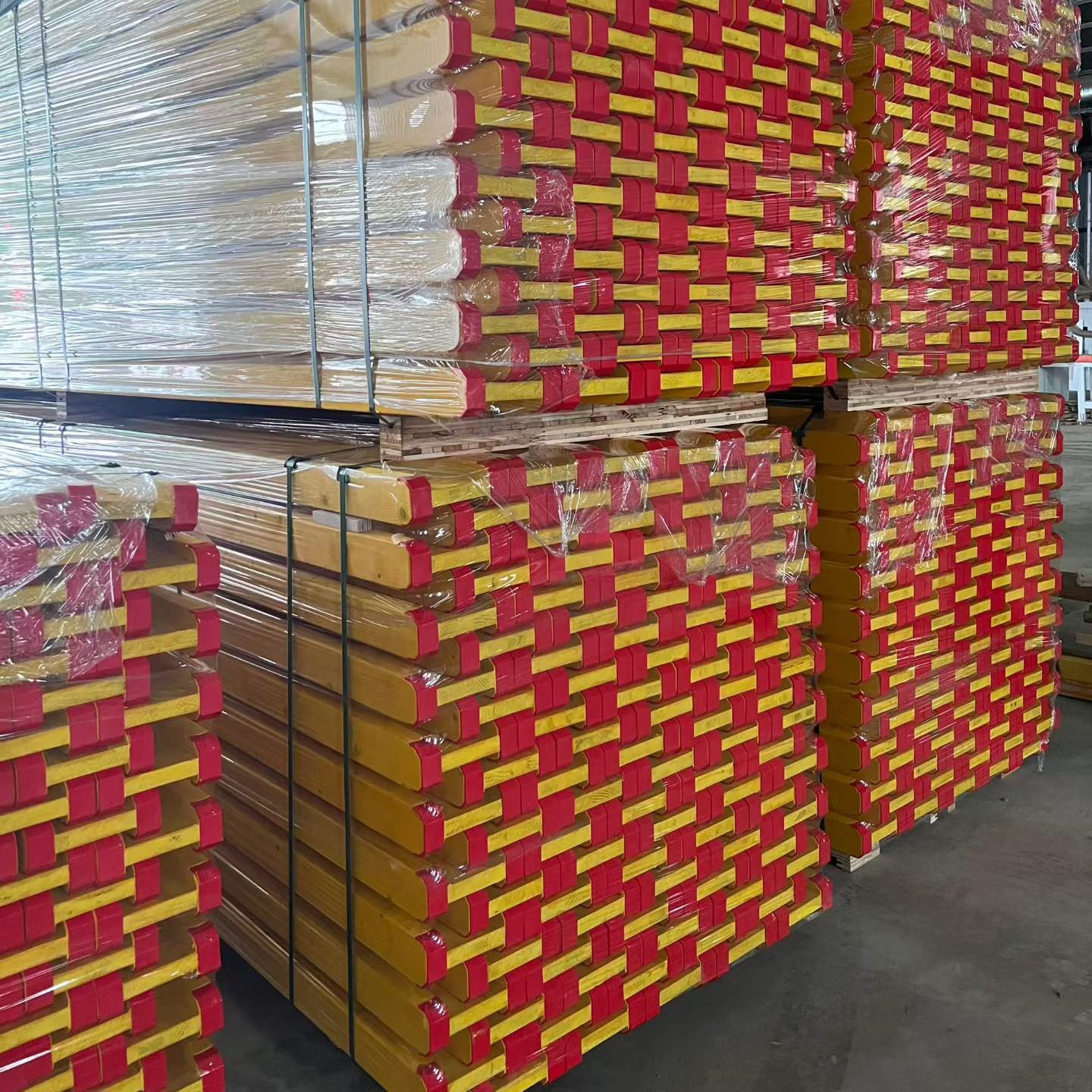

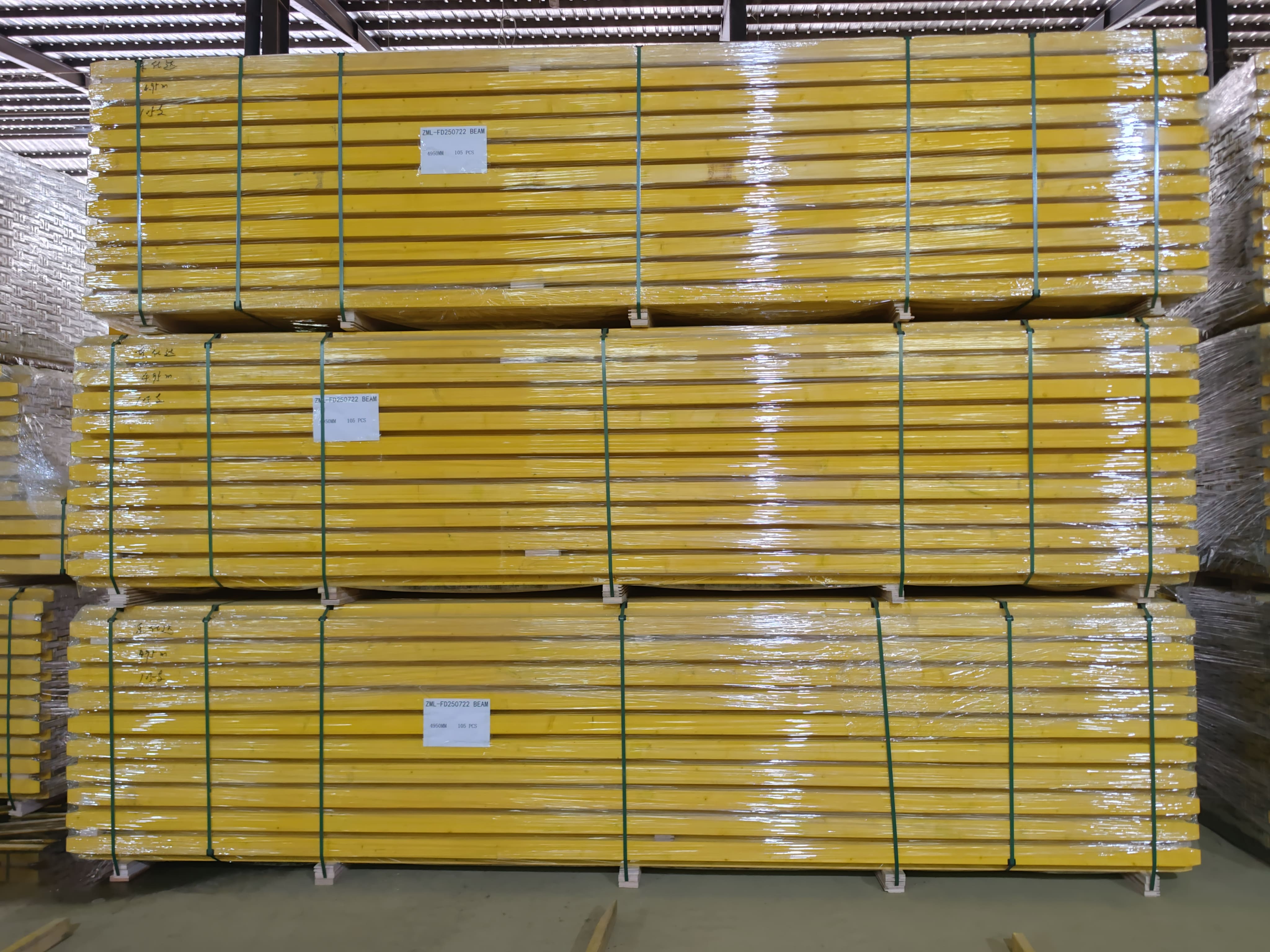

Pallet packing is suitable for efficient container loading and unloading.

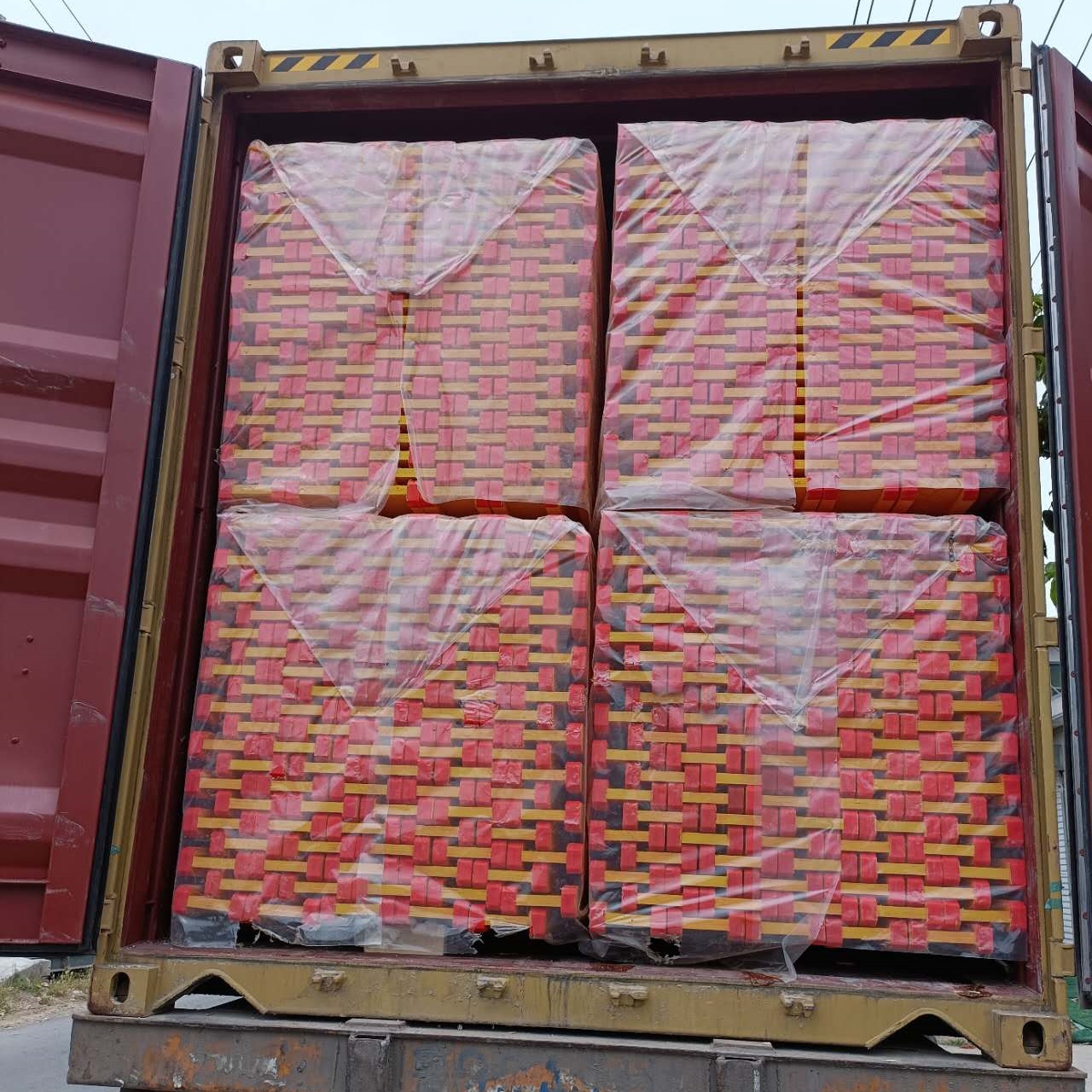

Suitable for international container transportation and export shipment.
H20 timber beam is used as a structural component in concrete formwork systems, including slab formwork, wall formwork, column formwork, hydraulic climbing formwork and curved formwork applications.
Yes. ZEEMO can provide customized H20 and H16 timber beam lengths within 5.9 meters. Standard holes can also be drilled at both ends according to project requirements.
The standard minimum order quantity is one 20-foot container. Please contact us if you have special project requirements.
The standard lead time is approximately 20 days after receiving the deposit or confirmed L/C. The final delivery schedule depends on order quantity and production arrangements.
We accept T/T and L/C at sight, subject to the final commercial agreement between both parties.
Loading quantity depends on the selected beam length, Max 5000 meter /40'HC
Contact ZEEMO today for product specifications, customized lengths, technical support and a competitive quotation for your concrete formwork project.
