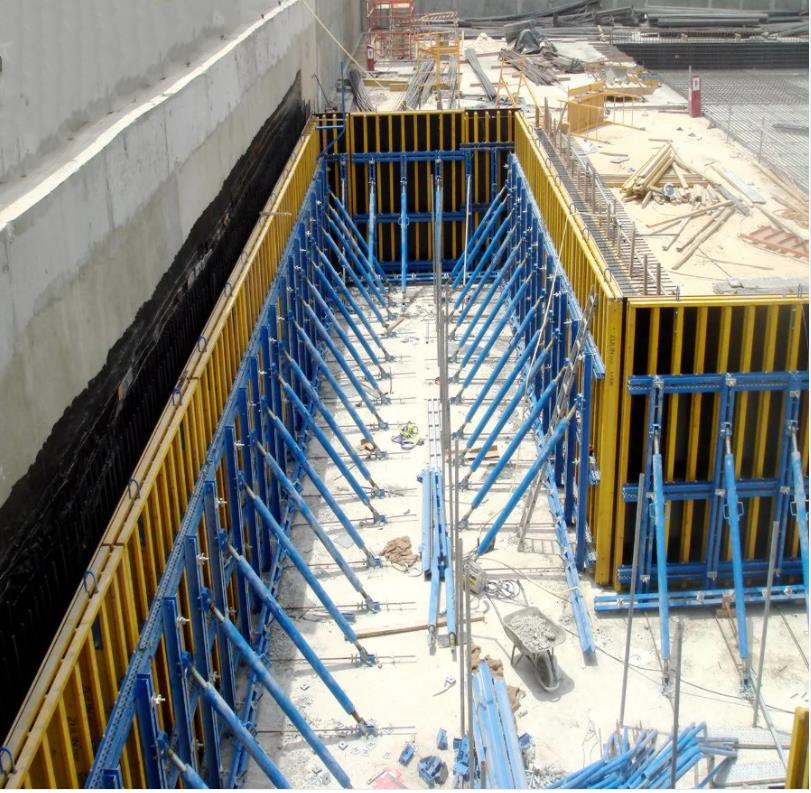

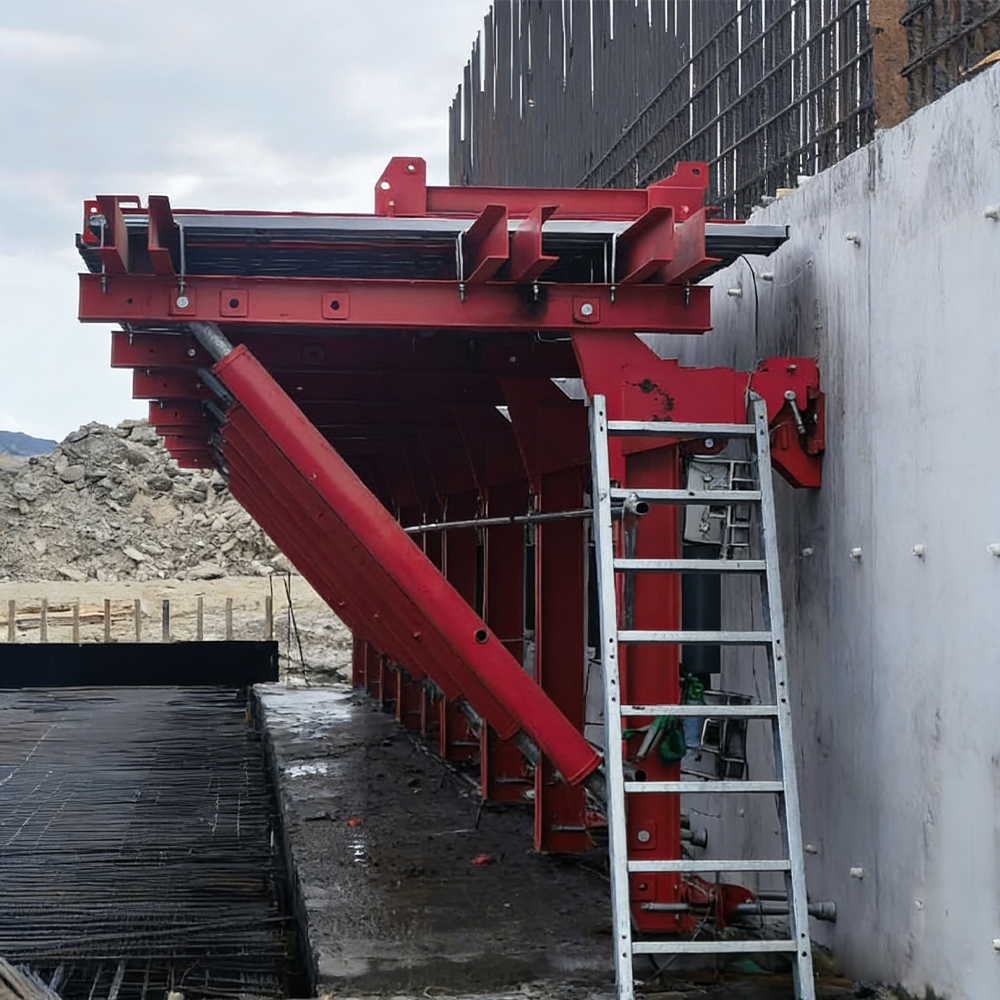

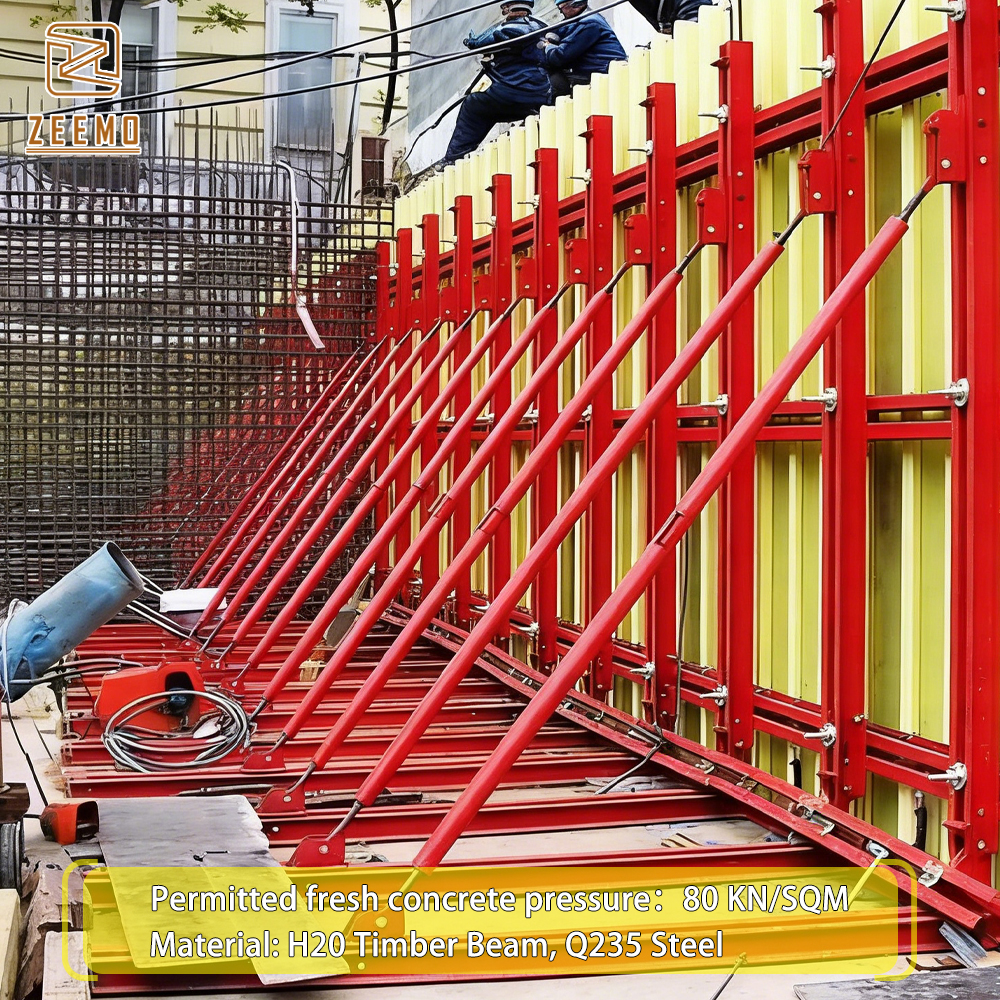

Protection Wall Concrete Pouring Single Side Climbing Formwork is a professional integrated forming system specially developed for retaining walls, tunnel side walls, dam protection walls and underground enclosure structures with limited construction space. Different from traditional double-sided formwork, it removes the requirement for through-wall tie rods and opposite-side supporting frames. All lateral pressure of fresh concrete is transferred to hardened concrete via anchor assemblies and triangular support brackets.

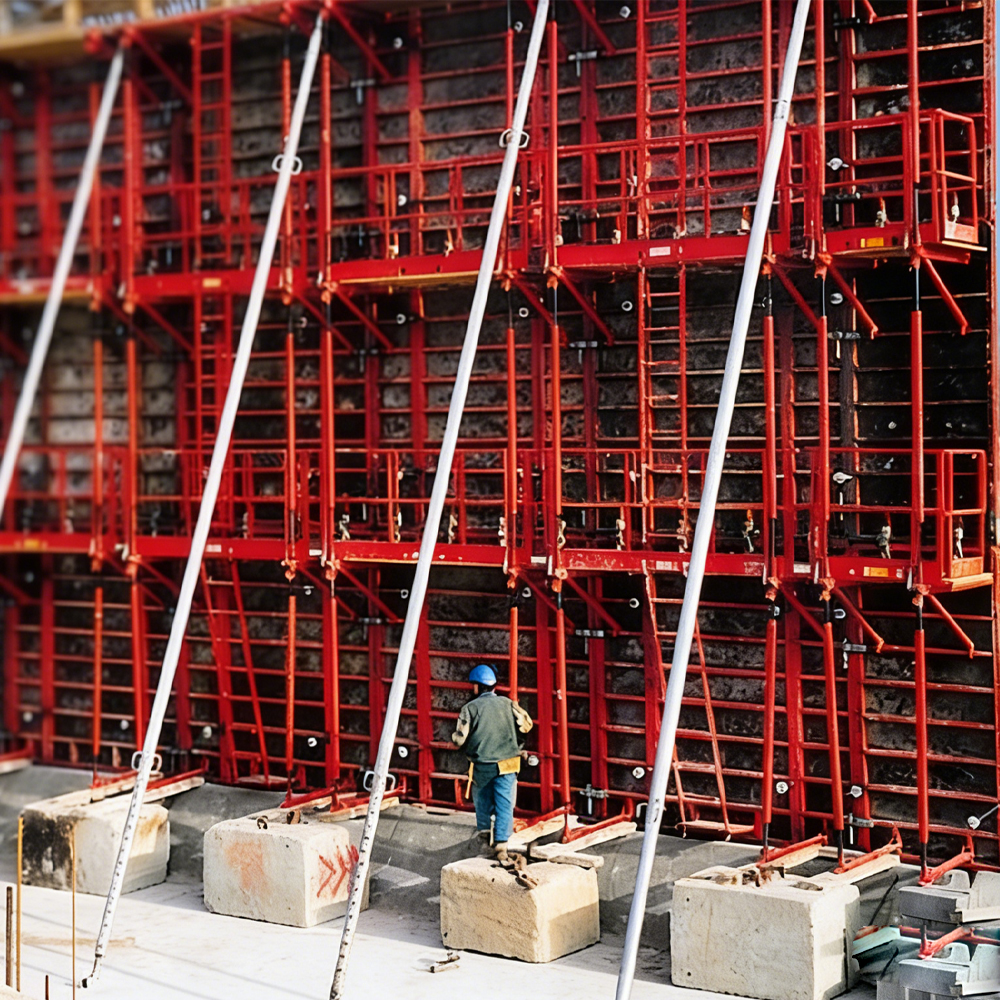

The robust steel frame structure safely bears concrete lateral pressure up to 50 kN/m². The maximum one-time pouring height reaches 4.5 meters. After demolding, concrete flatness error is controlled within ±2 mm, cutting secondary plastering workload by over 35%. Equipped with enclosed multi-layer working platforms, it meets safety requirements for high-altitude operations with platform live load capacity of 1.5 kN/m².
The whole set can climb integrally by crane or hydraulic device. Compared with conventional temporary support solutions, construction efficiency improves by roughly 30%. Standardized modular components support flexible splicing to match various wall heights and thicknesses. Properly maintained steel brackets achieve over 200 reuse cycles. Damaged parts can be replaced individually rather than discarding the whole unit.
Suitable for subway projects, water conservancy facilities and deep foundation pit protection works, this single side climbing formwork minimizes material consumption and labor input. It delivers outstanding safety, construction quality and long-term economic benefits for contractors worldwide.
