ZM-CW26
Zeemo

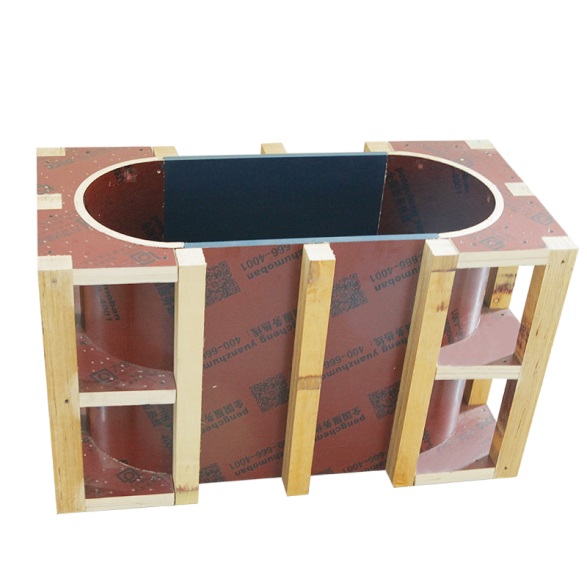

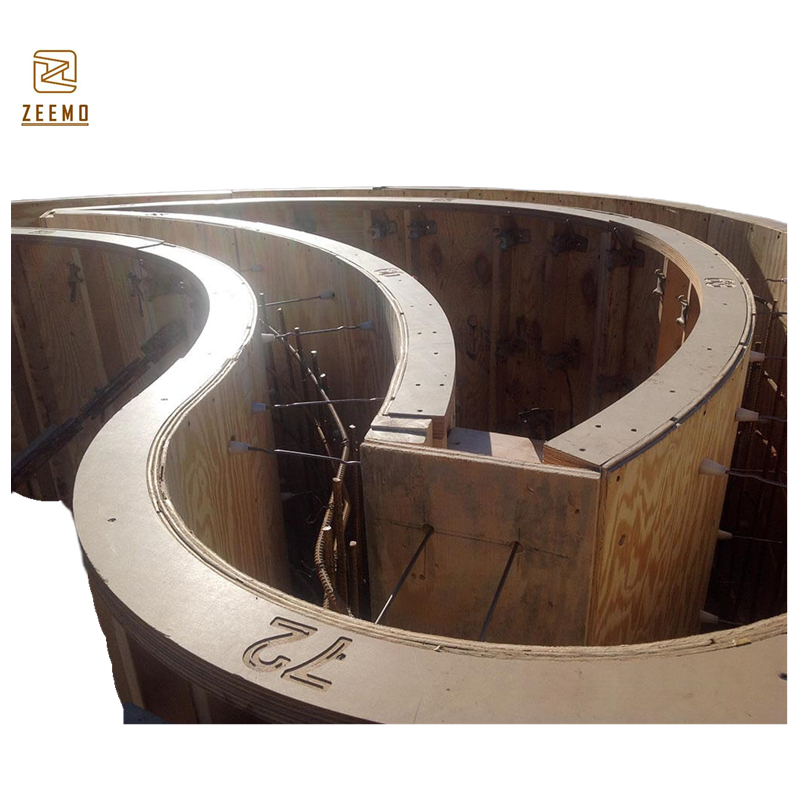

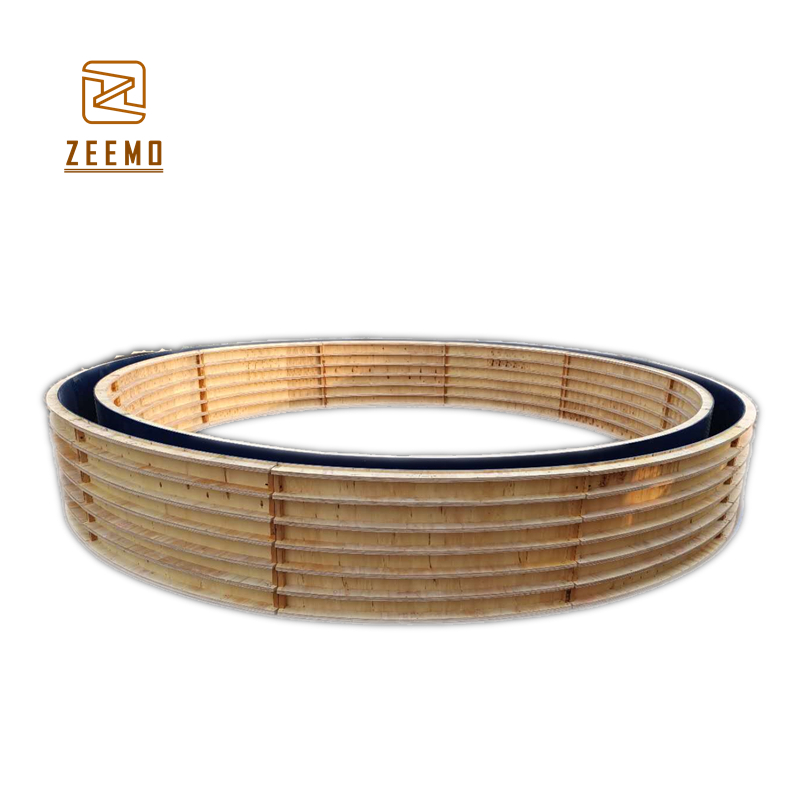

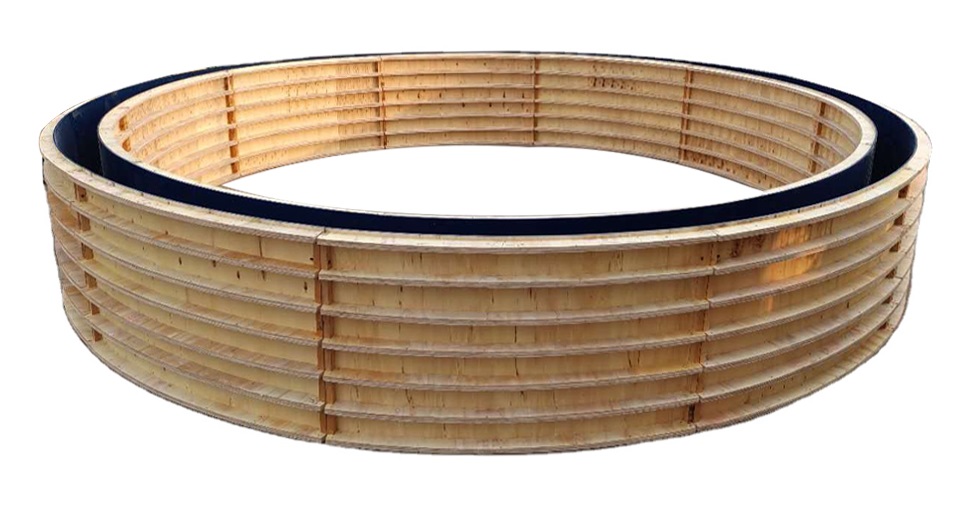

ZEEMO Tank Formwork is a lightweight concrete formwork solution engineered for tank structures, curved walls and special-shaped concrete construction. The system uses high-grade PP coated plywood and LVL, rapid installation and easy cleaning.
Compared with traditional steel formwork, this system is significantly save cost, lighter, faster to install and easier to dismantle — while delivering a smooth, high-quality concrete finish.
Significantly easier handling compared with traditional steel formwork systems.
Components join with fasteners, then are supported with props for rapid assembly.
The plastic-coated surface can be cleaned with water — no harsh chemicals required.
Achieves a clean, even concrete finish with minimal surface rework required.
| Parameter | Specification / Tested Value |
|---|---|
| Material | PP coated plywood and LVL beam |
| Weight | 20 kg / m² |
| Single Panel Dimensions | 1.22 × 2.44 m |
| Panel Thickness | 15 / 18 mm |
| LVL Beam Size | 40 × 100 mm |
| LVL Beam Distance | 200 mm |
| Bonding Quality | 0.72 N/mm² |
| Bending Strength – Longitudinal Grain | 50.0 N/mm² |
| Bending Strength – Cross Grain | 40.2 N/mm² |
| Elasticity in Bending – Longitudinal Grain | 5137 N/mm² |
| Elasticity in Bending – Cross Grain | 3519 N/mm² |
| Bearing Concrete Pressure | 70 kN |

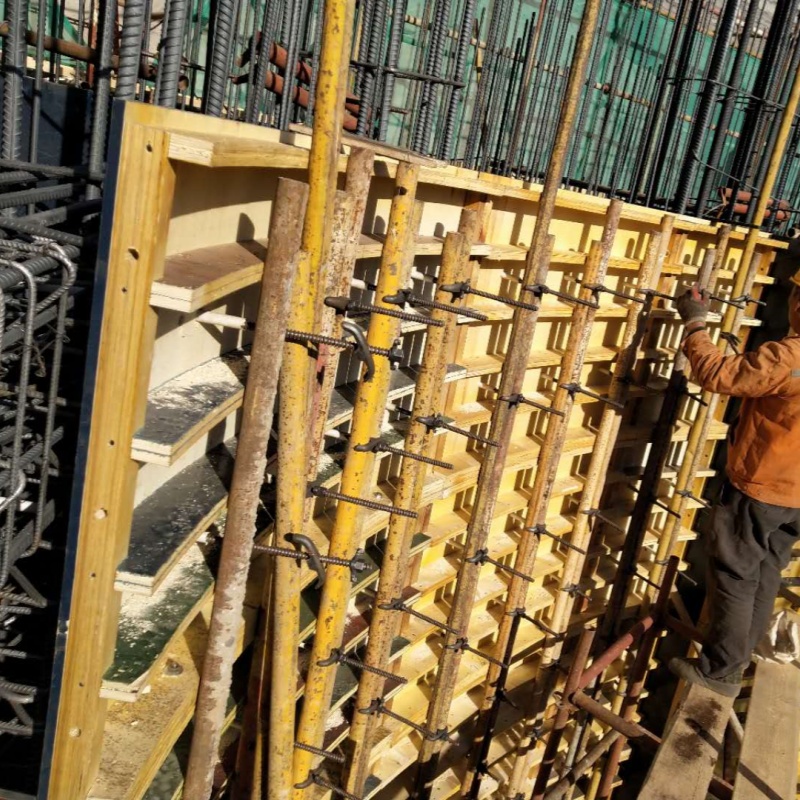

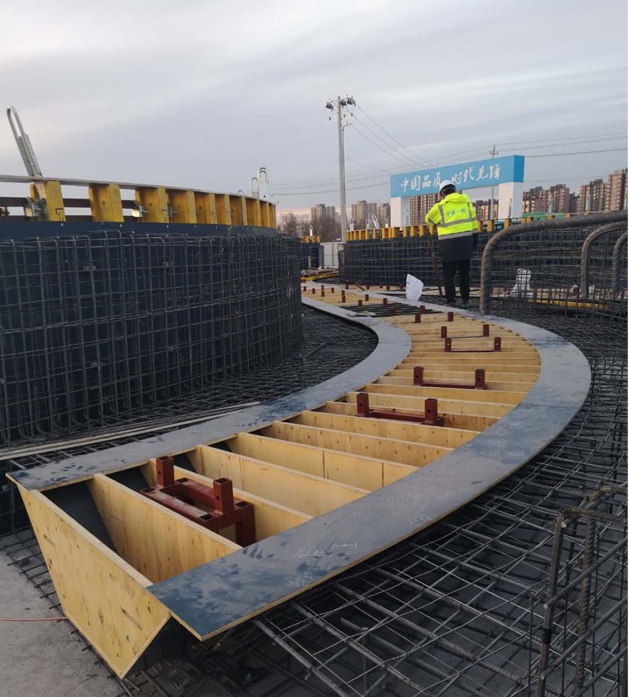

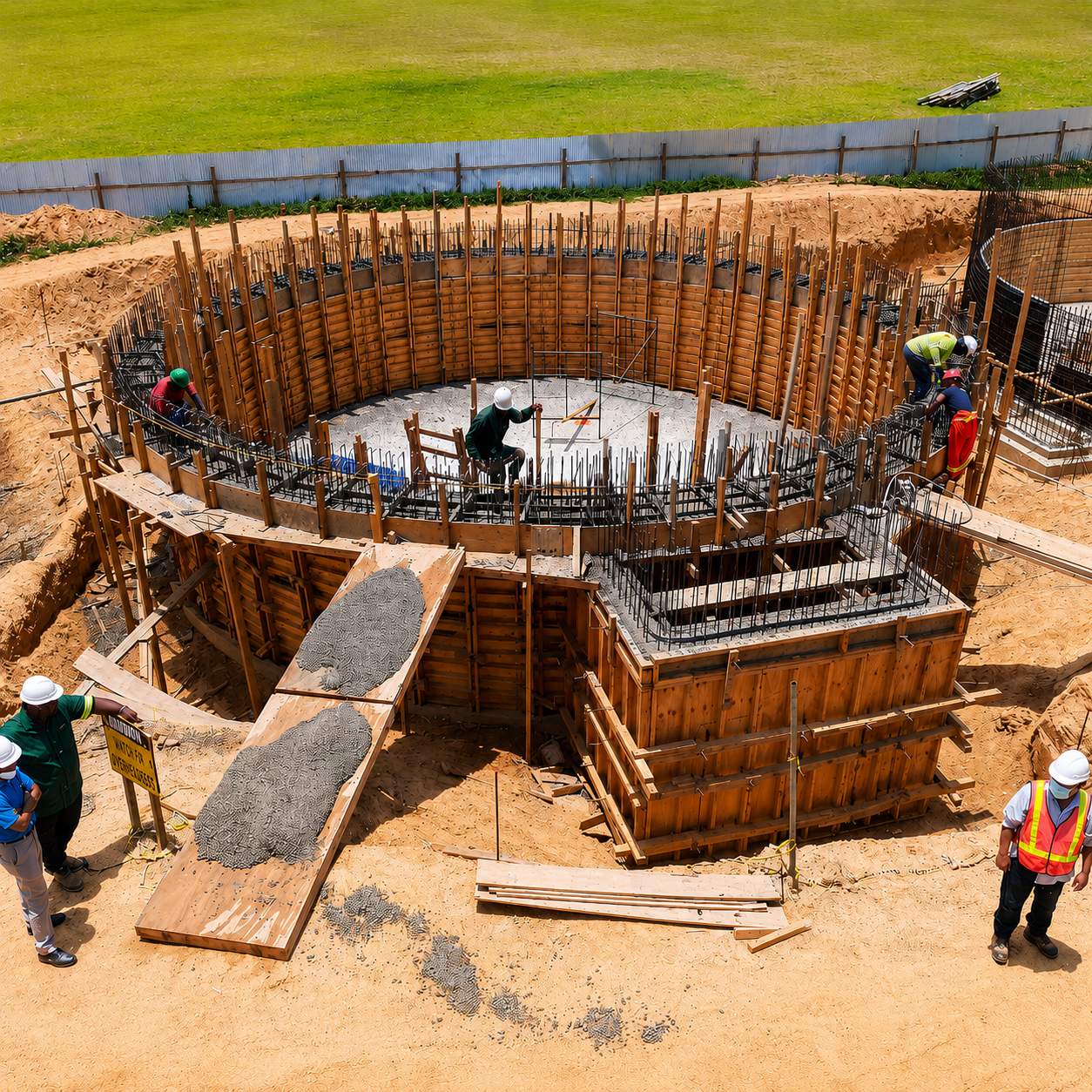

Watch the installation process and on-site application of ZEEMO Tank Formwork.
SHANDONG ZEEMO CONSTRUCTION TECHNOLOGY CO., LTD. specializes in construction formwork solutions for concrete construction projects worldwide.
ZEEMO provides comprehensive formwork solutions for walls, columns, slab, tanks, and other concrete applications, backed by technical expertise and international project experience.
Our team works closely with international customers, providing product information, technical support and customized formwork solutions according to specific project requirements.
Send us your structural drawing, formwork dimensions, concrete structure details and estimated quantity. ZEEMO can provide a suitable tank formwork solution, layout and quotation based on your project requirements.
