Concrete defines the modern built environment. From residential towers to bridges, dams and infrastructure works, cast-in-place concrete carries the load of everyday life — and the formwork that molds it determines both the accuracy of the structure and the efficiency of its construction. Steel formwork has long been the choice of contractors who refuse to compromise: it combines the strength of steel with the precision of engineered panels to deliver walls, columns and slabs that are true to design, pour after pour.

What Is Steel Formwork?

Steel formwork is a reusable molding system built from high-strength steel frames and smooth facing panels. Each panel is precision-welded into a rigid, dimensionally stable frame, protected by anti-corrosion surface treatment, and fitted with rapid-lock clamps so units can be joined quickly and securely on site. Connection holes and locking hardware are pre-positioned at standard spacing, so every panel mates with the next exactly — no shimming, no guesswork. The result is a complete modular system that assembles into almost any structural shape, from flat walls to circular columns, and can be stripped, cleaned and reused for hundreds of cycles.

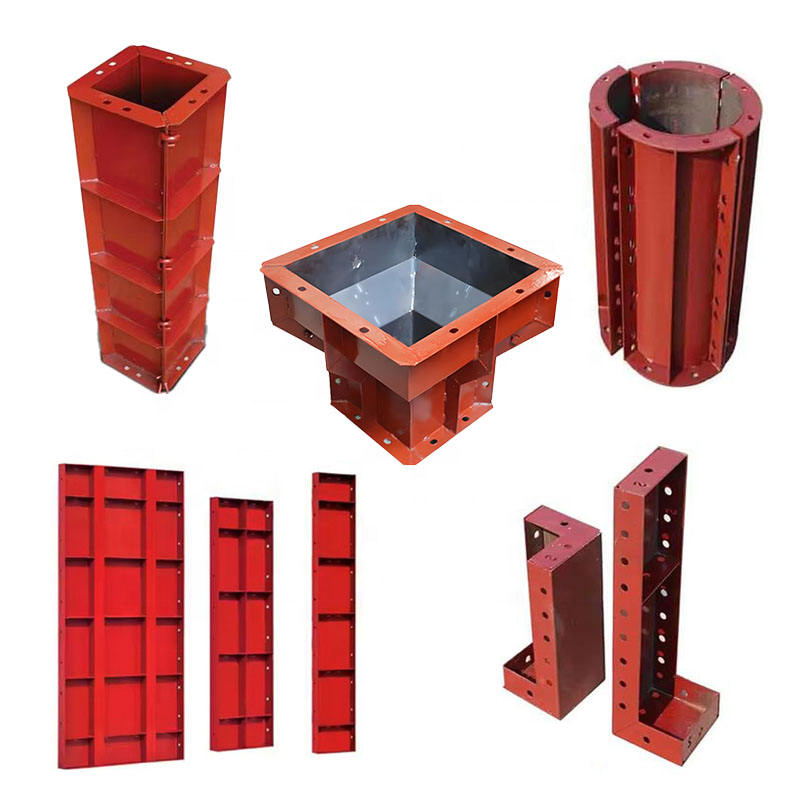

  Steel formwork panels and components

Key Advantages

Strength and durability. Steel withstands the high hydrostatic pressure of fresh concrete without deformation, holding tight tolerances under repeated loading. The rust-proof finish keeps panels accurate and serviceable for years, delivering far more turnovers than timber formwork.

Precision that saves money. Dense, gap-free panel surfaces produce smooth, even concrete faces with tight joints. In many cases no additional plastering or leveling is required, which cuts finishing labor, reduces rework and shortens project schedules.

Speed on site. Modular panels and quick-lock clamps allow fast erection and fast stripping with smaller crews and no special tools. Faster cycles mean faster floors — and faster returns.

Economical and green. Steel formwork is fully recyclable. High turnover spreads the investment across hundreds of uses, lowering the true cost per pour while reducing construction waste. And because steel does not warp or swell like timber, quality stays consistent across the entire project.

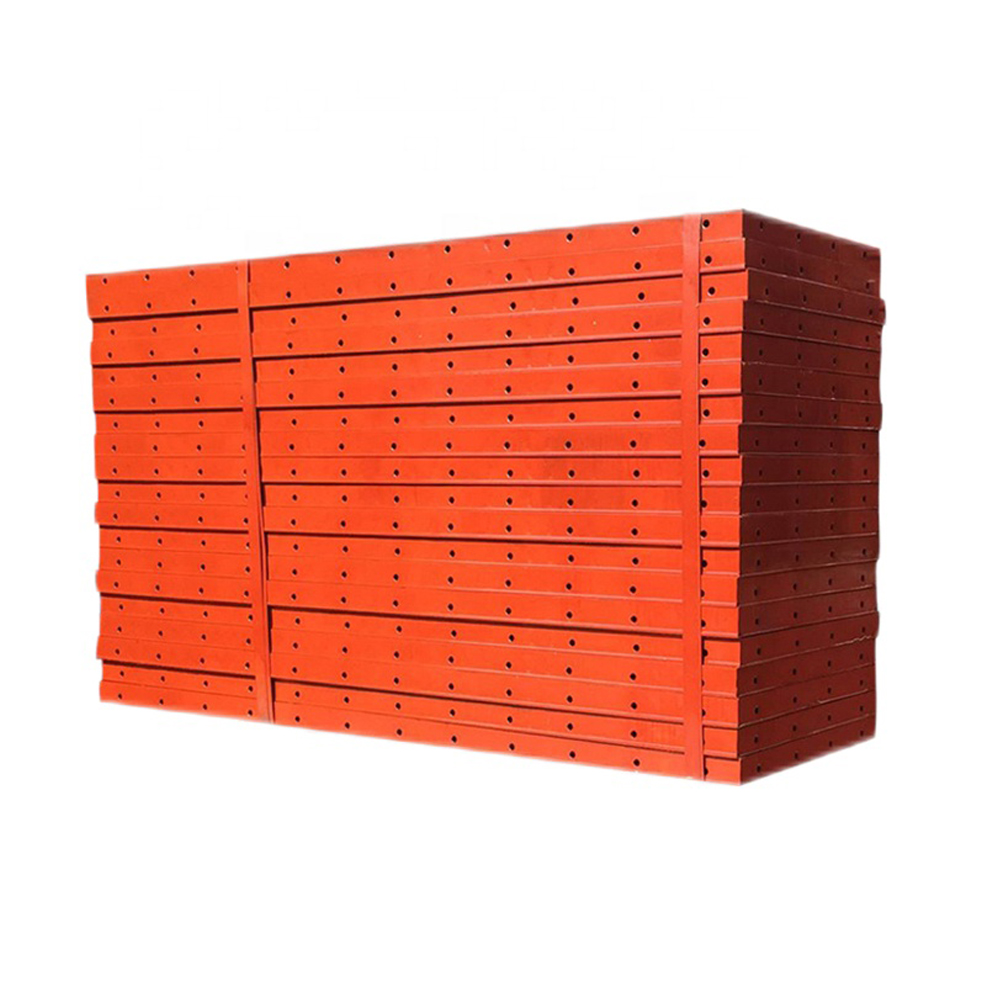

  Stacked steel formwork panels, ready for the next pour

Versatile by design. The same system adapts to walls, columns, foundations, slabs and infrastructure elements. Flat panels form walls and slabs; circular panels form columns of various diameters — with customized sizes available to match project requirements.

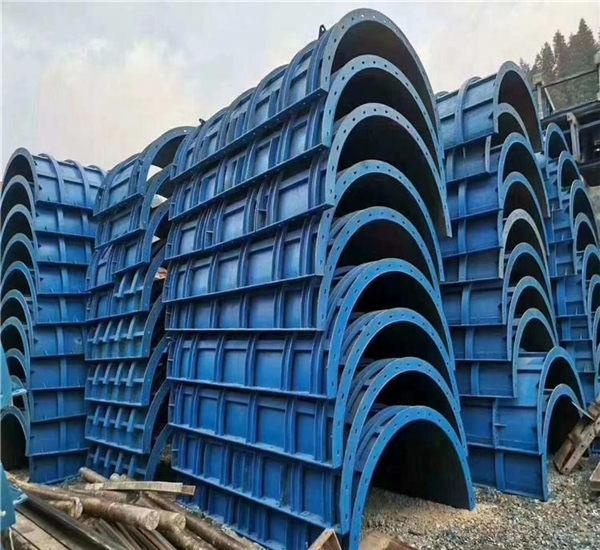

  Curved steel formwork for special structures

Specifications

The following standard sizes are available for flat and circular column formwork. Custom sizes can be manufactured to suit specific project needs.

Table 1  Flat Formwork Specifications (Customized Size Available)

Table 2  Circular Column Formwork Specifications (Customized Size Available)

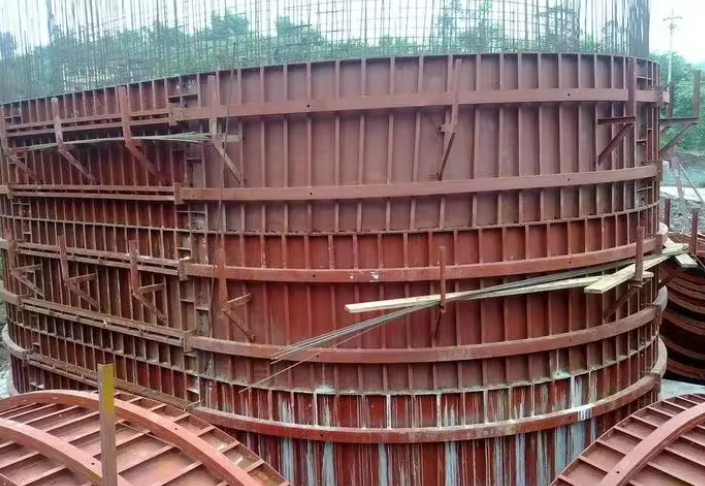

  Circular column steel formwork on a bridge site

Applications

Steel formwork proves its value across a wide range of projects: high-rise residential and commercial towers, bridges and viaducts, tunnels, industrial plants and precast facilities. In high-rise construction, repetitive floor layouts make rapid turnover especially valuable; on infrastructure sites, the system's durability stands up to tough environments and heavy reuse. Wherever concrete quality, schedule certainty and cost control matter, steel formwork delivers.

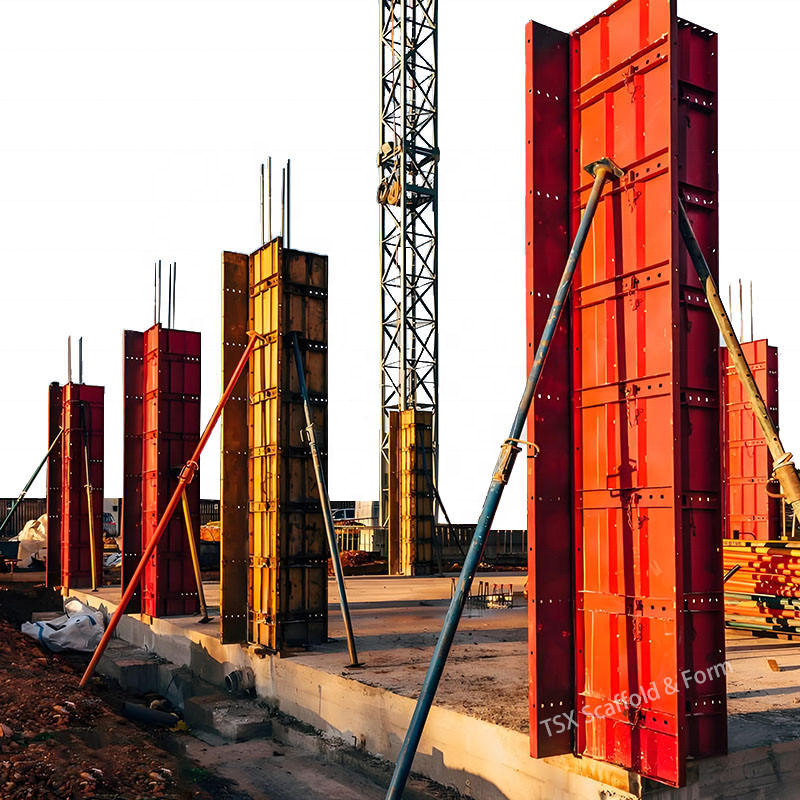

  Steel column formwork in an outdoor construction site

From the first pour to the final floor, steel formwork stands behind the structures we rely on every day. Strong, precise, reusable and adaptable — it is not just a mold for concrete, but a partner in building better.

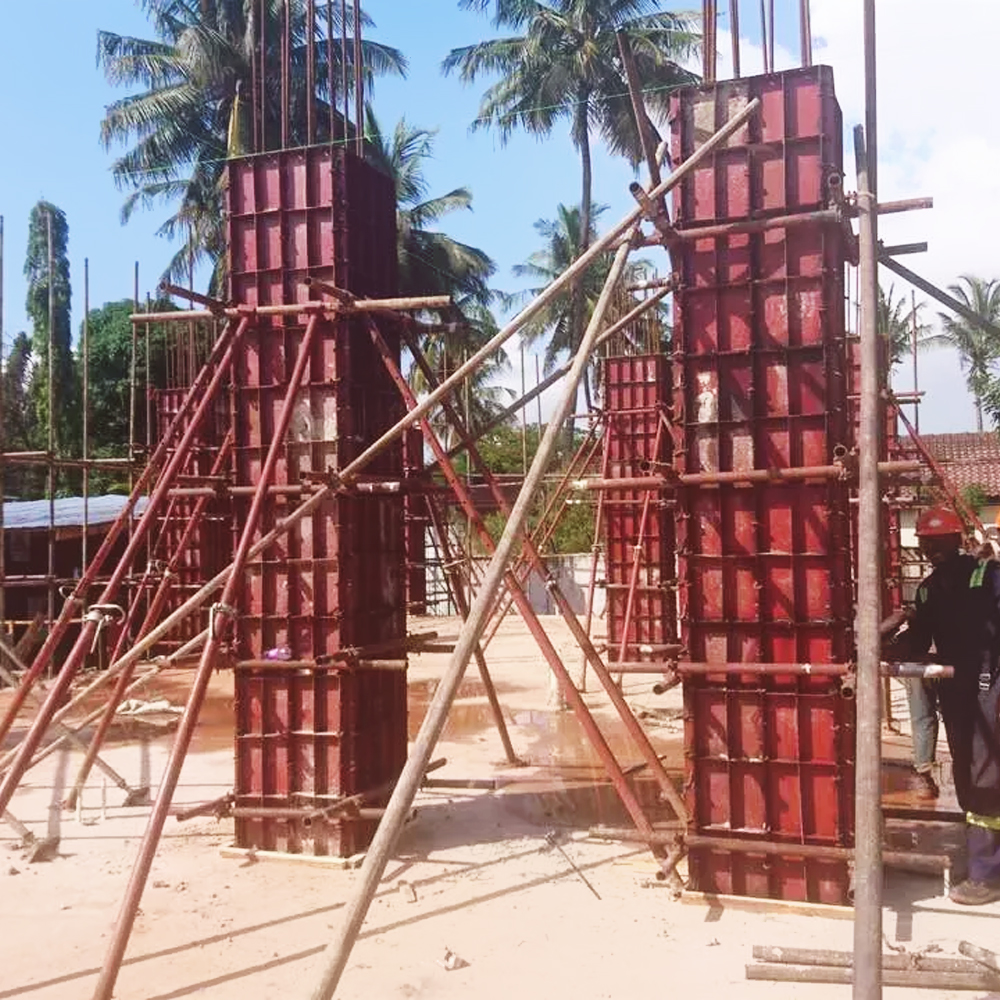

  Column formwork erected on site
