Slab construction sets the rhythm of every building project. The faster each floor is formed, cured and stripped, the sooner the building tops out, and the lower the cost of every square metre. On high-rise towers, where floors repeat dozens of times, the table form's ability to strip, move and re-erect in hours — not days — directly shortens the critical path. Table formwork was engineered for exactly this: a large, pre-assembled forming unit that moves as one piece, cycle after cycle, turning slab construction into a fast, repeatable process.
A table form is a pre-assembled forming unit that combines a smooth panel surface, a framework of timber H20 beams and steel girders, and integrated steel props with bracing. The whole unit is built and aligned on the ground, then lifted into position for concreting. After the slab gains strength, the table is stripped, lowered and moved to the next bay or the next floor — all in one piece, with no dismantling and rebuilding on site. The modular design also allows tables of different widths and lengths to be combined, so each bay is covered with the minimum number of units and maximum continuity of panel surface.

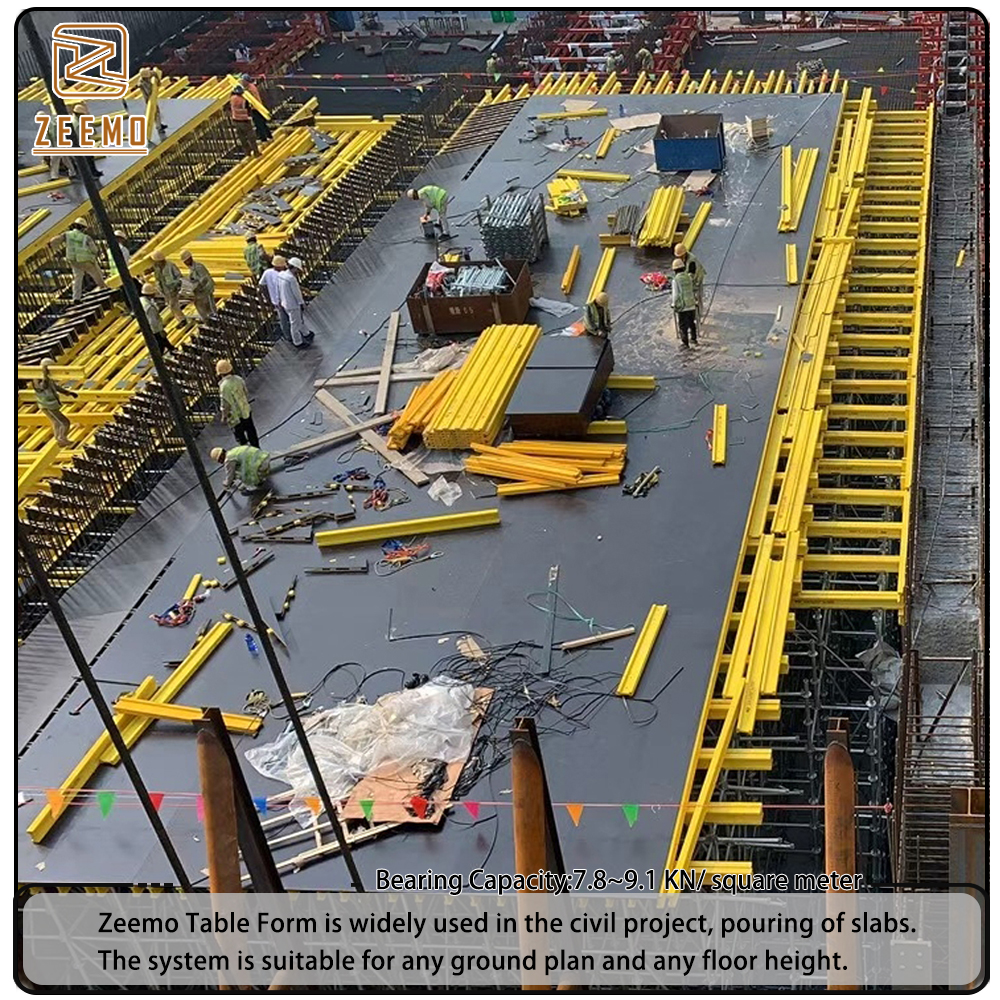

Table formwork in action on a slab construction site
Speed. Because the entire table is pre-assembled and crane-handled as a single unit, erection and stripping take a fraction of the time required by traditional loose-piece formwork. A single table can be repositioned with the tower crane in minutes, keeping the concreting gang continuously supplied. Less time per floor means faster cycles and a shorter overall programme.

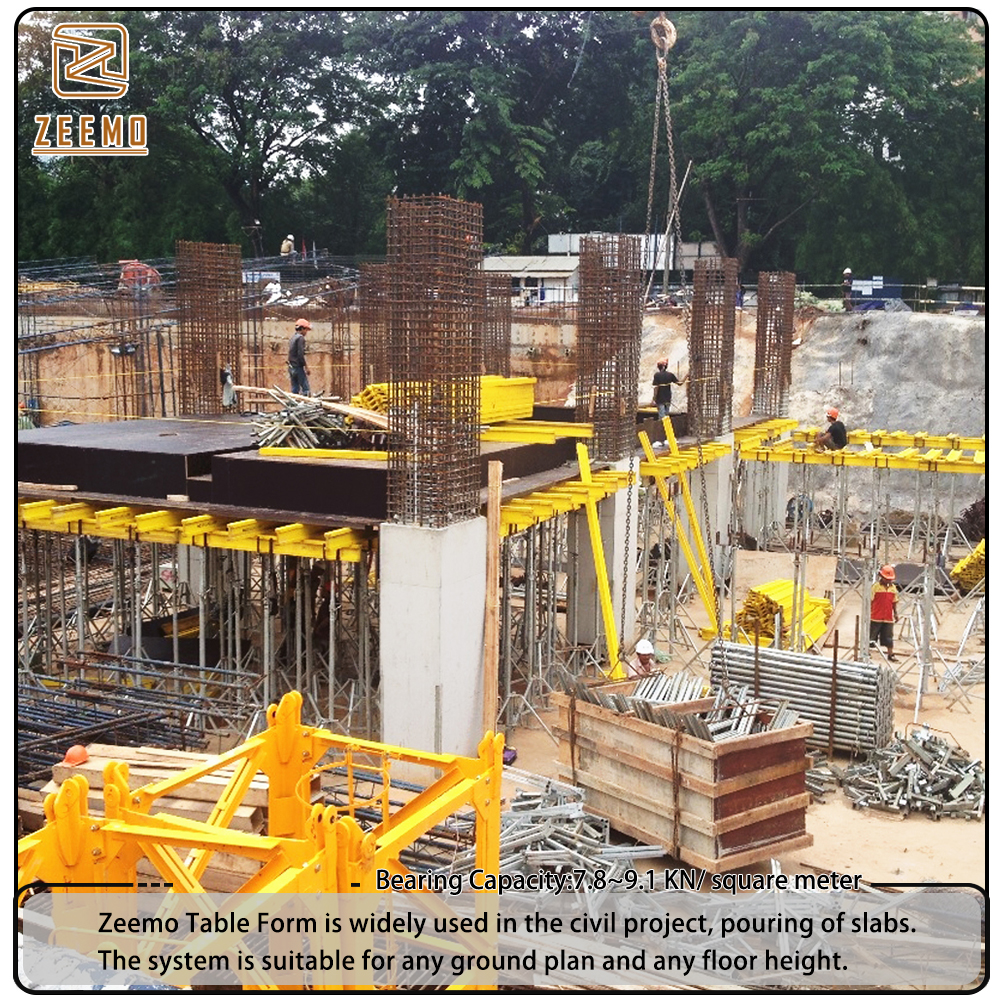

Crews working on a table form platform
Strength you can rely on. The system delivers a bearing capacity of 7.8–9.1 kN/m², providing stable, dependable support for fresh concrete during slab pours. Rigid steel frames and properly spaced props transfer loads evenly to the floor below, protecting both the fresh slab and the supporting structure.
Labour and safety. Pre-assembly on the ground reduces work at height, and the integrated platform gives crews a secure working surface. Fewer loose components and fewer man-hours translate into a safer, leaner site.
Versatility. The table form adapts to any ground plan and any floor height. Panels and beams combine in flexible layouts, so the same system serves different buildings, different bays and different geometries without dedicated engineering for every floor.

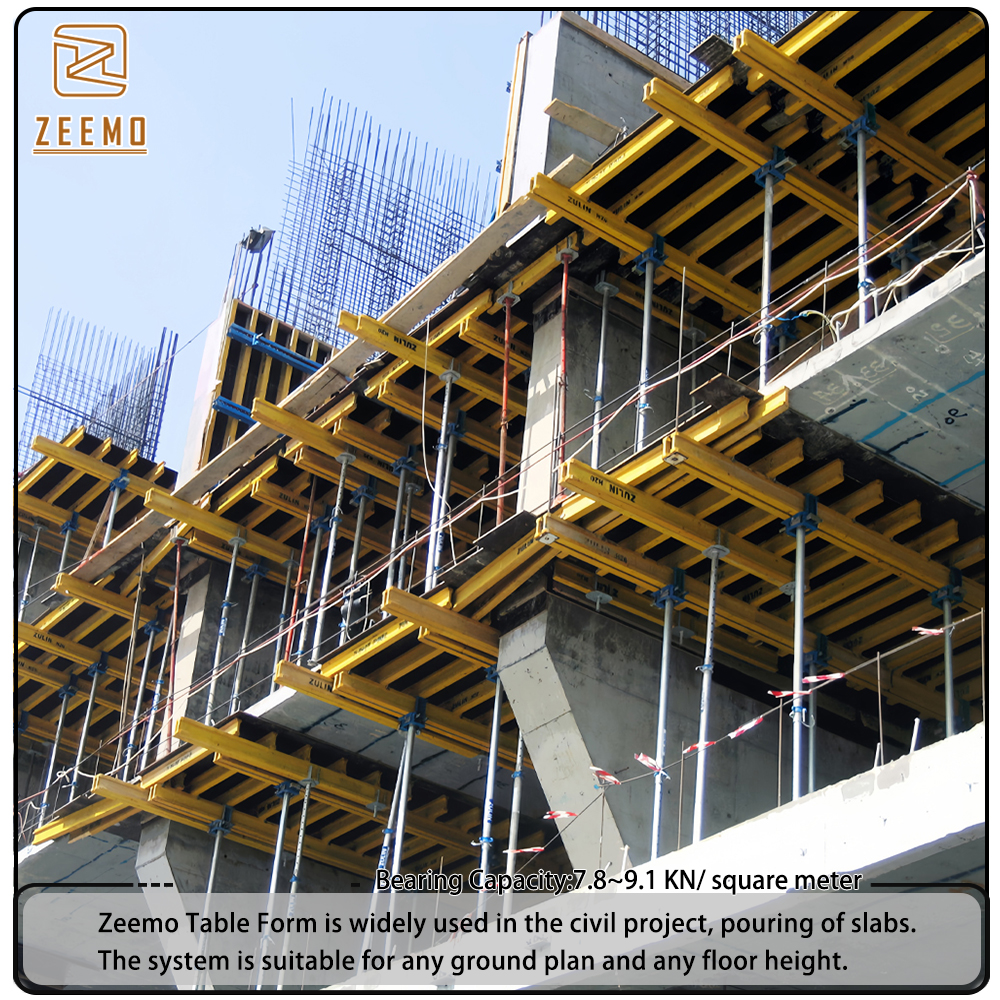

Table form system assembled with timber beams and steel supports
The table form system is available in the following standard dimensions and performance ranges.
Table 1 Table Form Standard Dimensions
Parameter | Value |
Length | 3300–5000 mm |
Width | 2440–3600 mm |
Thickness | 250–300 mm |
Table 2 Performance and Application
Item | Value |
Bearing capacity | 7.8–9.1 kN/m² |
Typical application | Civil projects, pouring of slabs |
Adaptability | Any ground plan, any floor height |

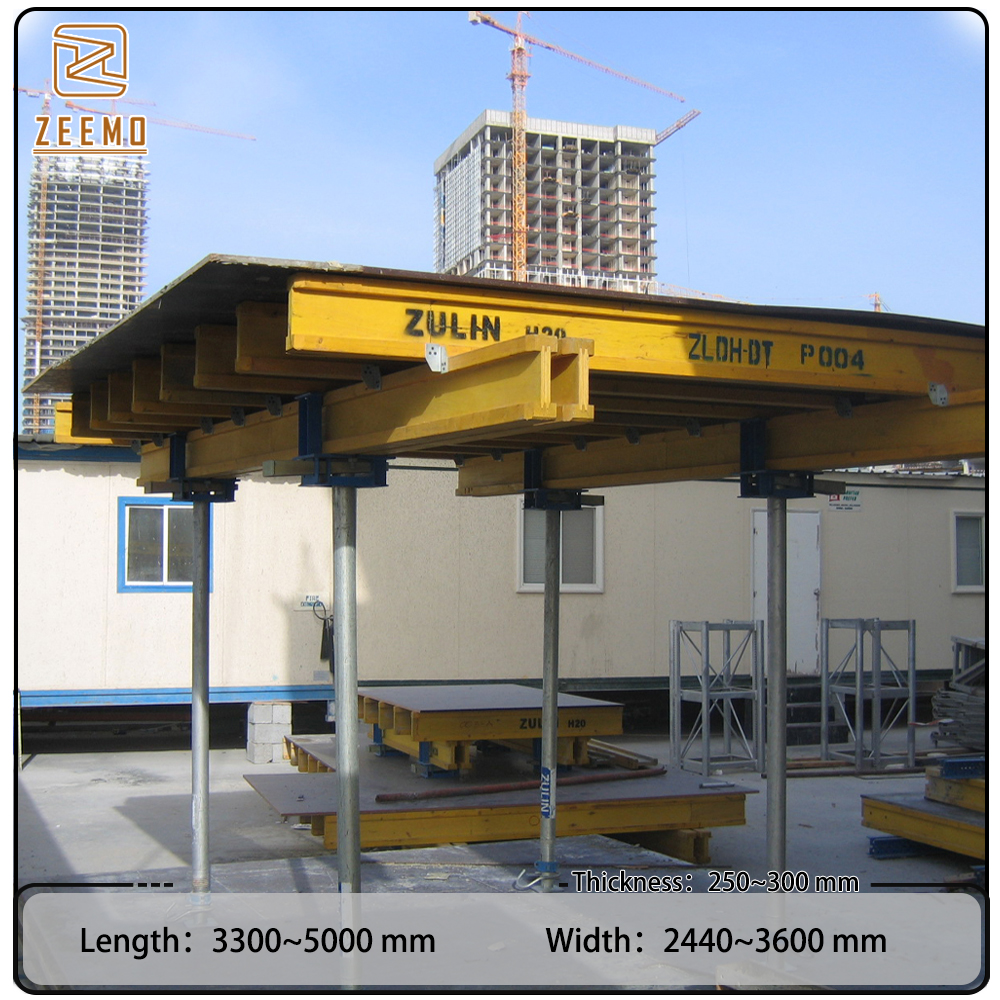

Table form dimensions — length, width and thickness
Table formwork is widely used in civil projects for slab pouring — from high-rise residential and commercial towers to parking structures, industrial buildings and infrastructure works. On repetitive floor layouts its value is greatest: the same tables rotate from floor to floor, delivering consistent quality and predictable progress week after week. The system also suits projects with large open-plan areas, where long uninterrupted tables minimise joints and speed up concrete placing.

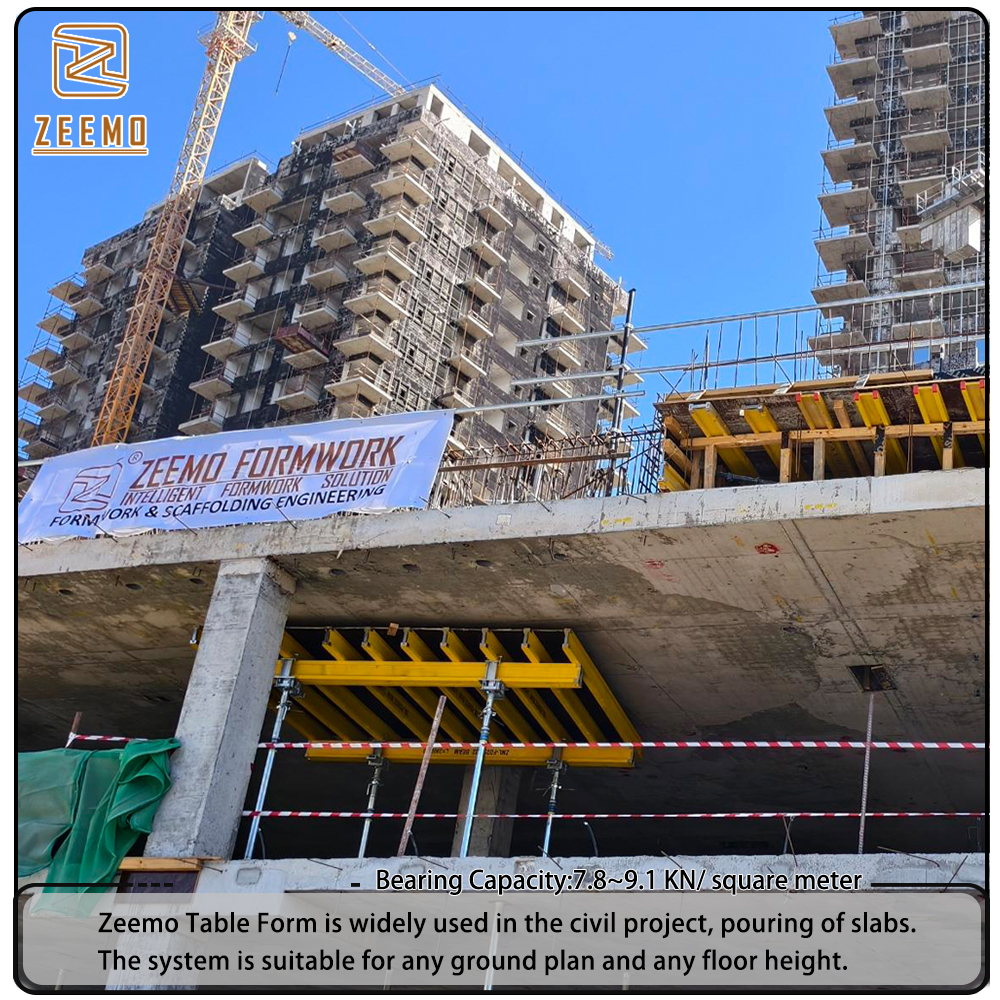

Table formwork on a high-rise construction site
When every day on the critical path counts, table formwork puts speed, strength and simplicity on your side. Pre-assembled, reusable and adaptable — it is the system that keeps slab construction moving.

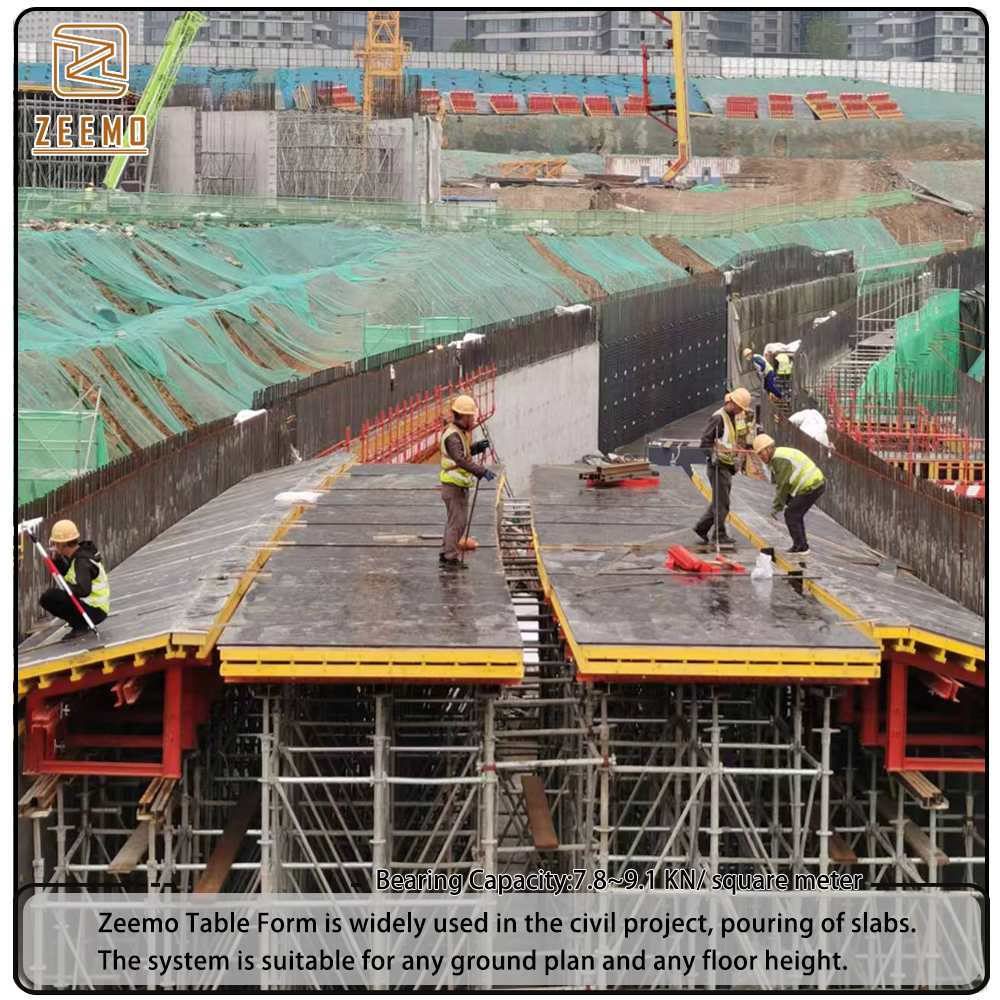

Slab pouring with table formwork systems
