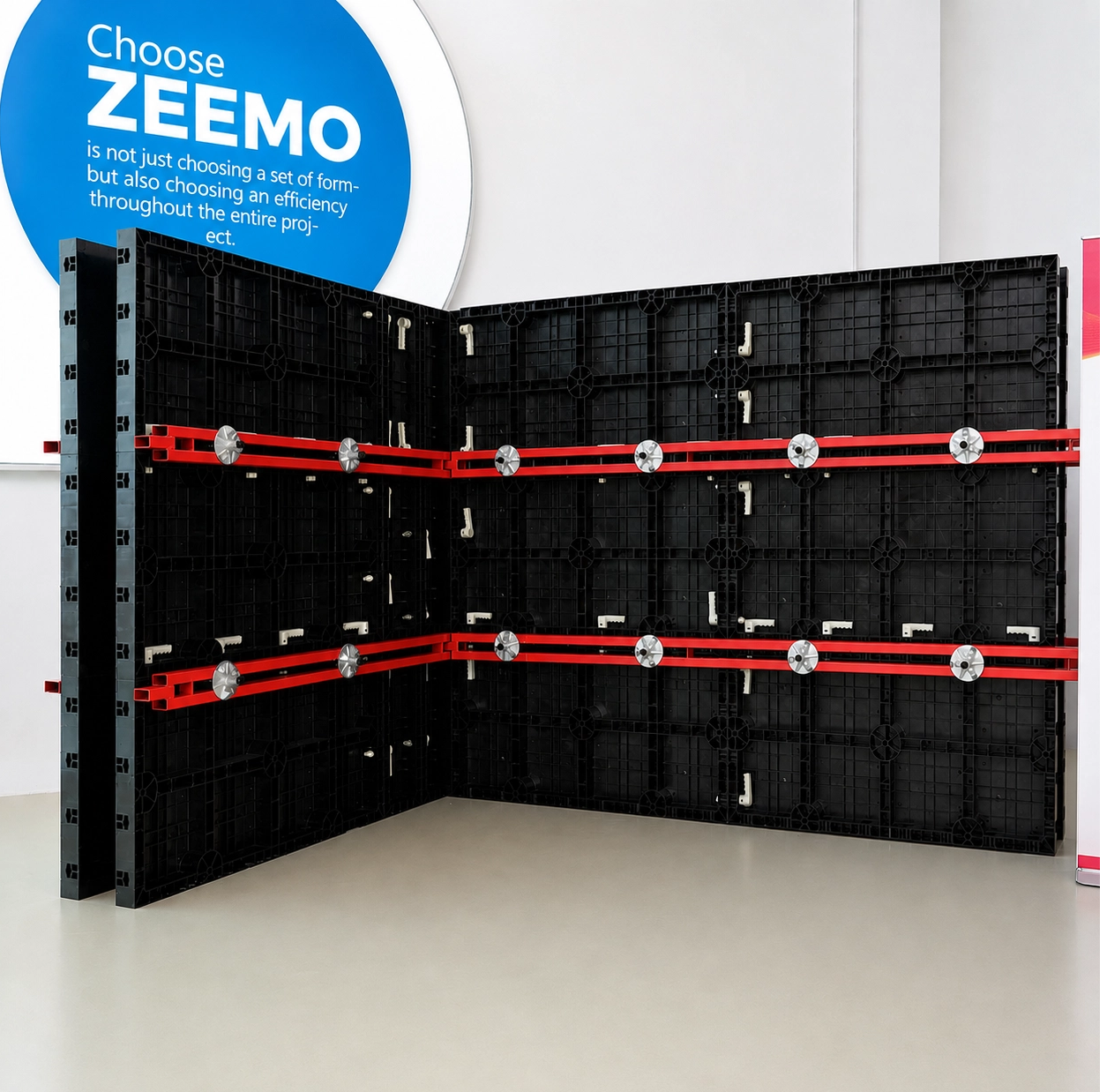

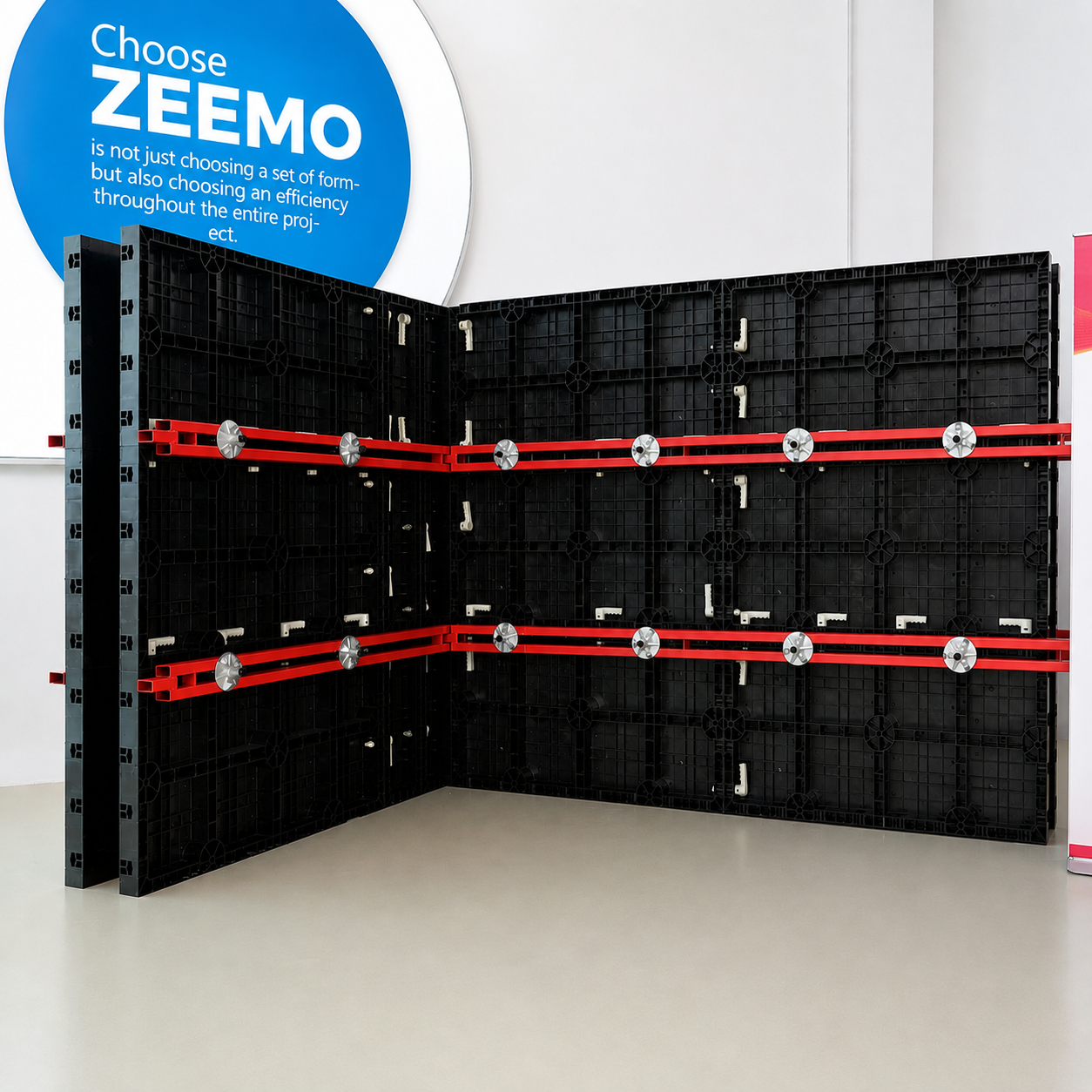

ZEEMO ABS Plastic Modular Formwork is a reusable concrete formwork system designed for fast, flexible and cost-effective construction. The modular panels can be assembled manually, cleaned easily and reused on multiple concrete projects.
Compared with traditional timber formwork and heavy steel formwork, ABS modular formwork provides an excellent balance of low weight, high reusability, fast installation and easy handling.
ABS panels are significantly easier to carry and position manually than many traditional steel formwork systems, reducing dependence on lifting equipment.
Properly operated ABS formwork can be reused many times, helping reduce formwork consumption and long-term project costs.
Modular panels and mechanical connectors allow rapid assembly and disassembly, helping improve daily construction efficiency.
The ABS surface is waterproof and easy to clean. Concrete residue can be removed efficiently with water and appropriate cleaning tools.
| Comparison | ABS Plastic Modular Formwork | Timber Formwork | Steel Formwork |
|---|---|---|---|
| Main Material | Engineering ABS Plastic | Timber / Plywood | Steel |
| Panel Weight | Lightweight | Medium | Heavy |
| Handling | Mainly Manual | Mainly Manual | Often Requires Lifting Equipment |
| Reusability | 100+ | 5-8 times | 100+ |
| Construction Speed | Fast | Medium | Medium to Fast |
| Assembly Method | Modular Connectors | Nails / Screws / Timber Framing | Clamps / Bolts / Ties |
| Waterproof | Excellent | Limited | Excellent |
| Cleaning | Easy | More Difficult | Easy to Medium |
| Concrete Surface | Smooth and Uniform | Depends on Plywood Condition | Smooth |
| Concrete Pressure Capacity | Project / System Specific | Project / System Specific | Project / System Specific |
| Long-Term Cost | Competitive | Low Initial Cost | Higher Initial Investment |
Note: Comparison values are general industry references. Final selection should be based on engineering calculations and the specifications of the actual formwork system.
Lightweight ABS modular panels can be handled by workers without relying heavily on cranes or other lifting equipment. This is particularly useful for villas, residential buildings, renovation projects and sites with limited access.
Modular connection points simplify installation and dismantling. Contractors can quickly assemble panels according to the required wall or structural dimensions, helping reduce formwork preparation time.
Unlike disposable timber formwork, reusable ABS panels can be cleaned and stored after stripping. Proper maintenance can extend service life and improve overall formwork economics.
ZEEMO ABS plastic formwork can be configured for a wide range of concrete structures.
Configure panels according to the concrete structure.
Connect modular panels and accessories.
Check alignment, dimensions and structural support.
Complete concrete pouring according to the approved design.
Strip, clean, inspect and prepare panels for reuse.
Yes. ABS modular formwork is designed as a reusable system. The actual number of reuse cycles depends on handling, stripping, cleaning, storage and project conditions.
ABS plastic is resistant to water and moisture, making the system suitable for construction environments where conventional timber formwork may be affected by moisture.
Many modular ABS panels are designed for manual handling. The exact installation method depends on panel size, concrete pressure and the engineering requirements of the project.

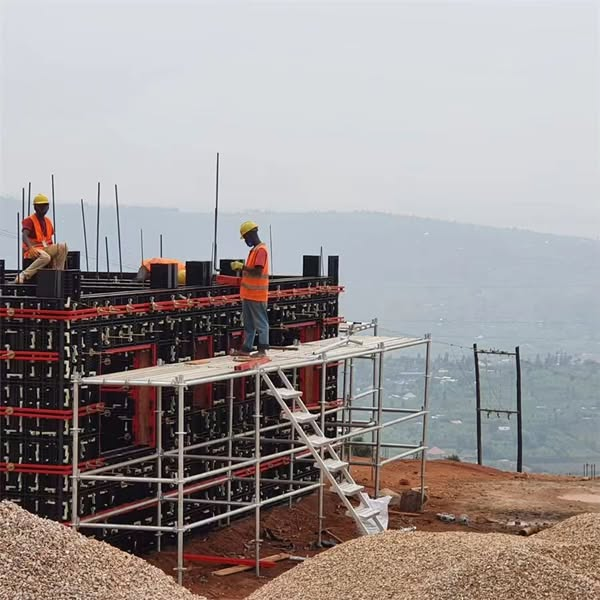

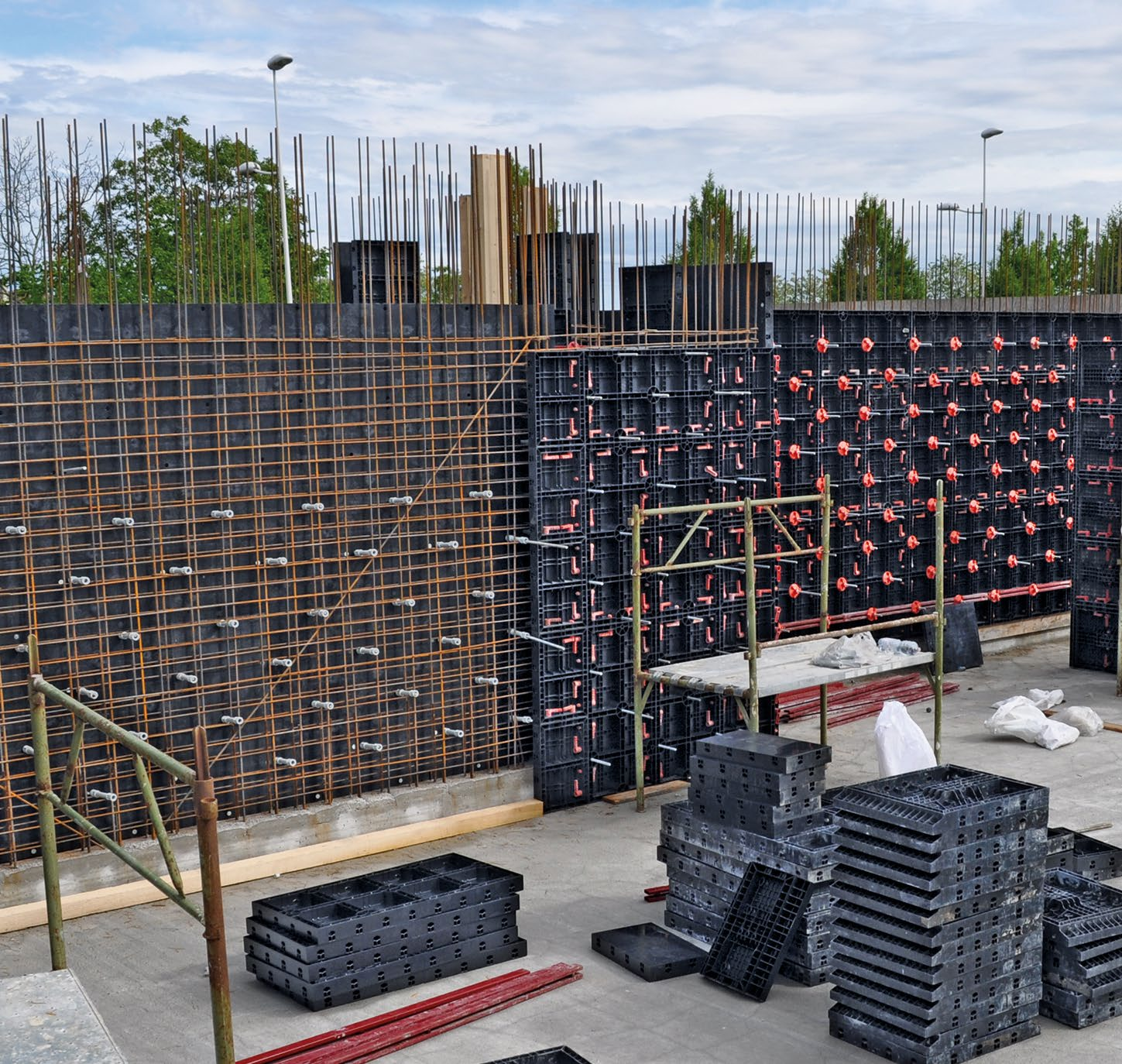

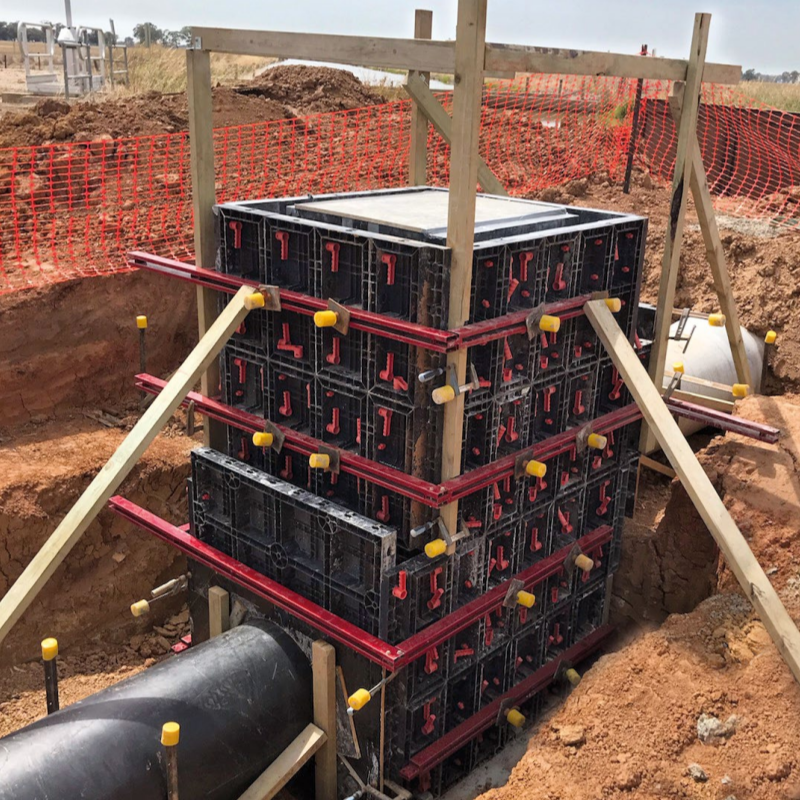

Depending on the system configuration, ABS modular formwork can be used for concrete walls, columns, foundations, villas, residential buildings and other compatible structures.
ZEEMO can provide formwork solutions based on project drawings and structural dimensions. Contact our technical team with your project drawings for a customized solution.
Looking for a lightweight and reusable alternative to timber and traditional steel formwork? Send us your project drawings and requirements. ZEEMO can help you select the right modular formwork configuration for your project.
