Zeemo Automatic Climbing Formwork For High Rise Building

  • Numbers of platform:4-6
  • Climbing Speed: 6 meters per hour
  • Width of main Platform: 2.8meters
Availability:
Quantity:
Inquire Add to Basket

  • ZM-SHASCF

  • ZEEMO

Products Display
PRODUCT PARAMETERS
Product Name
Self Climbing Formwork
Model
ZHC-02
Working Pressure of Hydraulic System
100KN
Number of Platform
4-6
Height of Bracket
12-17 meters
Height of Climbing Per Time
2.7-4.8 meters
Climbing Speed
6 meters/ hour
Width of the Main Platform
2.8 meters

Zeemo High Rise Building Construction Hydraulic Self Climbing

Formwork

 The power of the auto-climbing formwork comes from the hydraulic system which includes pump station,hydraulic cylinder and oil pipe. The hydraulic system can control the climbing of the climbing rail and bracket. As a result, the steel rail and the bracket can inter-climb with the hydraulic system and the whole system will climb up steadily. cranes are not needed during the construction.

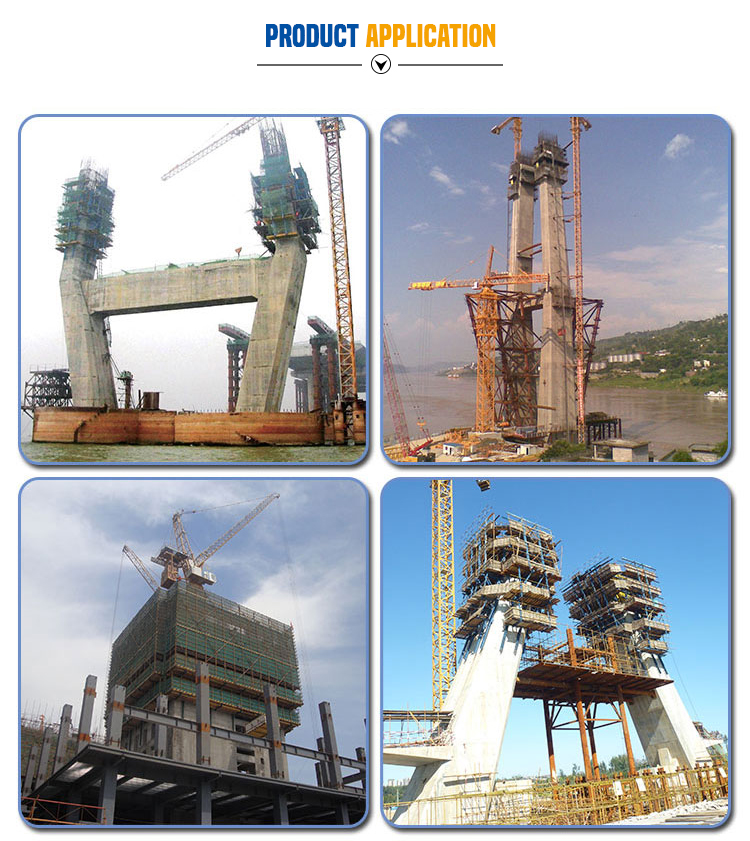

 It is easy to operate, highly efficient and safe. It can climb both vertically and slantwise, therefore it is the best choice for the construction of high rise building and bridges.
Specification

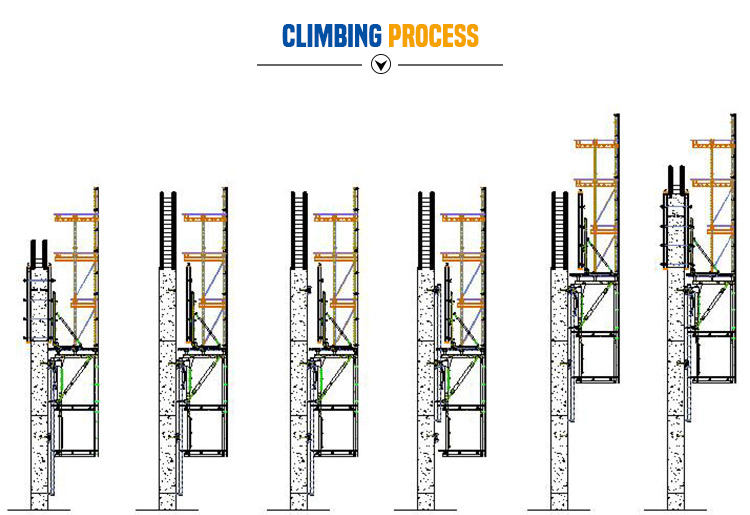

Climbing Process

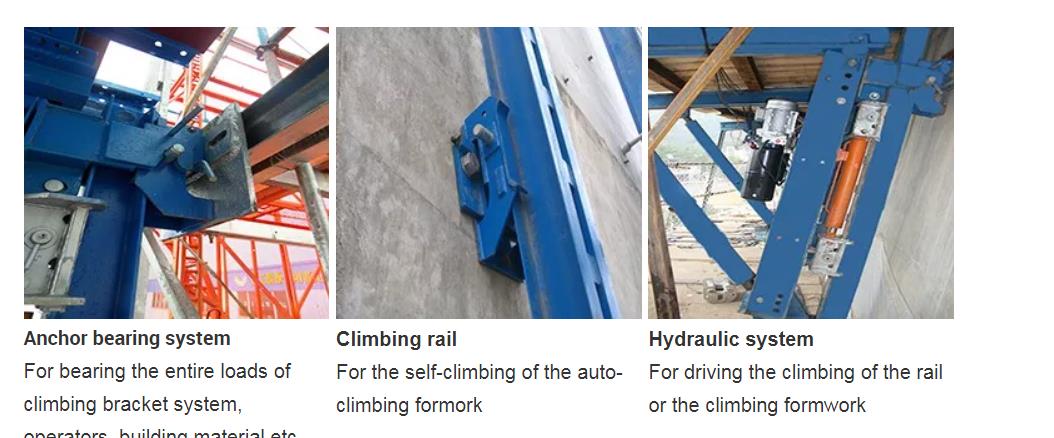

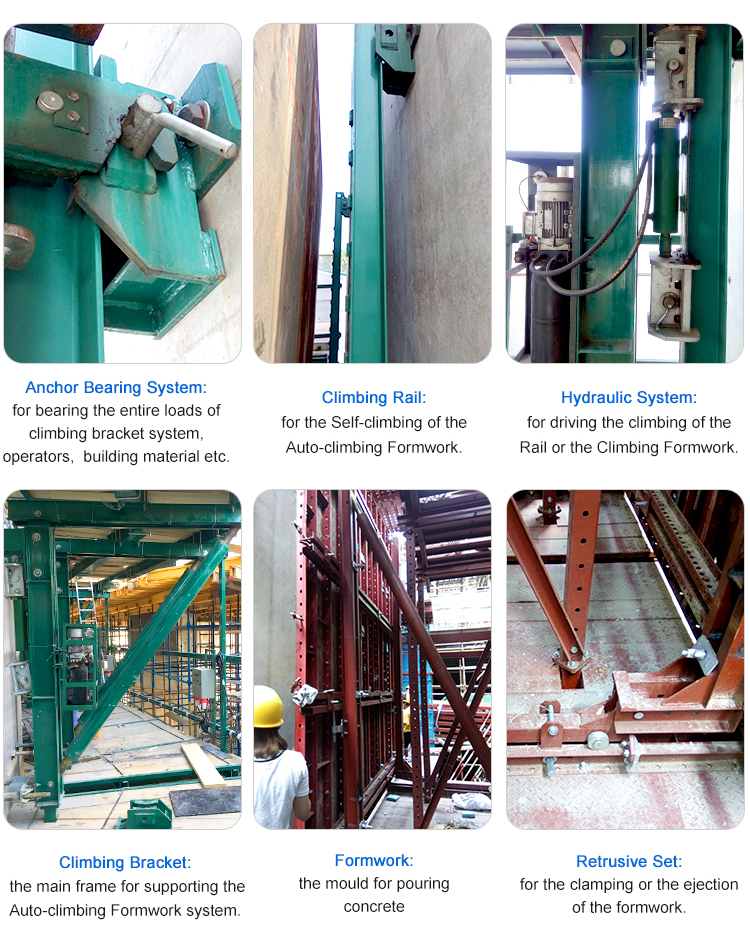

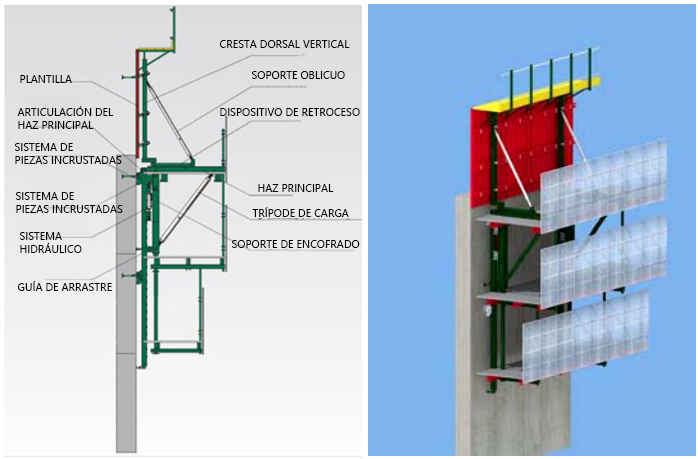

Major Components

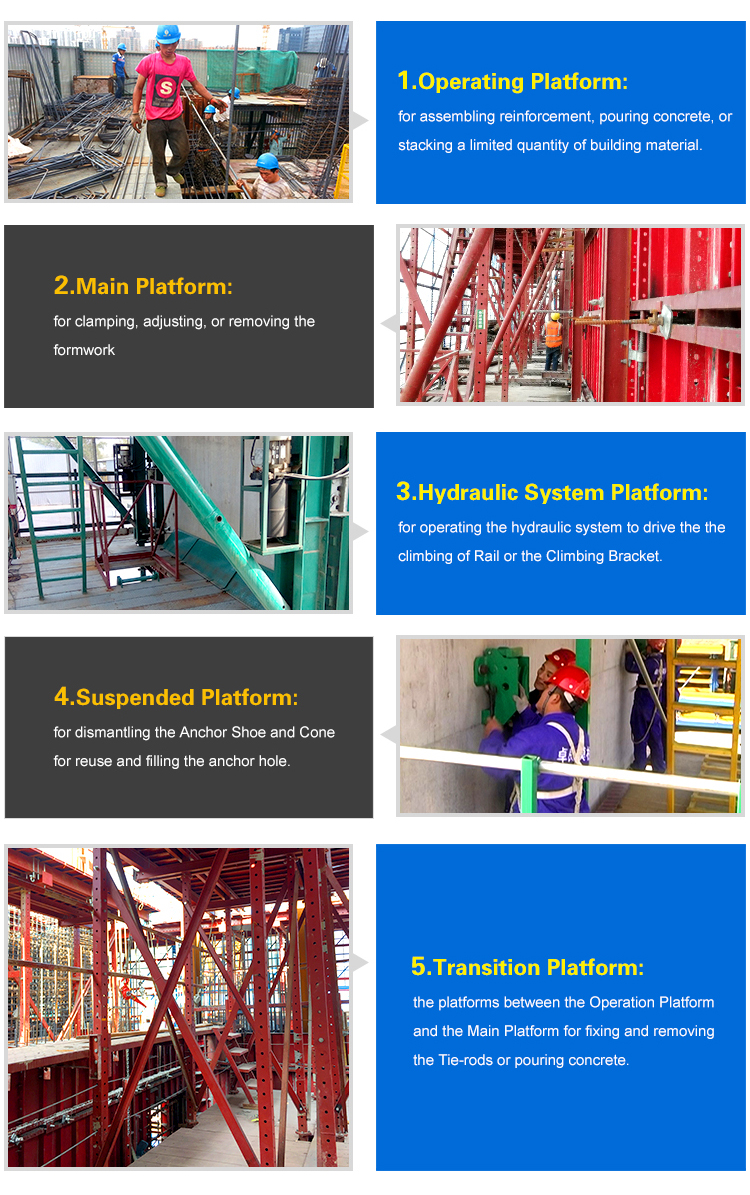

Self Climbing Formwork Platforms

Advantage

1. The formwork system can climb both vertically and slantwise fast.
2. The system can climb integrally or separately.The climbing process is steady, synchronous and safe.
3. The formwork will not be dismantled until the construction is finished, the filed will be saved and the hazard of formworks' breakage will be greatly reduced.
4. The system will furnish all-round platforms and additional platform is not needed.
5. The auto-climbing formwork can climb by itself and cleaning work can be done in situ. The use of tower crane will be greatly reduced.
