ABS plastic formwork is used in concrete construction where lightweight panels, repeated use and quick assembly are important. However, not every system suits every project. Before choosing a modular plastic formwork system, contractors should check the panel sizes, connection method, concrete pressure requirements and expected number of uses.
This guide covers the main points to consider when selecting ABS plastic formwork for walls, columns and other concrete structures.
ABS plastic formwork is a reusable formwork system made from acrylonitrile butadiene styrene (ABS). The panels are assembled to create a mold that holds fresh concrete in the required shape until it has gained sufficient strength.
Unlike conventional timber formwork, a modular system uses panels and matching connectors designed to work together. This makes it suitable for projects where similar concrete elements are cast repeatedly.
Depending on the system design, ABS plastic formwork can be used for concrete walls, columns, foundations and other compatible structural elements. The available sizes and configurations should always be checked against the project drawings.
Plastic panels can be easier to carry and position than many heavy steel formwork components. This is useful on projects with limited lifting equipment or restricted access. Actual handling requirements depend on the weight and dimensions of each panel.
Standardized panels and matching connectors help crews assemble repeatable wall and column layouts. Before ordering, check how corners, joints, ties and other accessories fit together.
Reusable panels can reduce the need to manufacture or purchase replacement formwork for every concrete pour. Their service life depends on the material quality, concrete pressure, handling, cleaning and storage conditions.
After stripping, concrete residue should be removed using the cleaning method recommended by the manufacturer. Proper cleaning and storage help keep the panels and connection surfaces in good condition.
The best formwork material depends on the project. Purchase price alone does not show the full cost of using a system over several concrete pours.
| Factor | ABS Plastic | Timber | Steel |
|---|---|---|---|
| Handling | Often lightweight | Depends on board size | Often heavier |
| Modification | Depends on system design | Easy to cut on site | Usually requires more planning |
| Repeated use | Suitable for repeated cycles | Affected by damage and moisture | Suitable for repeated cycles |
| Typical consideration | Panel compatibility and pressure limits | Cutting, replacement and waste | Handling equipment and initial investment |
ABS plastic formwork is worth considering when the project uses repeatable dimensions and benefits from lightweight handling. Timber can be more practical for one-off shapes and frequent on-site modifications, while steel may be suitable for projects requiring a robust system designed for demanding loads.
These materials are not direct substitutes in every situation. The final choice should be based on structural requirements, site conditions, available labor and the expected number of uses.
Check the standard panel dimensions and available corner pieces. A suitable modular layout can reduce the number of special components needed for repeated wall and column sections.
Confirm that handles, ties, corners and other accessories are compatible with the selected panels. Poorly matched components can cause alignment problems and concrete leakage.
The formwork must withstand the pressure generated by fresh concrete under the planned pouring conditions. Ask the supplier for the system's allowable pressure, installation requirements and relevant technical documentation. Do not select a system based on panel appearance alone.
Ask how the panels should be cleaned, stacked and stored between uses. Confirm the manufacturer's expected reuse performance and the conditions under which that figure applies.
A reusable formwork system should be evaluated over its expected service life, not only by its initial purchase price.
A simple starting point is:
Formwork cost per use = Total formwork ownership cost ÷ Actual completed uses
For a more complete comparison, include the purchase price, transport, cleaning, maintenance, damaged panels, replacement parts and labor. Divide the total by the actual number of completed uses.
For example, a system with a higher initial price may offer better value if it lasts through more concrete pours and requires less replacement work. However, the result depends on actual site conditions and the way the system is used.

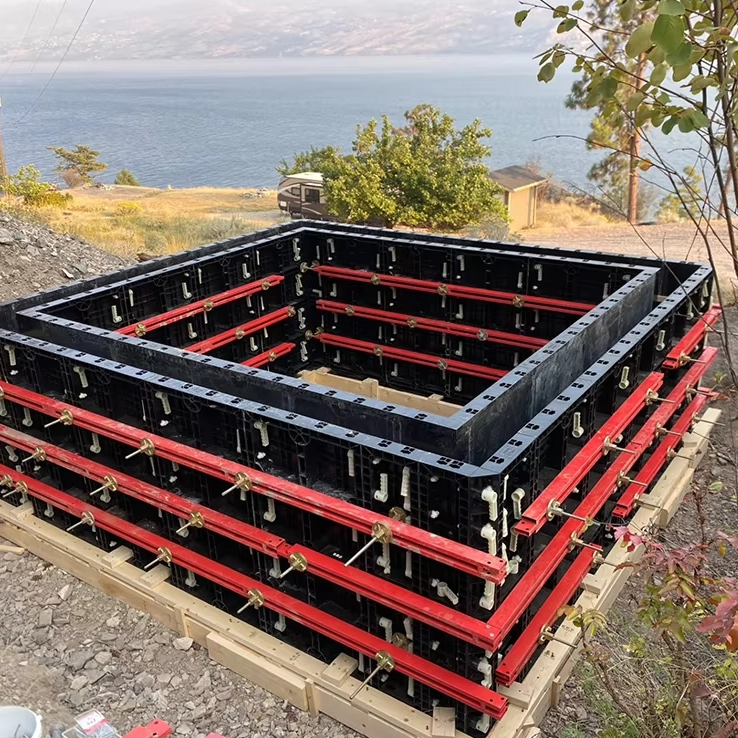

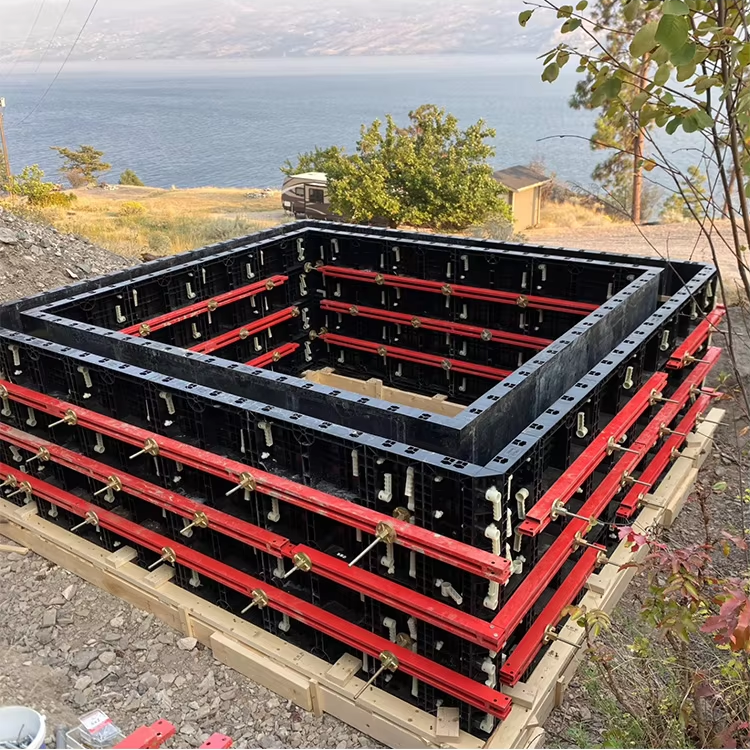

Modular formwork configuration for compatible concrete column applications.
ABS plastic formwork can be a practical choice for residential buildings, repetitive wall construction, columns and other compatible concrete structures. It is especially worth evaluating when manual handling, consistent panel layouts and repeated use are important.
Before making a decision, compare the project drawings with the available panel sizes, confirm the required concrete pressure capacity and review the complete accessory list.
For contractors planning multiple projects, it is also useful to calculate the expected number of uses and the total cost over the system's service life.
Yes. ABS plastic formwork is designed for repeated use. Actual service life depends on product quality, concrete pressure, handling, cleaning and storage.
Yes, if the selected system supports the required column dimensions and concrete pressure. Check the available panel layout, corner connections and supporting components before ordering.
Not necessarily at the initial purchase stage. Reusable plastic formwork may offer a lower cost per use on repetitive projects, but the result depends on purchase price, service life, labor and maintenance costs.
Provide the required wall and column dimensions, concrete pressure requirements, estimated quantities, project location and any special configuration requirements. This helps the supplier recommend a suitable system and prepare a more accurate quotation.

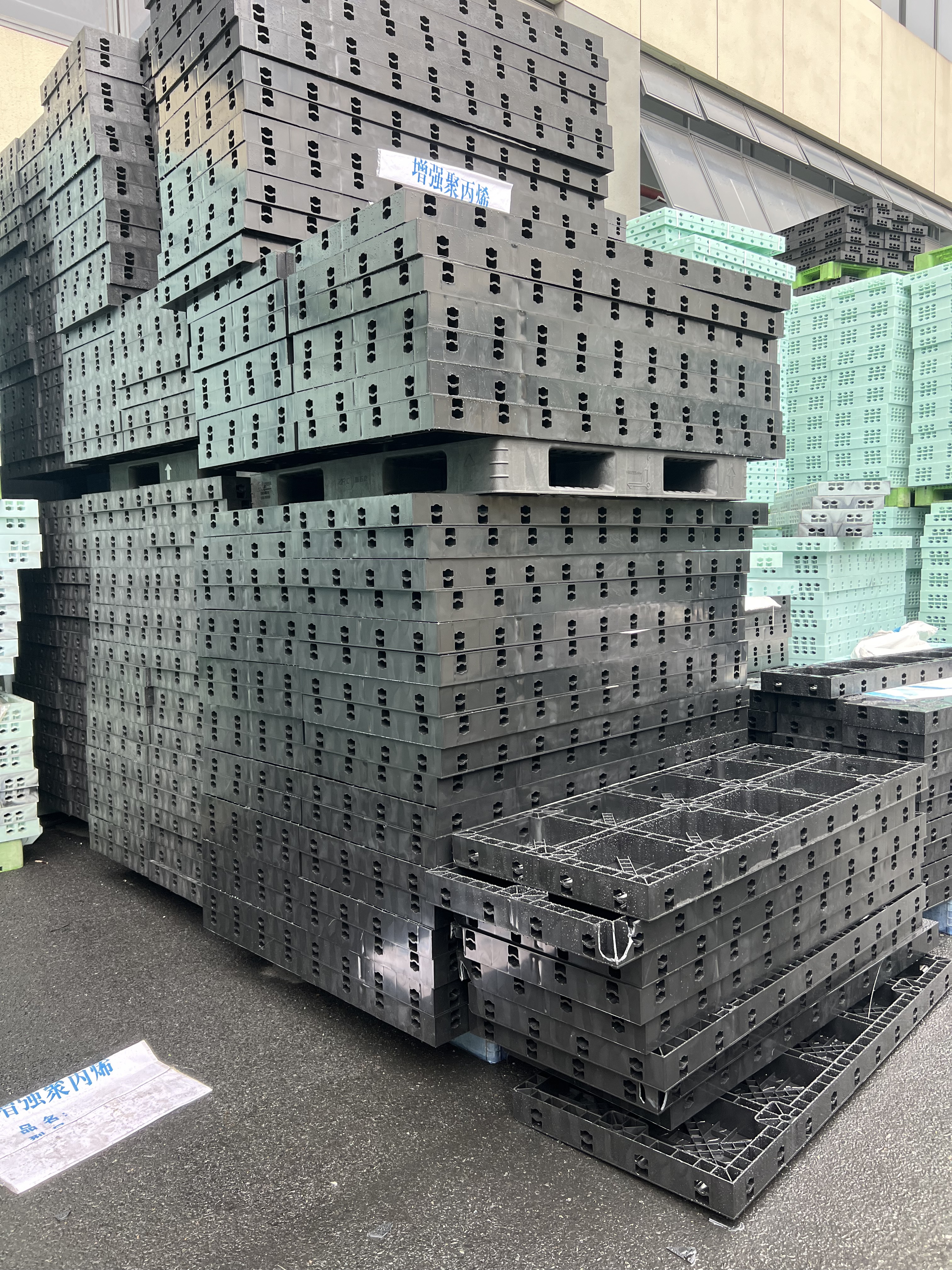

Product inspection and packing before shipment.
