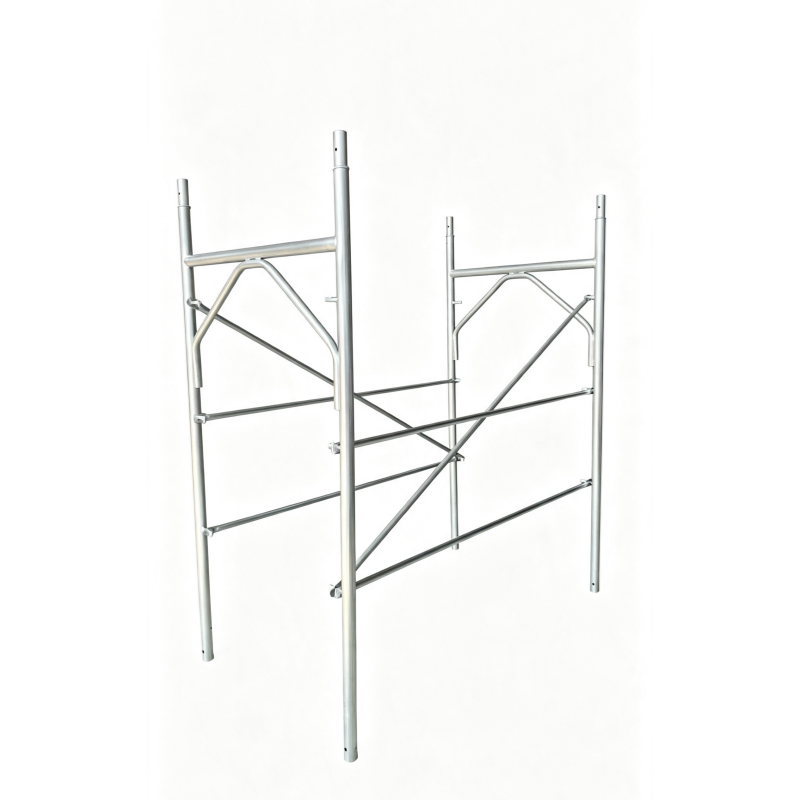

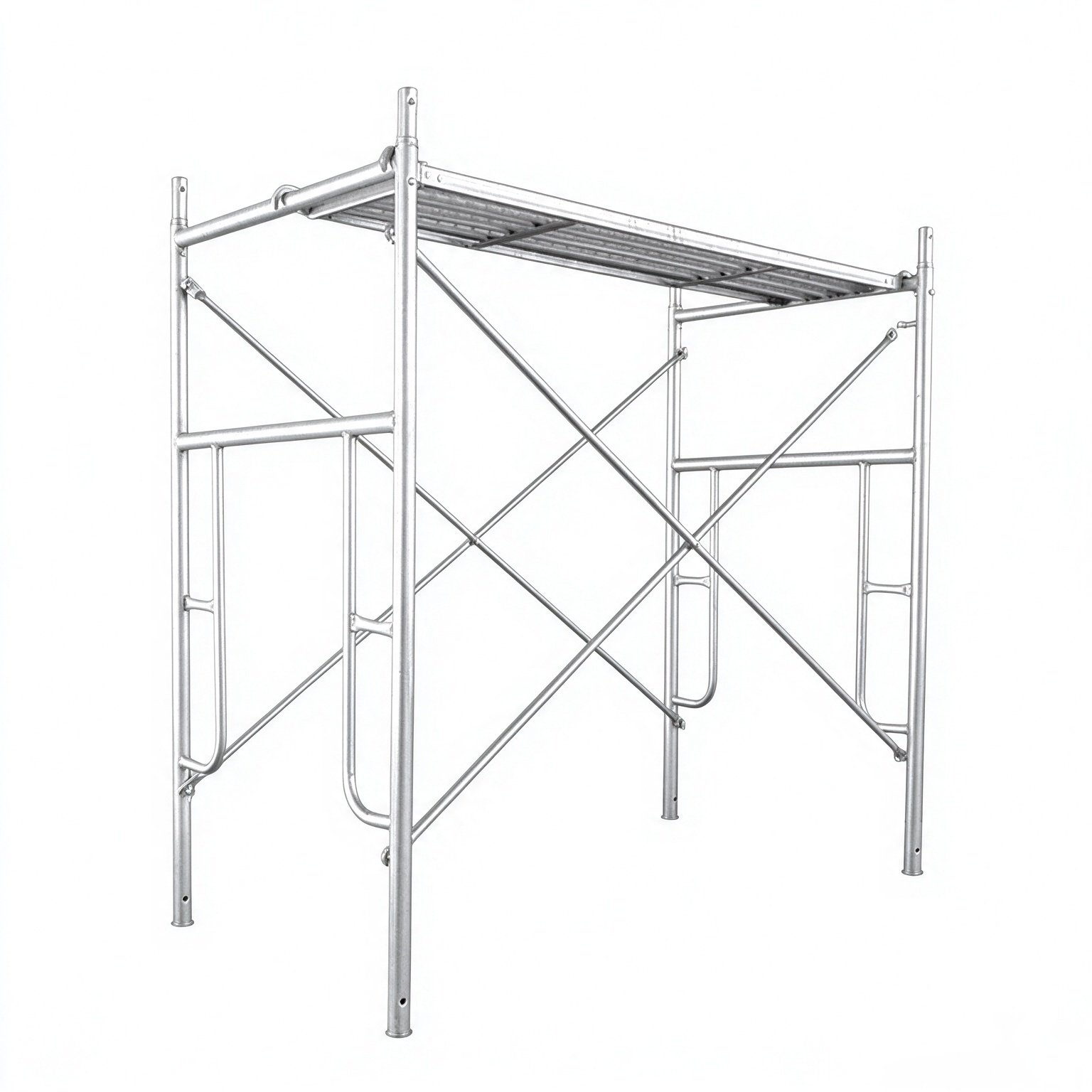

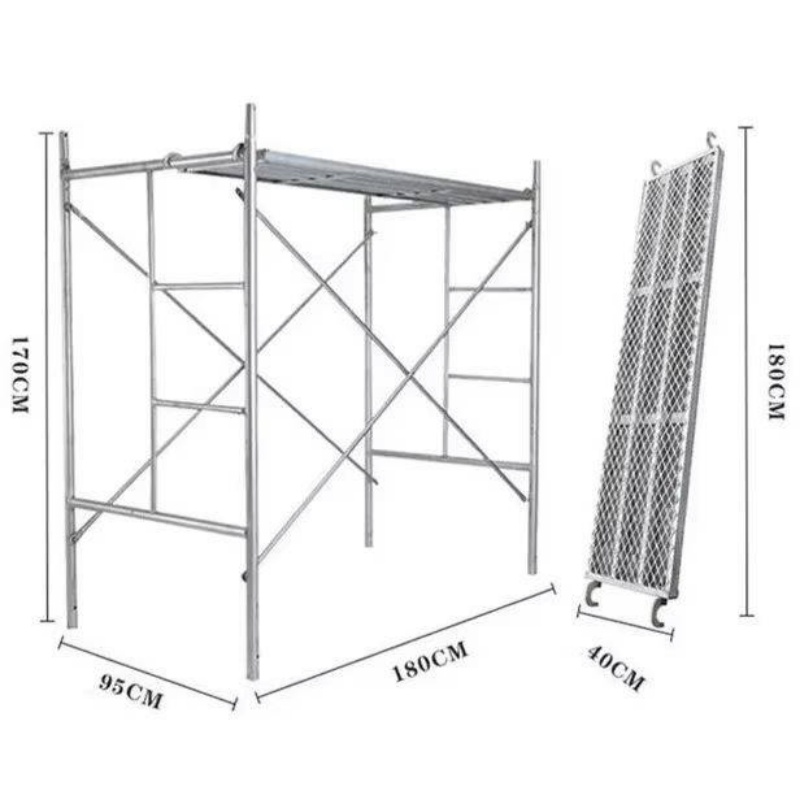

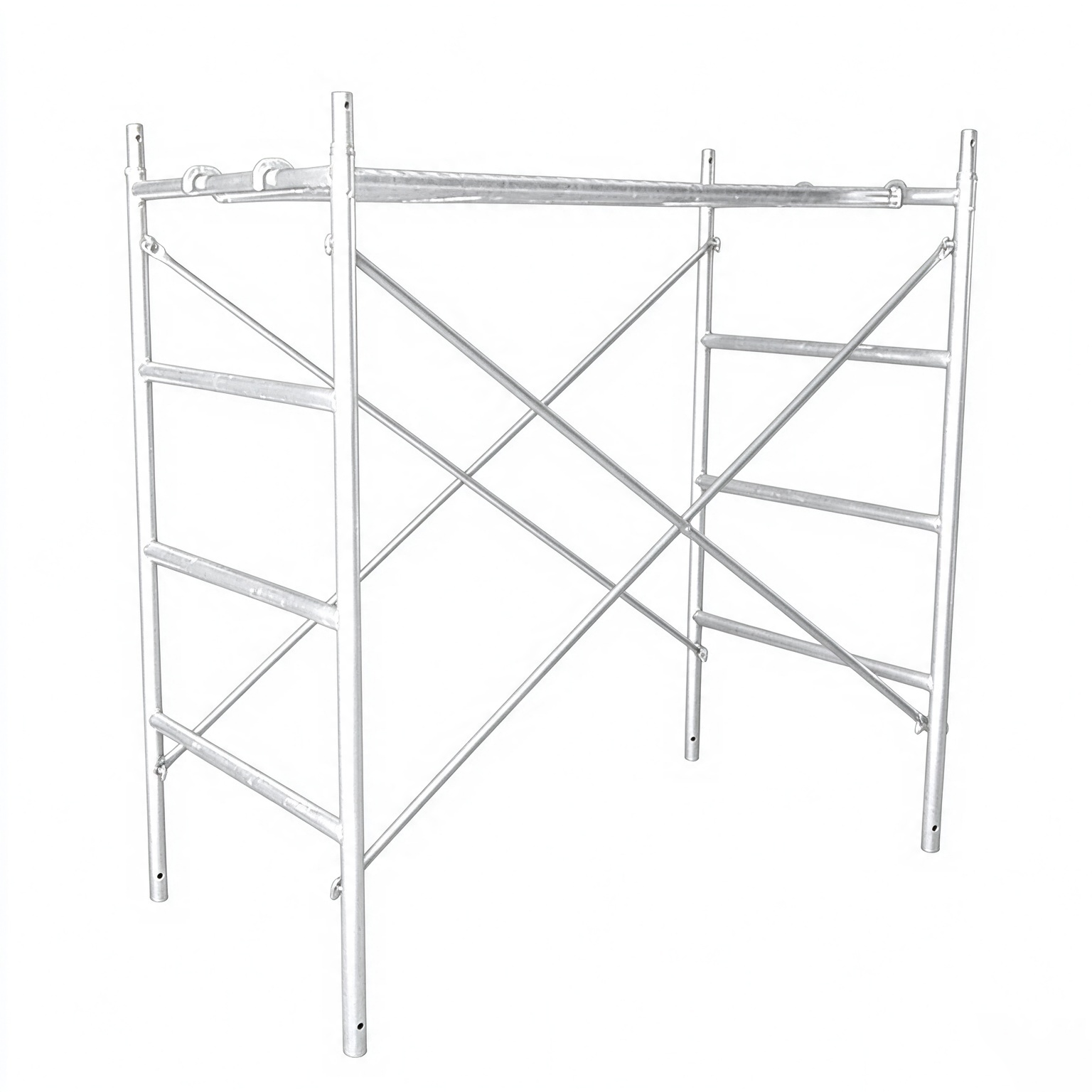

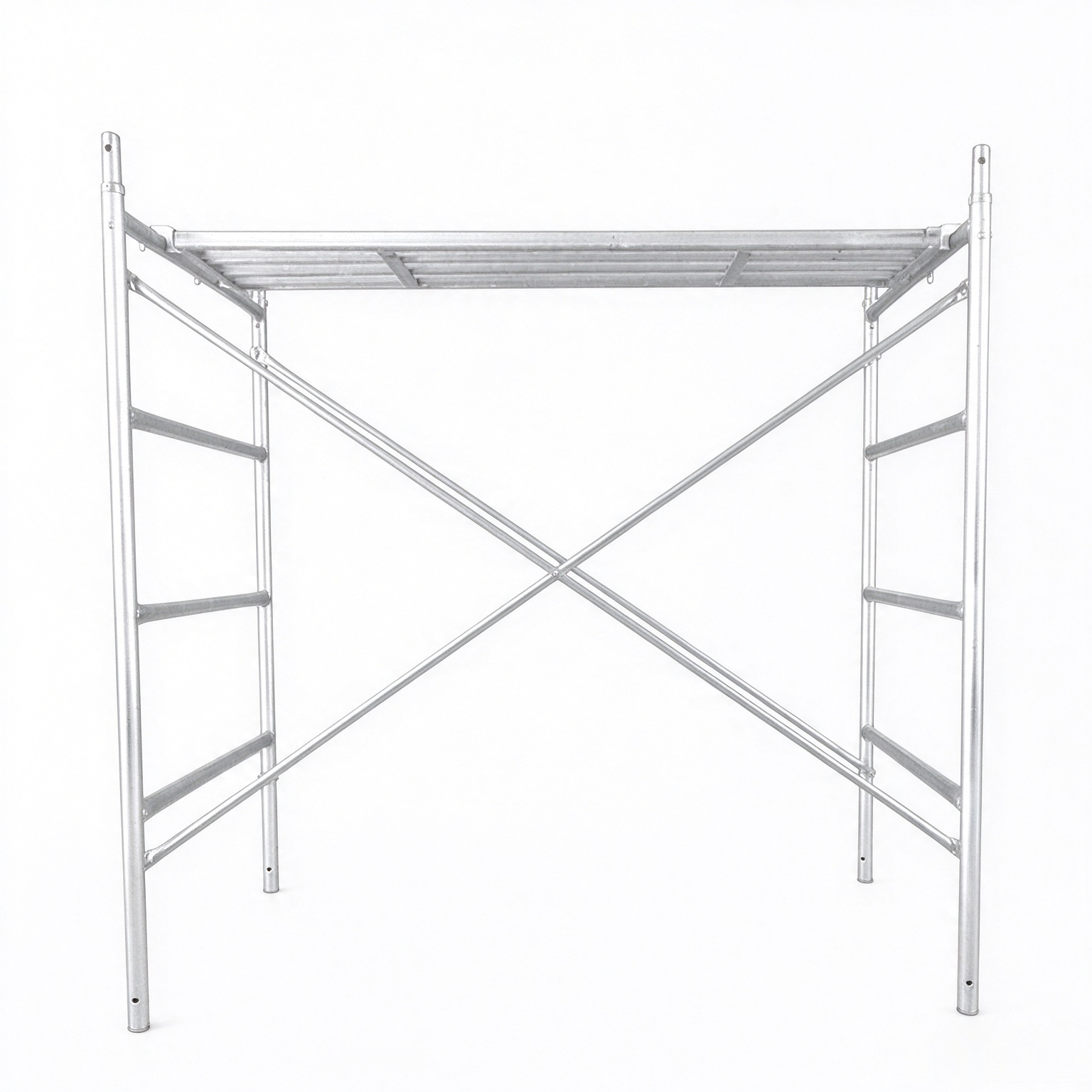

H Frame Scaffolding Walk Through Steel Frame System for Construction

ZEEMO H frame scaffolding is a modular tubular steel scaffolding system for construction, building support, and indoor or outdoor finishing. Available in Q235 or Q345 steel with hot-dip galvanized or powder-coated finishes, it offers multiple frame styles, cross braces, and related accessories. Frame sizes and pallet packing can be customized to project requirements.
Availability:
Quantity:
Inquire Add to Basket

  • ZMFS

  • ZEEMO


Walk Through Frame Scaffolding, H Frame Scaffolding

H Frame scaffolding is also called tubular steel frame scaffolding or door style frame scaffolding.    It is a long established modular frame scaffolding system serving as a working platform for construction and decoration purposes,    which is composed of main frames, catwalk or walk board, braces or cross braces, brackets, coupling pins of spigot, guardrails  and sometimes casters, etc.

Frame scaffolding is mainly used for building support, high-rise building external wall construction, formwork support,    indoor and outdoor decoration. Easy on installation, and widely used as movable towers with castors.

Specification

Name Frame Scaffold / H frame scaffolding / A frame scaffolding
Types Ladder Frame / Step Frame / Mason Frame / Walkthrough Frame / Euro Frame
Material Q235 / Q345
Component Frame, Cross Brace, Base Jack, Coupling Pin
Surface Treatment Hot Dip Galvanized / Powder Coated
Pallet In Bundle or Customized

Frame Size & Weight

Pipe Diameter Thickness (mm) Width & Height (mm) Weight (kg)
41.3×2.3 / 32×2 914 × 2641 20.3
41.3×2.3 / 32×2 609 × 3251 22.2
41.3×2.3 / 32×2 914 × 3251 24.8
41.3×2.3 / 32×2 609 × 1524 12.3
41.3×2.3 / 32×2 914 × 1219 10.9
41.3×2.3 / 32×2 914 × 1524 13.2
42.7×2.3 / 32×2 914 × 2032 15.9
41.3×2.3 / 32×2 609 × 2032 15.0
41.3×2.3 / 32×2 1524 × 2286 25.5
41.3×2.3 / 32×2 914 × 2006 18.5
41.3×2.3 / 32×2 1524 × 2006 21.6
41.3×2.3 / 32×2 1524 × 2032 19.2
41.3×2.3 / 32×2 609 × 2641 18.9
41.3×2.3 / 32×2 1524 × 1930 23.5

Frame Scaffolding Features

  • 1.Widely used — indoor and outdoor decoration, store billboards, bridges, building support, wall scaffolding and so on.

  • 2.Multi-function — can be single use, double use, can move, simple and fast to use.

  • 3.High efficiency & flexible — fast disassembly and assembly, no screws, achieving twice the efficiency with half the             effort.

  • 4.Large bearing capacity and good stability.

  • 5.Safe and reliable — good joint self-locking ability, series standardization.

  • 6.Easy to manage — stacked neatly.

  • 7.Economical and practical — low cost, small space, long use time.

Frame Scaffolding Product Range

1. Flip Lock Frame (1.625" OD)

Walk Through Frame

Walk Through Frame frame scaffolding product
Item Code Width Height
ZMFF001 3' (914.4) 5' 1" (1549.4)
ZMFF002 3' (914.4) 6' 7" (2006.6)
ZMFF003 5' (1524) 6' 7" (2006.6)

Mason Frame

Mason Frame frame scaffolding product
Item Code Width Height
ZMFF004 5' (1524) 2' 1" (635)
ZMFF005 5' (1524) 3' 1" (939.8)
ZMFF006 5' (1524) 4' 1" (1244.6)
ZMFF007 5' (1524) 5' 1" (1549.4)
ZMFF008 5' (1524) 6' 7" (2006.6)

Ladder Frame

Ladder Frame frame scaffolding product
Item Code Width Height
ZMFF009 3' (914.4) 3' 1" (939.8)
ZMFF010 3' (914.4) 4' 1" (1244.6)
ZMFF011 3' (914.4) 5' 1" (1549.4)
ZMFF012 3' (914.4) 6' 7" (2006.6)
ZMFF013 29" (736.6) 5' (1524)
ZMFF014 29" (736.6) 6' 7" (2006.6)

2. Fast Lock Frame (1.625" OD)

Walk Through Frame

Walk Through Frame frame scaffolding product
Item Code Width Height
ZMFLF001 3' (914.4) 6' 7" (2006.6)
ZMFLF002 5' (1524) 6' 7" (2006.6)
ZMFLF003 42" (1066.8) 6' 7" (2006.6)

Mason Frame

Mason Frame frame scaffolding product
Item Code Width Height
ZMFLF004 5' (1524) 3' 1" (939.8)
ZMFLF005 5' (1524) 4' 1" (1244.6)
ZMFLF006 5' (1524) 5' 1" (1549.4)
ZMFLF007 5' (1524) 6' 7" (2006.6)

Narrow Frame

Narrow Frame frame scaffolding product
Item Code Width Height
ZMFLF008 27 5/8" (701.675) 3' 1" (939.8)
ZMFLF009 27 5/8" (701.675) 5' 1" (1549.4)
ZMFLF010 27 5/8" (701.675) 6' 7" (2006.6)
ZMFLF011 3' (914.4) 5' 1" (1549.4)
ZMFLF012 3' (914.4) 6' 7" (2006.6)

3. Drop Lock Frame (1.69" OD)

Mason Frame

Mason Frame frame scaffolding product
Item Code Width Height
ZMDF005 5' (1524) 3' (914.4)
ZMDF006 5' (1524) 4' (1219.2)
ZMDF007 5' (1524) 5' (1524)
ZMDF008 5' (1524) 6' 4" (1930.4)

Narrow Frame

Narrow Frame frame scaffolding product
Item Code Width Height
ZMDF009 2' (609.6) 3' (914.4)
ZMDF010 2' (609.6) 5' (1524)
ZMDF011 2' (609.6) 6' 4" (1930.4)

Narrow Frame

Narrow Frame frame scaffolding product
Item Code Width Height
ZMDF009 2' (609.6) 3' (914.4)
ZMDF010 2' (609.6) 5' (1524)
ZMDF011 2' (609.6) 6' 4" (1930.4)

4. Snap on lock (1.625" OD)

Walk Through Frame

Walk Through Frame frame scaffolding product
Item Code Width Height
ZMSF001 3' (914.4) 4' (1219.2)
ZMSF002 3' (914.4) 5' (1524)
ZMSF003 3' (914.4) 6' 8" (2032)
ZMSF004 5' (1524) 6' 8" (2032)

Apartment Frame

Apartment Frame image
Item Code Width Height
ZMSF005 3' (914.4) 8' 8" (2641.6)
ZMSF006 3' (914.4) 10' 8" (3251.2)
ZMSF007 3' (914.4) 11' 8" (3556)

5. Snap on lock (1.625" OD)

18" Walk Through Frame with 18" Ladder

18" Walk Through Frame with 18" Ladder image
Item Code Width Height
ZMSF008 3' (914.4) 4' (1219.2)
ZMSF009 3' (914.4) 5' (1524)
ZMSF010 3' (914.4) 6' 8" (2032)
ZMSF011 5' (1524) 6' 8" (2032)

Apartment Frame with 18" Ladder

Apartment Frame with 18" Ladder image
Item Code Width Height
ZMSF012 3' (914.4) 8' 8" (2641.6)
ZMSF013 3' (914.4) 10' 8" (3251.2)
ZMSF014 3' (914.4) 11' 8" (3556)

6. Snap on lock (1.625" OD)

Box Frame

Box Frame image
Item Code Width Height
ZMSF015 3' (914.4) 4' (1219.2)
ZMSF016 3' (914.4) 20" (508)
ZMSF017 3' (914.4) 40" (1016)
ZMSF018 5' (1524) 20" (508)
ZMSF019 5' (1524) 40" (1016)

Mason Frame

Mason Frame frame scaffolding product
Item Code Width Height
ZMSF020 5' (1524) 4' (1219.2)
ZMSF021 5' (1524) 5' (1524)
ZMSF022 5' (1524) 6' 8" (2032)

Ladder Frame

Ladder Frame frame scaffolding product
Item Code Width Height
ZMSF023 2' (609.6) 5' (1524)
ZMSF024 2' (609.6) 6' 8" (2032)
ZMSF025 3' (914.4) 6' 8" (2032)
ZMSF026 3' (914.4) 5' (1524)

7. Shoring Frame

7. Shoring Frame image
Item Code Width Height
ZMFS001 2' (609.6) 3' (914.4)
ZMFS002 2' (609.6) 4' (1219.2)
ZMFS003 2' (609.6) 5' (1524)
ZMFS004 2' (609.6) 6' (1828.8)
ZMFS005 4' (1219.2) 3' (914.4)
ZMFS006 4' (1219.2) 4' (1219.2)
ZMFS007 4' (1219.2) 5' (1524)
ZMFS008 4' (1219.2) 6' (1828.8)

Frame Scaffolding Accessories

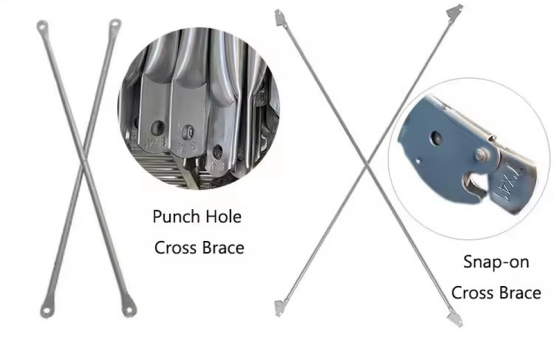

Cross Brace

  • Punch Hole Cross Brace

  • Snap-on Cross Brace

Snap-on Cross Brace image

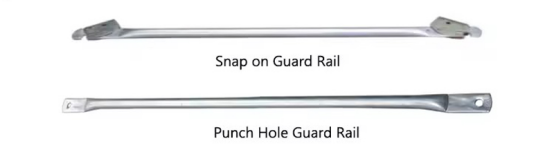

Guard Rail

  • Snap on Guard Rail

  • Punch Hole Guard Rail

Punch Hole Guard Rail image

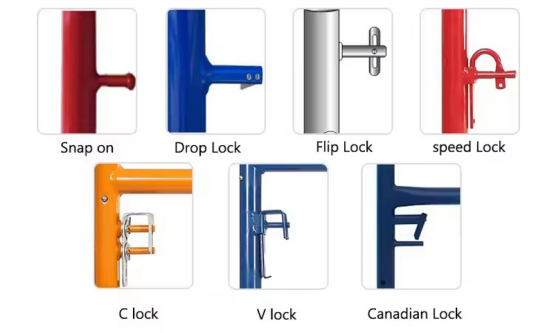

Lock Options

Lock Options image

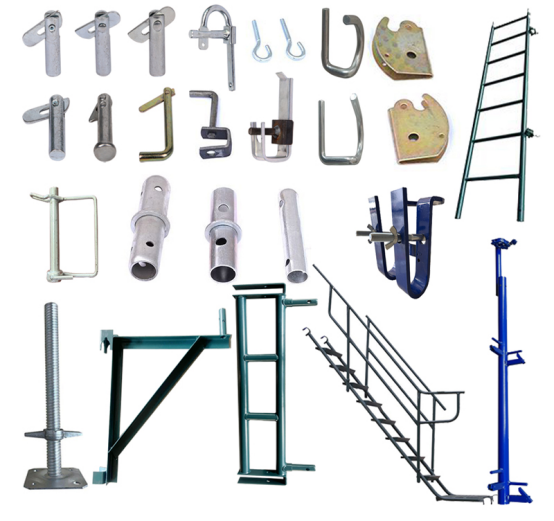

More Accessories

More Accessories image

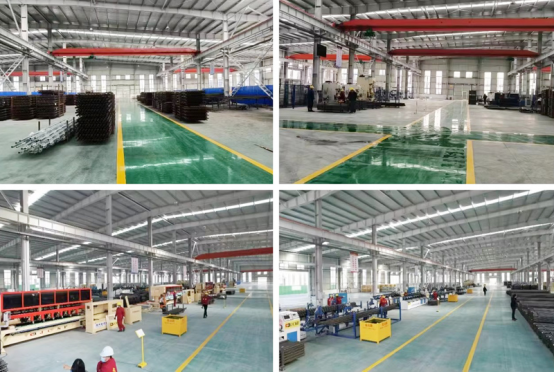

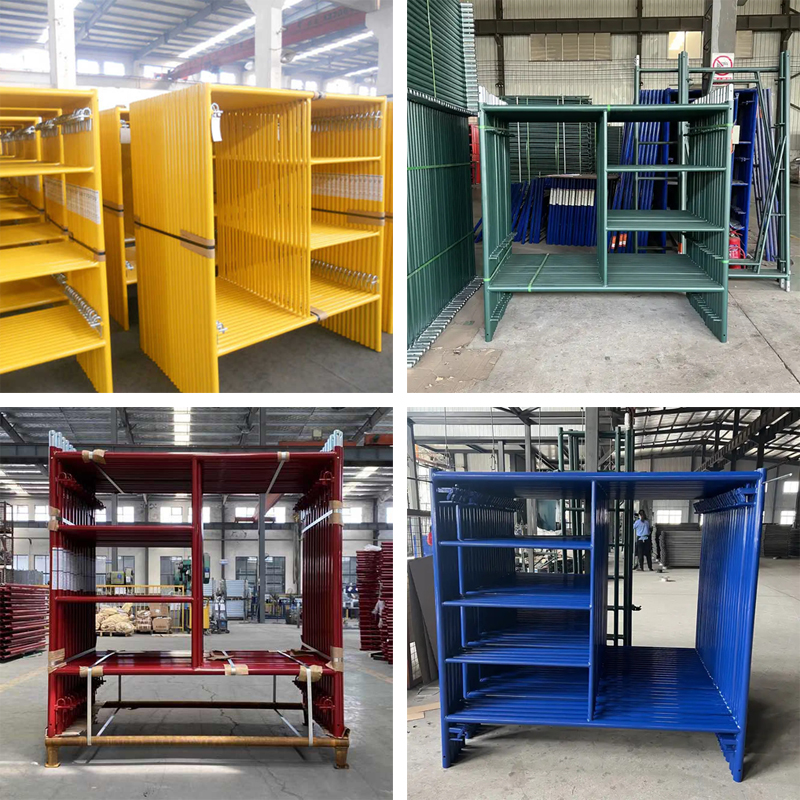

Factory & Packing

Factory & Packing image
H frame scaffolding Factory & Packing image

Need a Quotation or Customized Size?

We supply frame scaffolding in Q235 / Q345 with hot dip galvanized or powder coated finish.      Sizes and pallet packing can be customized. Contact us now for the latest price.
