ZM-SP14
ZEEMO
Highly efficient and customized tables for large-area slabs.
Performance data & dimensions
| System Type | Table Formwork System |
|---|---|
| Material | H20 timber beam, Plywood, and steel accessories |
| Standard Shoring | Heavy Duty Prop |
| Max. Unit Size | 4×6 m |
| Max Permissible Slab Thickness | 1000 mm |
| Installation Time | 200 m²/day/unit (5 people) |
| Formlining | 18 mm birch plywood, hardwood, and polar plywood; Hollow Plastic Board |
| Handling Method | Trolley/Tower Crane |
| Load Quantity | Around 300 m² per 40 HQ container (with accessories) |

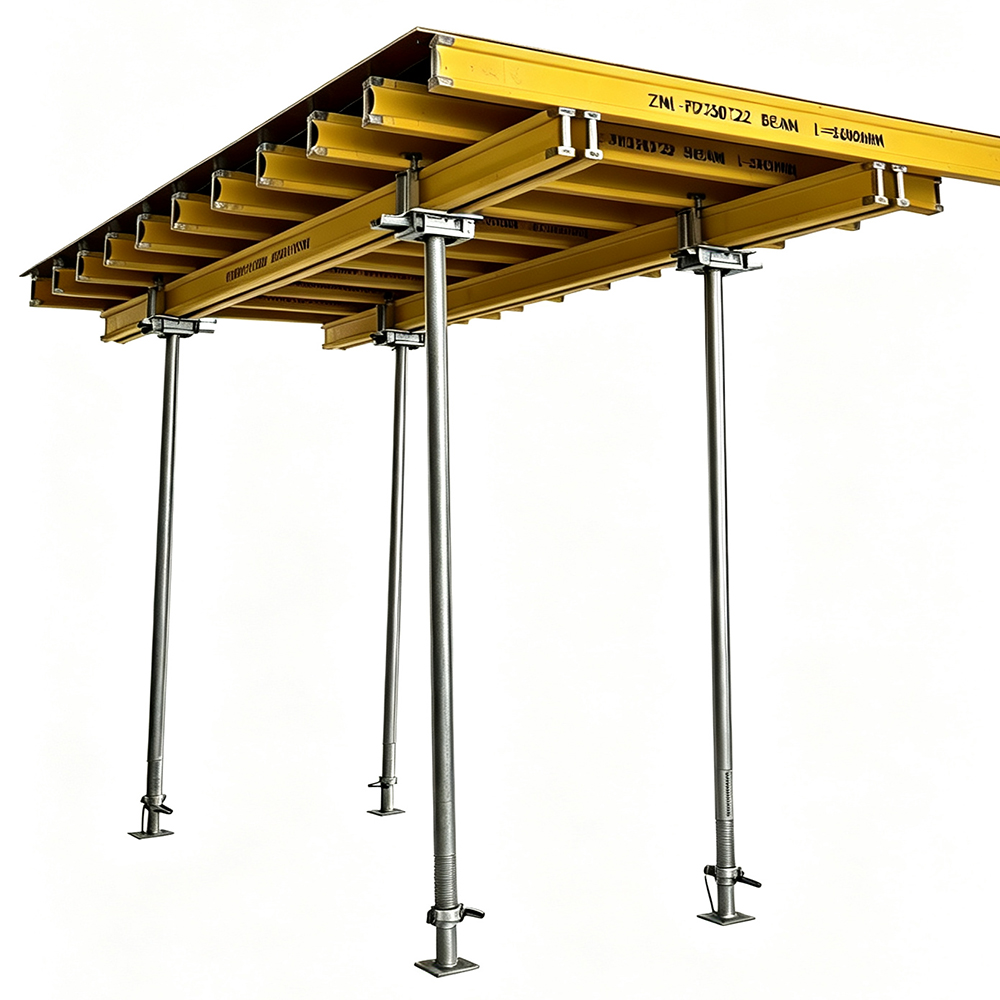

ZEEMO Table form is widely used in civil projects for pouring of slabs. The system is suitable for any ground plan and any floor height.
It features a simple structure and portable way of work, making it especially cost‑effective.
Modular design for quick assembly, lightweight operation reduces labour costs, and high load capacity with proven safety.
Large table units (up to 4×6 m) enable rapid setup, stripping, and pre-assembly, while being easily relocated with a trolley or crane to the next casting area.
Fewer beams create wider, column-free spans, while pre-assembled units enhance on-site safety.
TECON-Form Plywood is available in birch, hardwood, poplar, hollow plastic board or TECON-Form Plas-tech (up to 50 uses). H20 timber beams can be replaced with aluminum for extended lifespan across different projects.
Produces smooth, even concrete surfaces with natural depth and subtle stone-like texture, ensuring high-quality fair-faced results.
Tower TST60 for heights up to 20 m, making it suitable for high-rise, super high-rise, and minimal-beam structural projects .
Quick start guide
Position table formwork support heads according to the design layout.
Set up vertical supports at designed spacing, ensure plumb and stability.
Use angle connectors to fasten secondary beams onto primary beams.
Place plywood over the beam grid; choose infill with or without edge support as required.
Check overall stability, then proceed with concrete pouring.
Real‑world applications
End‑to‑end support
Offer you a general idea about formwork & scaffolding
提供总体模板脚手架方案
Customized forming & shoring solution proposal according to your structural drawing by Auto‑cad
根据您的图纸提供订制化模板和脚手架预案。
Fast to your site with proper packages & well organized loadings
快速送达工地，包装防护，装货规范。
Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision
我们提供加工图，组装图，甚至可以派员到您的工地实施培训监督。
