ZP78
ZEEMO

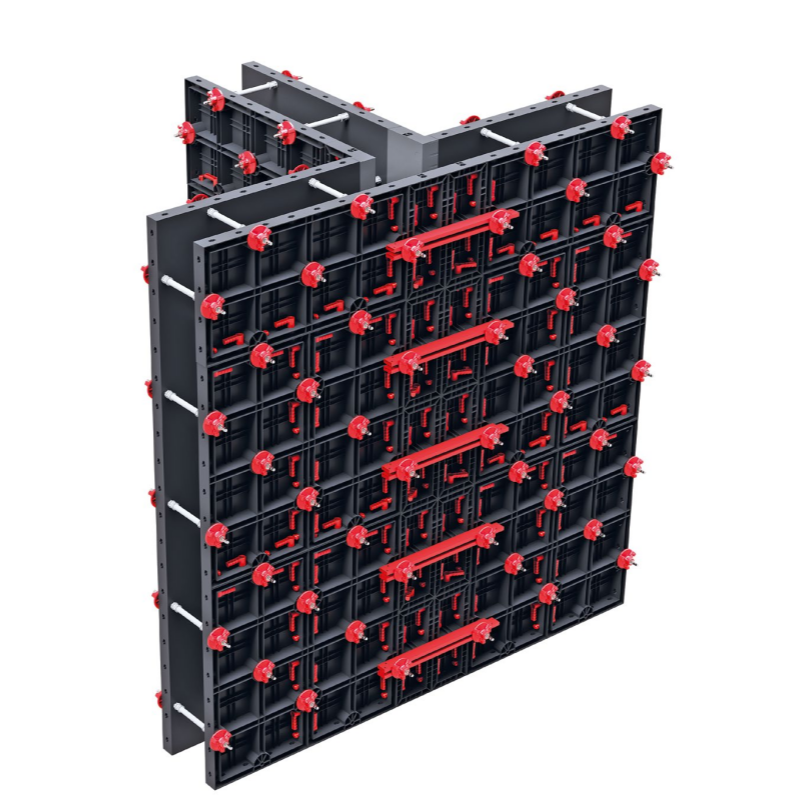

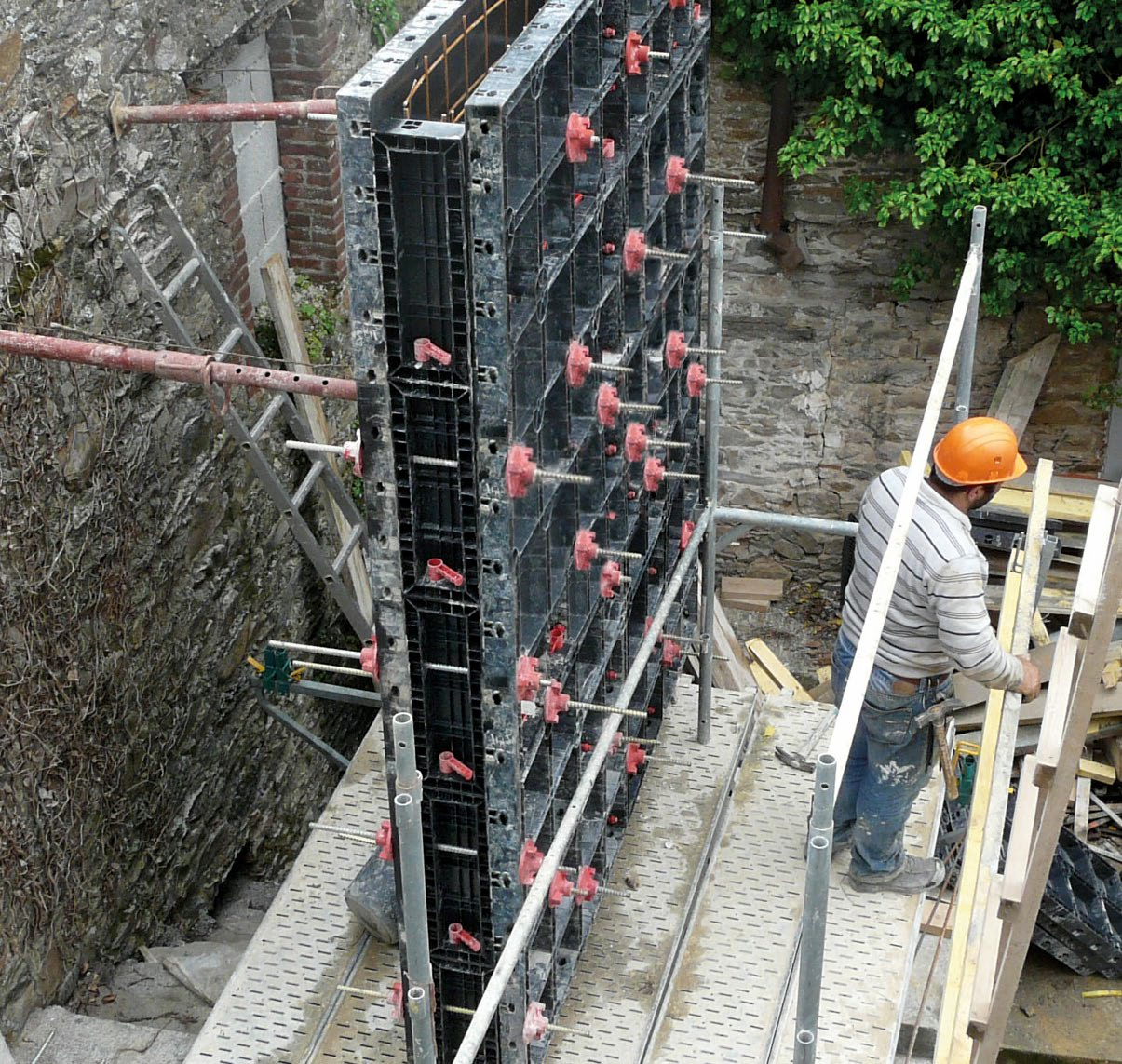

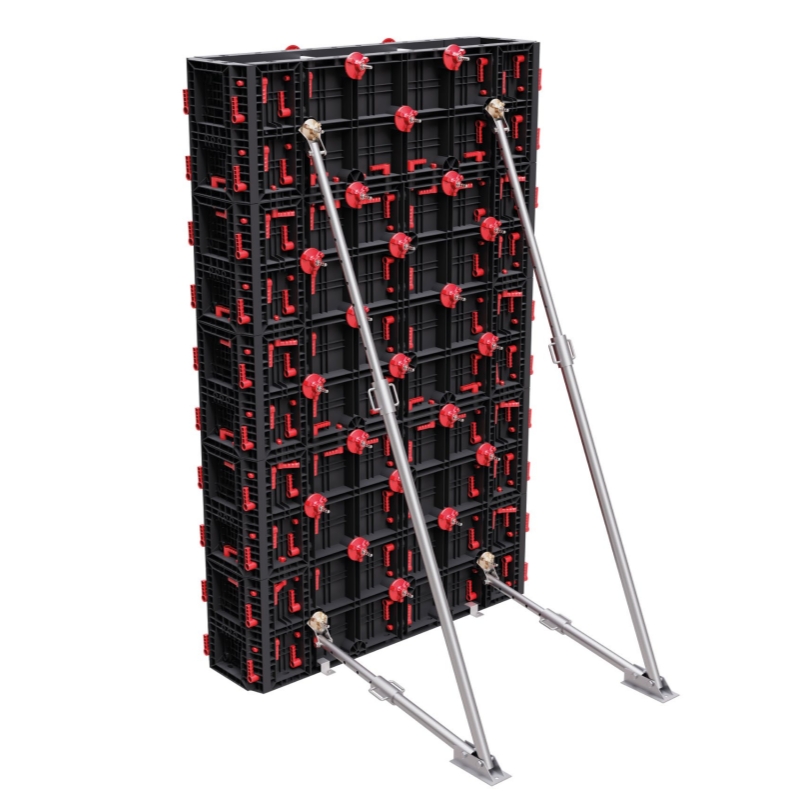

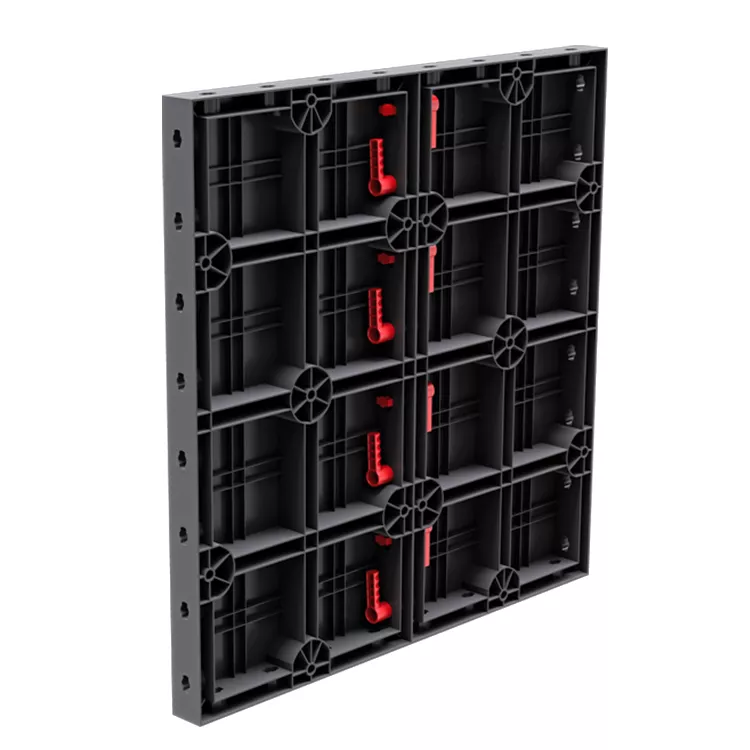

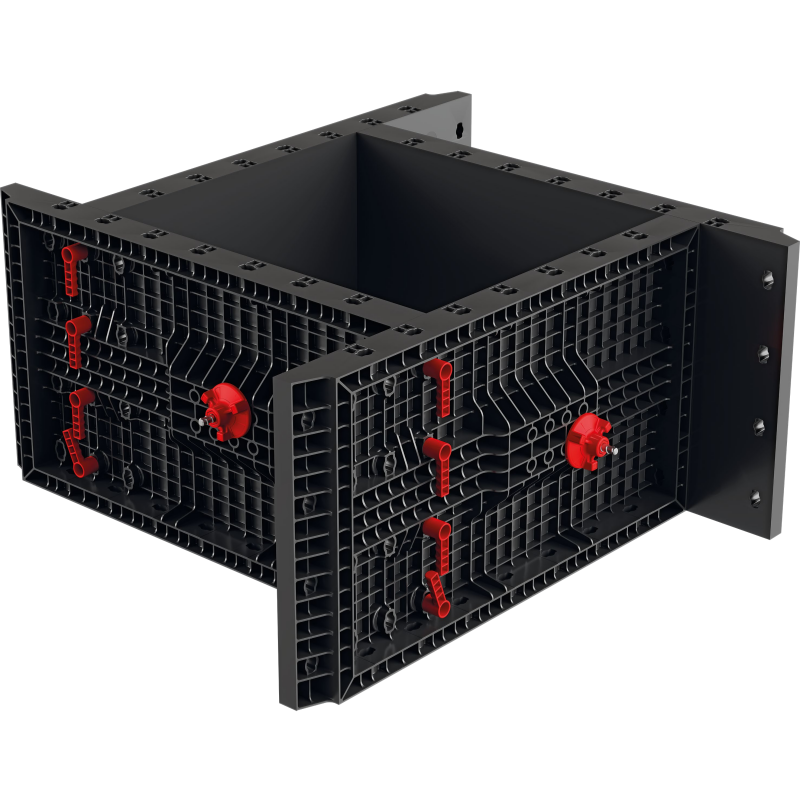

Lightweight and modular ABS plastic formwork for concrete walls, columns, slabs, construction. Designed for fast assembly, easy handling and repeated reuse.
Individual panels can be handled quickly on site without cranes or mechanical lifting devices.
The ZP78 system can be reused more than 100 times when properly used and maintained.

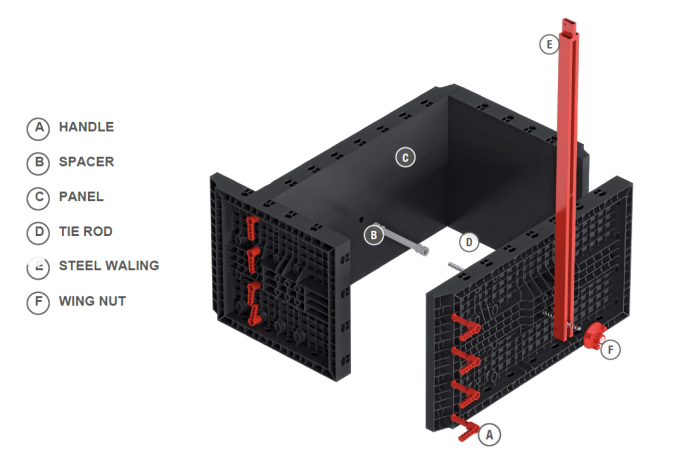

Universal closing handles are secured with a simple 90-degree rotation.
The system uses modular elements with a 600 mm length.

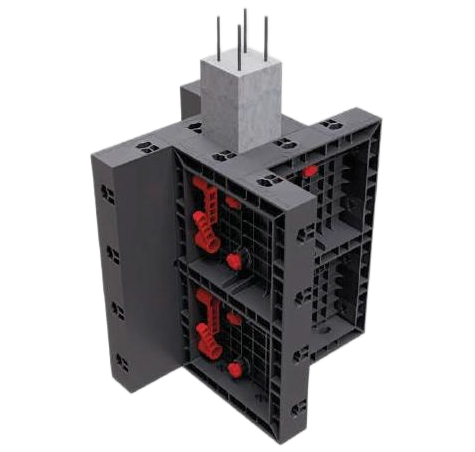

ZP78 panels can be combined into different wall configurations and thicknesses according to the project design.
| Component | Size | Unit | Area / Piece (m²) | Weight (kg) |
|---|---|---|---|---|
| Panel | 120 × 15 | pcs | 0.180 | 3.20 |
| Panel | 120 × 20 | pcs | 0.240 | 4.32 |
| Panel | 120 × 25 | pcs | 0.300 | 5.40 |
| Panel | 120 × 30 | pcs | 0.360 | 6.48 |
| Panel | 120 × 40 | pcs | 0.480 | 8.64 |
| Panel | 120 × 50 | pcs | 0.600 | 10.80 |
| Panel | 120 × 60 | pcs | 0.720 | 12.00 |
| Panel | 150 × 20 | pcs | 0.300 | 5.40 |
| Panel | 150 × 25 | pcs | 0.375 | 6.75 |
| Panel | 150 × 30 | pcs | 0.450 | 7.20 |
| Panel | 150 × 35 | pcs | 0.525 | 8.40 |
| Panel | 150 × 40 | pcs | 0.600 | 9.60 |
| Panel | 150 × 45 | pcs | 0.675 | 10.20 |
| Panel | 150 × 50 | pcs | 0.750 | 10.80 |
| Panel | 150 × 60 | pcs | 0.900 | 14.00 |
| Panel | 150 × 70 | pcs | 1.050 | 15.80 |
| Panel | 150 × 80 | pcs | 1.200 | 17.00 |
| Panel | 150 × 100 | pcs | 1.500 | 21.00 |
| Panel | 150 × 120 | pcs | 1.800 | 25.00 |
| Inner Corner | 75 × 30 × 10 | pcs | 0.210 | 2.74 |
| Inner Corner | 60 × 25 × 25 | pcs | 0.110 | 1.50 |
| Inner Corner | 60 × 30 × 10 | pcs | 0.090 | 1.25 |
| Inner Corner | 60 × 25 × 10 | pcs | 0.070 | 1.10 |
| Outer Corner | 60 × 5 + 8 | pcs | 0.080 | 1.20 |
| Outer Corner | 60 × 10 + 8 | pcs | 0.110 | 1.40 |
| Outer Corner | 60 × 5 × 5 | pcs | 0.060 | 1.20 |
| Outer Corner | 60 × 10 × 10 | pcs | 0.120 | 1.80 |

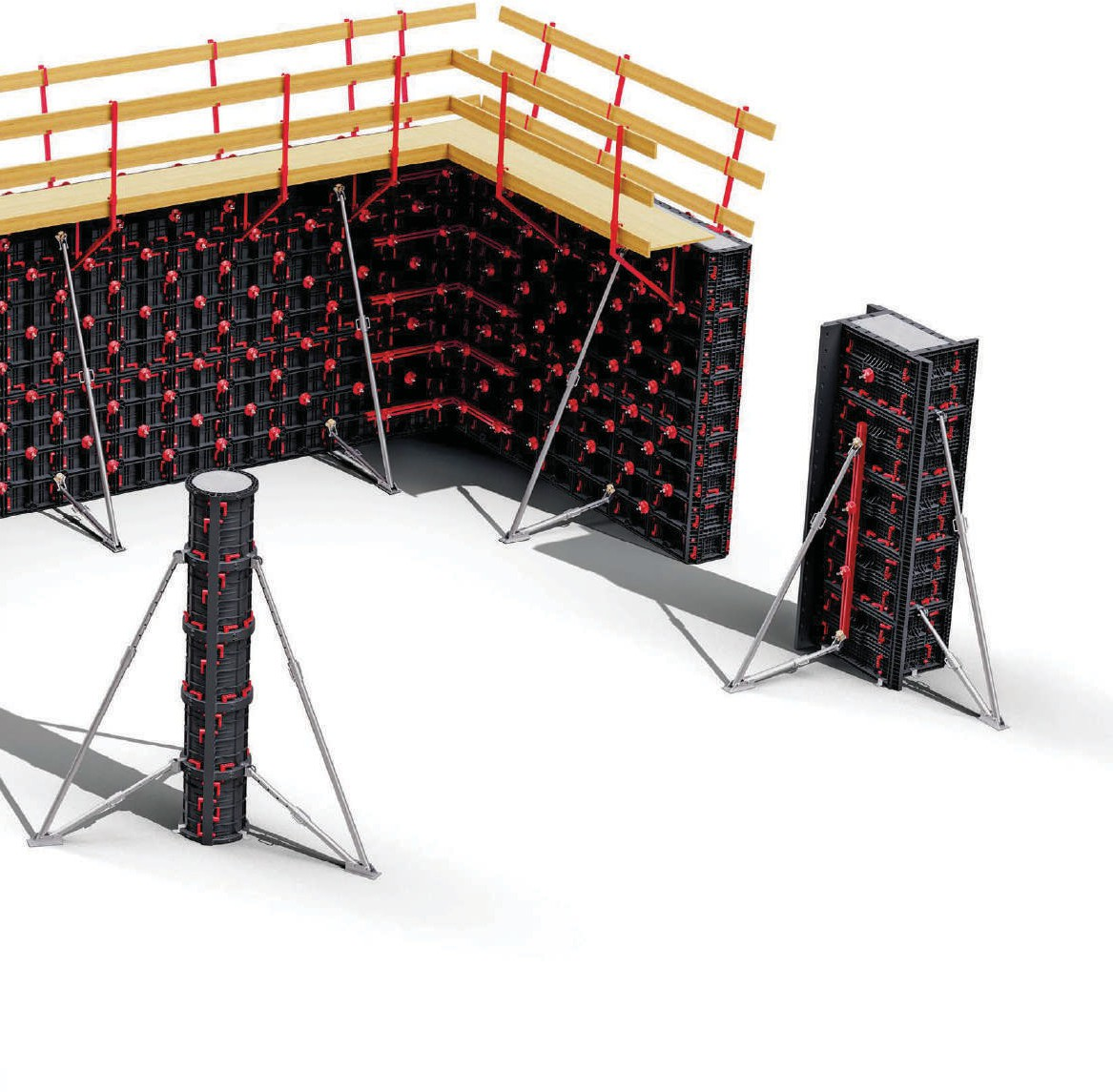

Versatile wall formwork solutions for a wide range of concrete structures.
Residential & Housing Projects
Commercial & Apartment Construction

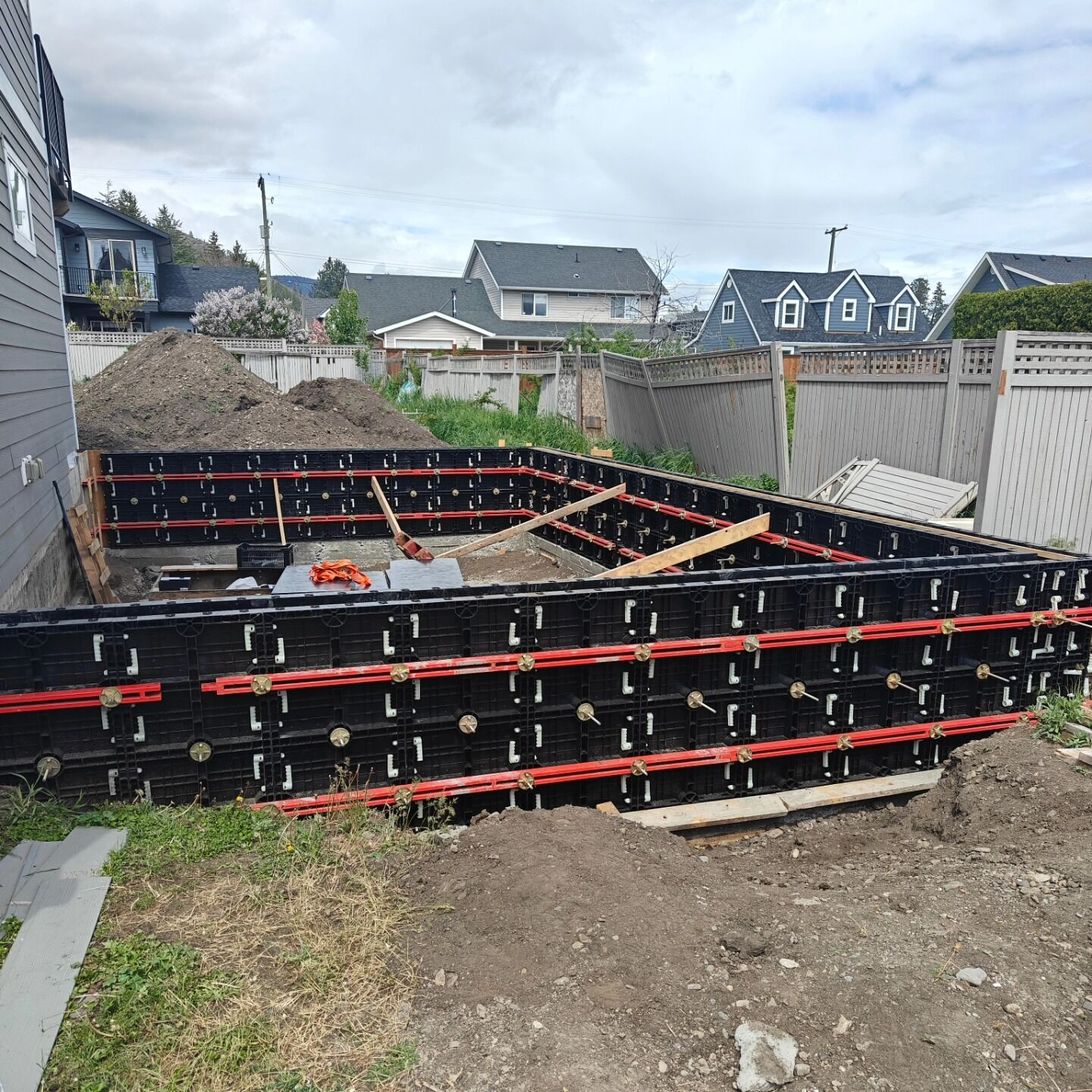

Pile Caps, Strip Foundations & Footings

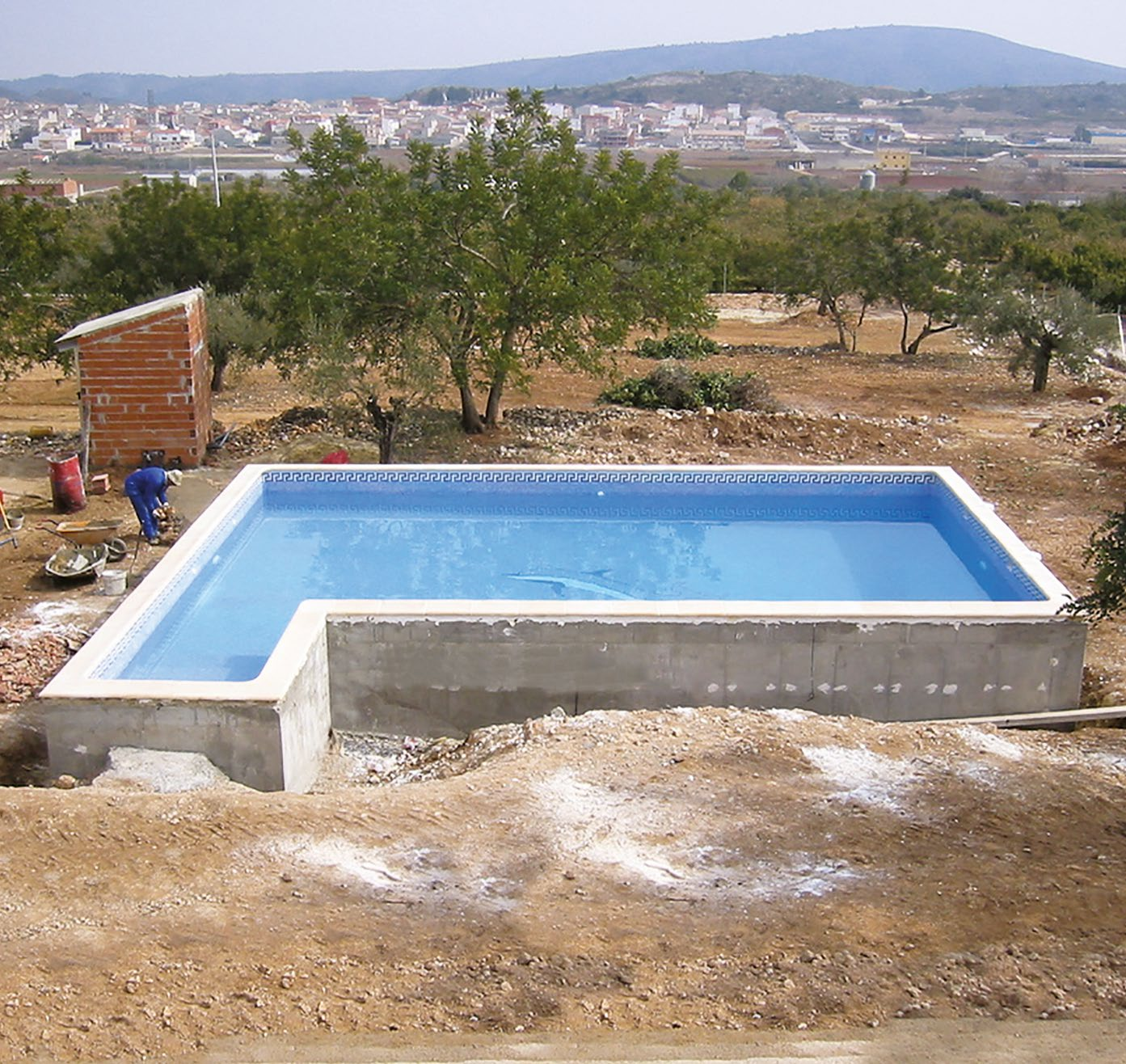

Canals, Elevator Shafts & Swimming Pools

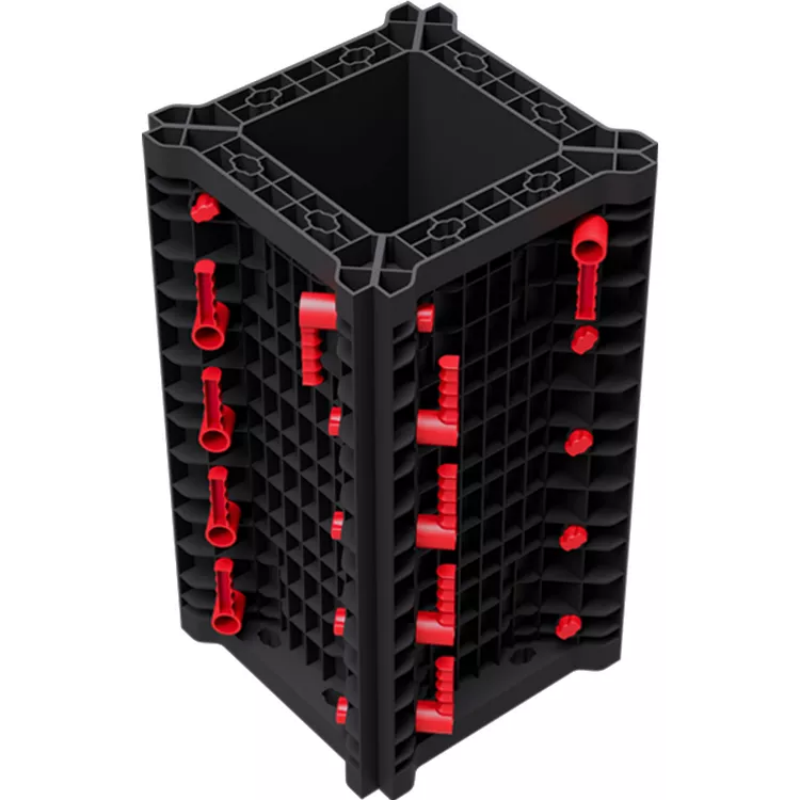

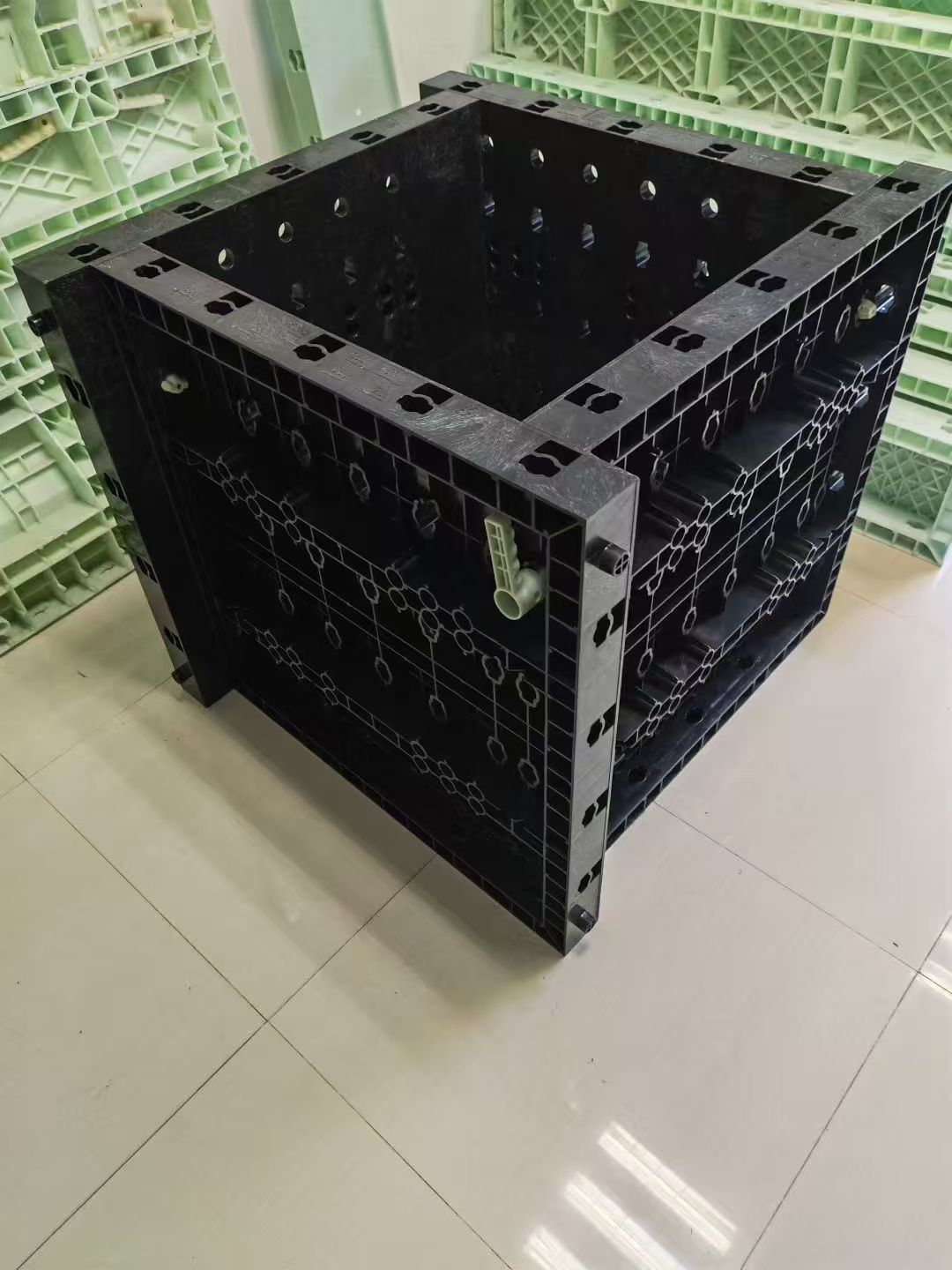

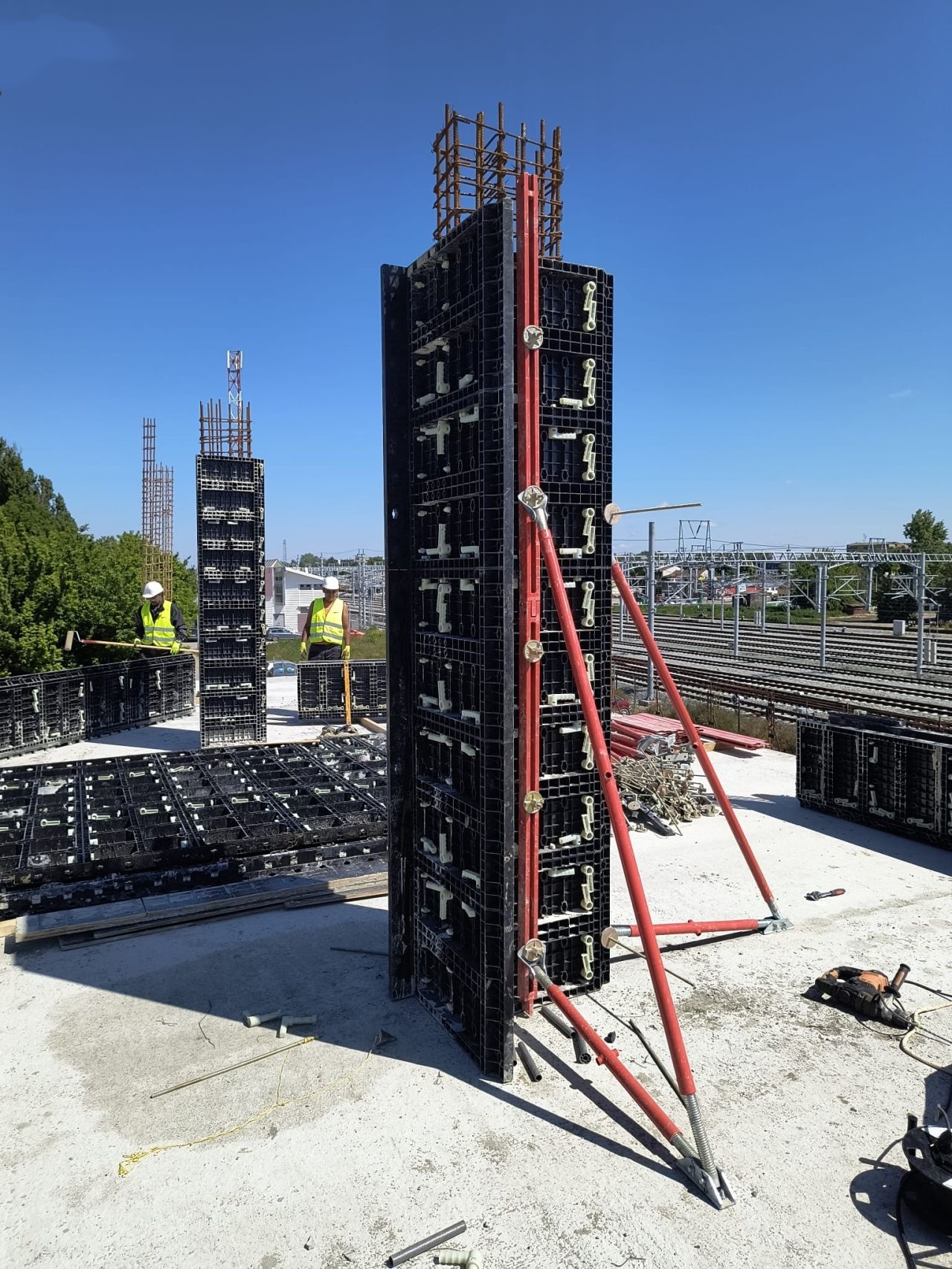

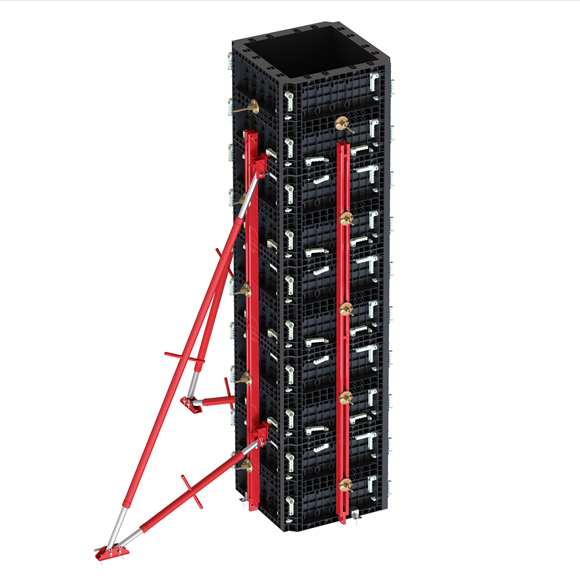

ZEEMO adjustable column formwork can be combined and adjusted to create different concrete column dimensions.
Adjustable column dimensions ranging from 150 mm to 650 mm.
Provide a 100 mm adjustable range.
A half-column formwork can weigh less than 80 kg.
| Model | Size | Unit | Adjustable Range | Unit Weight |
|---|---|---|---|---|
| N1 | 750 × 735 mm | Set | 50 mm | 38 kg |
| N2 | 600 × 675 mm | Set | 100 mm | 26 kg |
| N3 | 600 × 725 mm | Set | 100 mm | 28 kg |

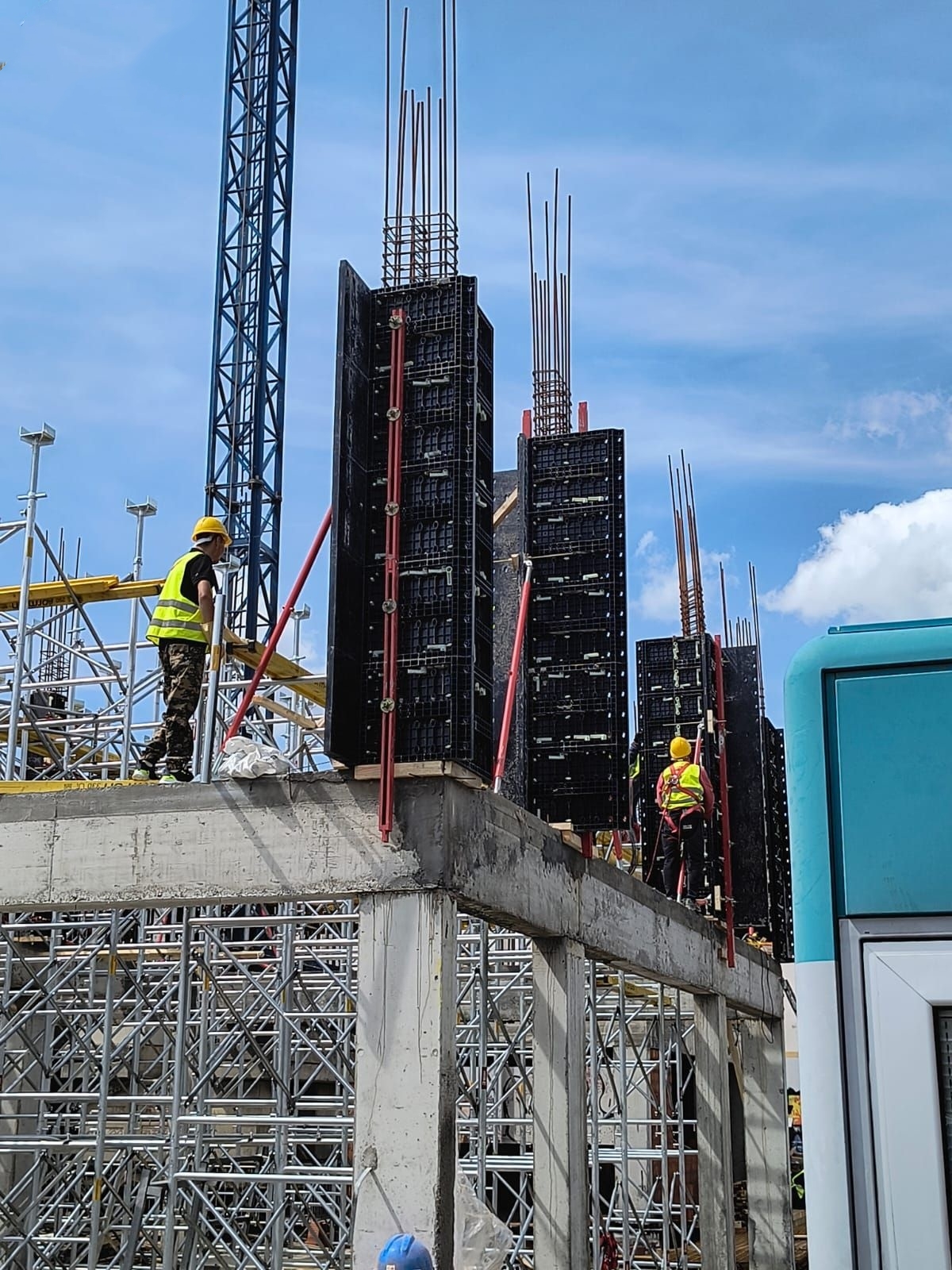

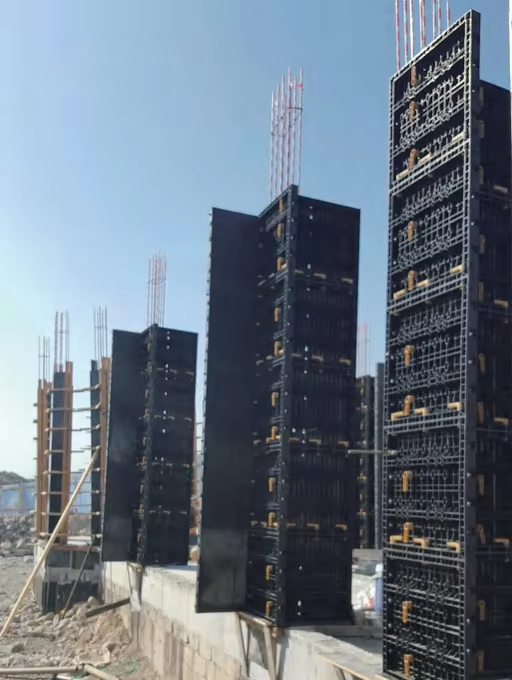

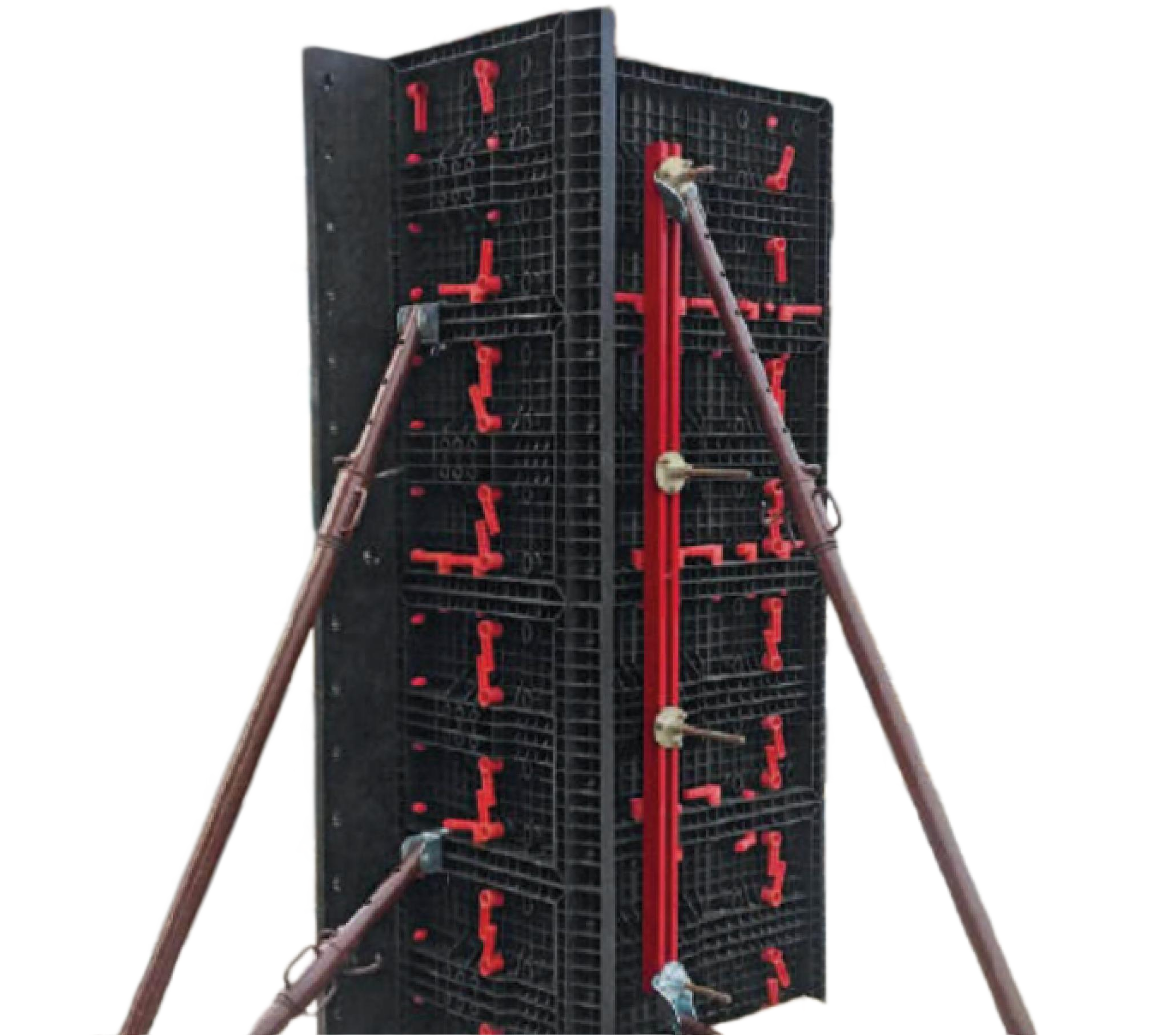

Zeemo adjustable plastic column formwork can be combined and adjusted in 10 cm increments to form columns of different sizes.
It is not necessary to completely dismantle the formwork to strip the cast concrete: simply open it vertically into two half-shells, which are much faster and easier to handle and prepare for the next pour. A half-column formwork can weigh even less than 80 kg, light enough to allow for very easy handling.
Adjustable column formwork for diverse structural needs.
| Model | Diameter | Height / Set | Unit | Unit Weight |
|---|---|---|---|---|
| D300 | 300 mm | 750 mm | Set | 12 kg |
| D350 | 350 mm | 750 mm | Set | 15 kg |
| D400 | 400 mm | 750 mm | Set | 17 kg |
| D450 | 450 mm | 750 mm | Set | 19 kg |

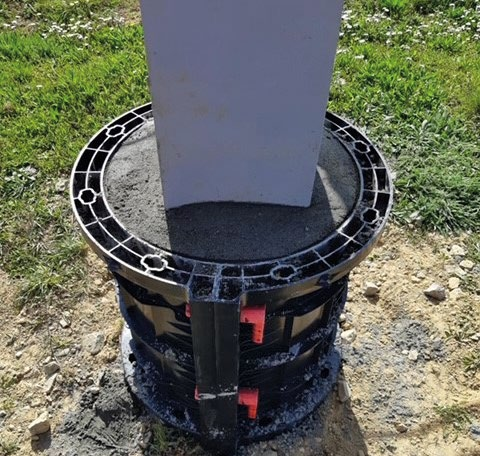

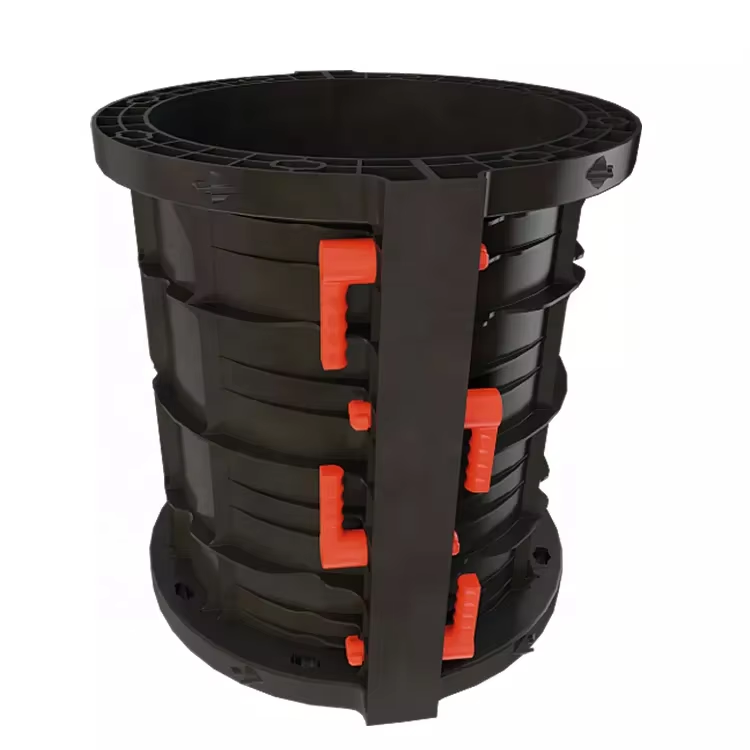

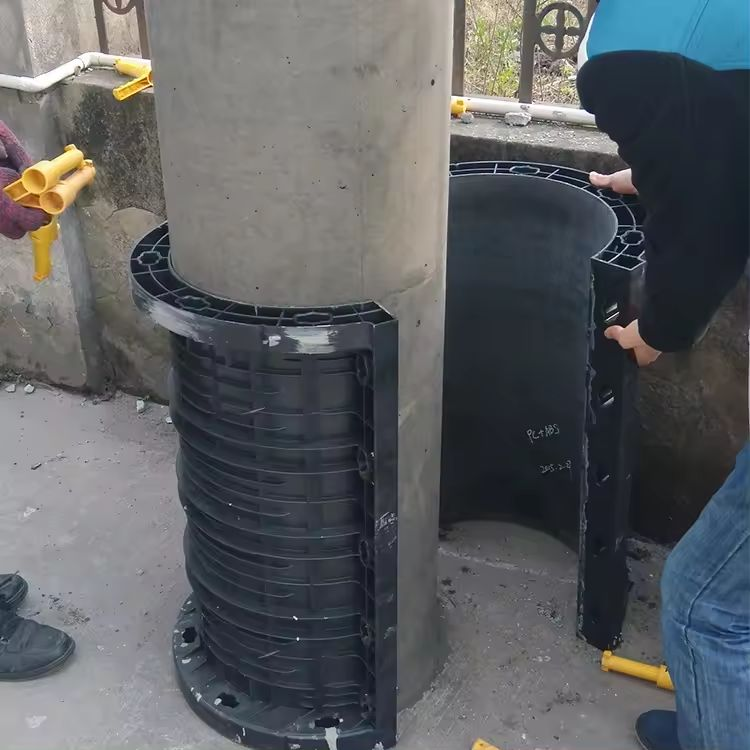

ZEEMO round column formwork is manufactured from high-quality ABS plastic, offering a durable and lightweight solution for circular concrete columns. Each set weighs between 12 kg and 19 kg, making it easy to handle and install without heavy lifting equipment. The smooth interior surface produces a high-quality concrete finish, and the formwork can be reused multiple times across different projects.
Ideal for applications ranging from architectural columns to bridge piers and electrical towers, the round formwork system delivers consistent performance and fast cycle times.
Versatile round formwork for circular concrete structures.
ABS plastic formwork is a lightweight, modular system made from high-strength ABS polymer. It is used to form concrete walls, columns, and other structural elements, offering quick assembly and high reusability compared to traditional timber or steel formwork.
The ZP78 system can be reused more than 100 times when properly used, cleaned, and maintained. Actual reuse count may vary depending on site conditions and handling.
Yes, ZEEMO can provide customized ABS formwork solutions based on your project drawings and construction requirements. Contact our technical team for support.
ABS formwork is lighter, faster to assemble, requires no cranes for panel handling, and offers high repetition rates. It also produces a smooth concrete finish, reducing plastering work.
ZEEMO can provide modular ABS plastic formwork solutions according to your project drawings and construction requirements.
Contact our technical team for product specifications, system configuration and project support.
