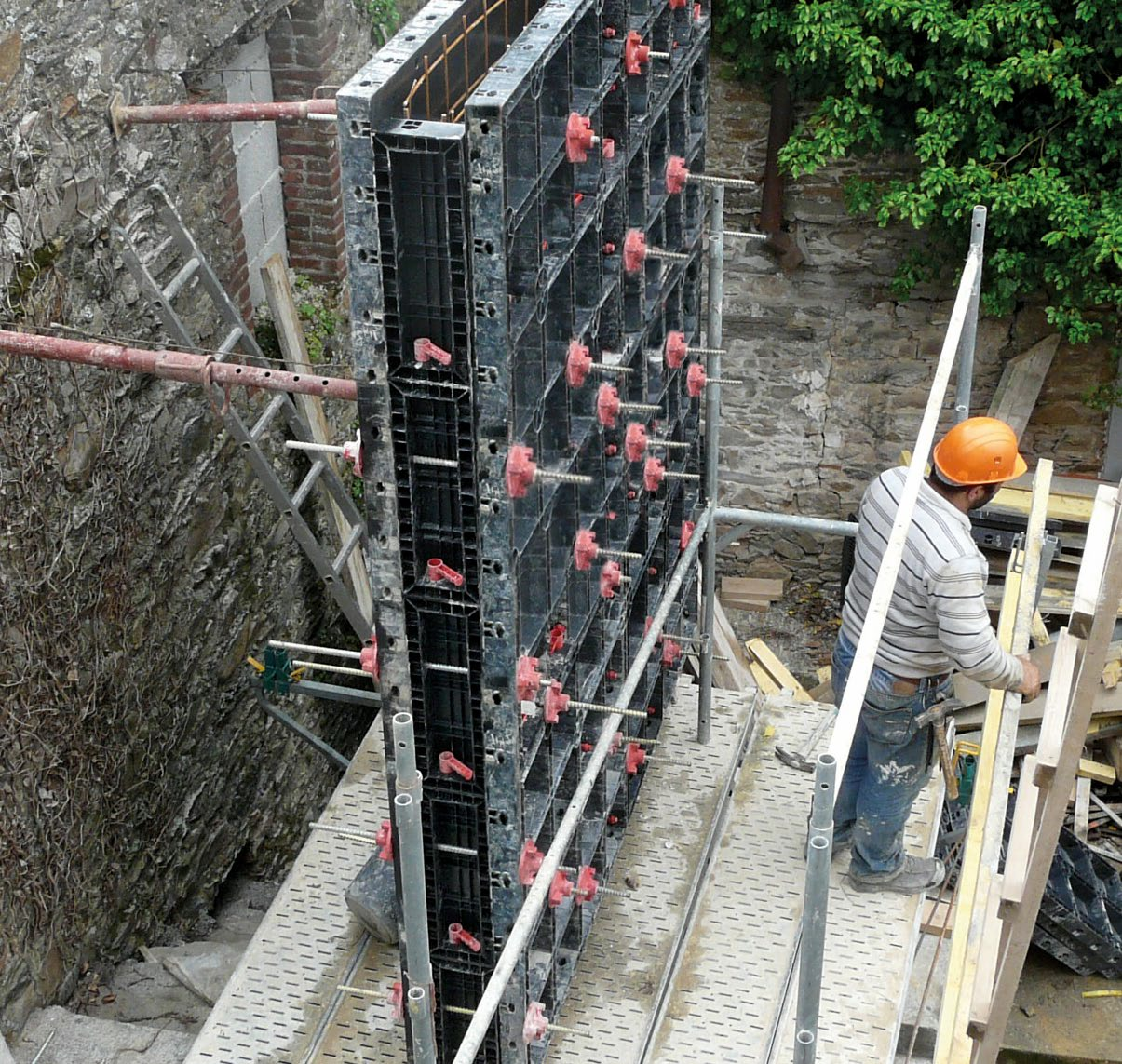

Lightweight Panels

Lightweight individual panels can be handled quickly on site without cranes or mechanical lifting equipment.

Reusable Formwork

The ZP78 system can be reused more than 100 times when properly used, cleaned and maintained.

Fast Connection

Universal closing handles are secured with a simple 90-degree rotation for fast assembly.

Modular Elements

Modular elements allow flexible combinations for different concrete wall and structural configurations.

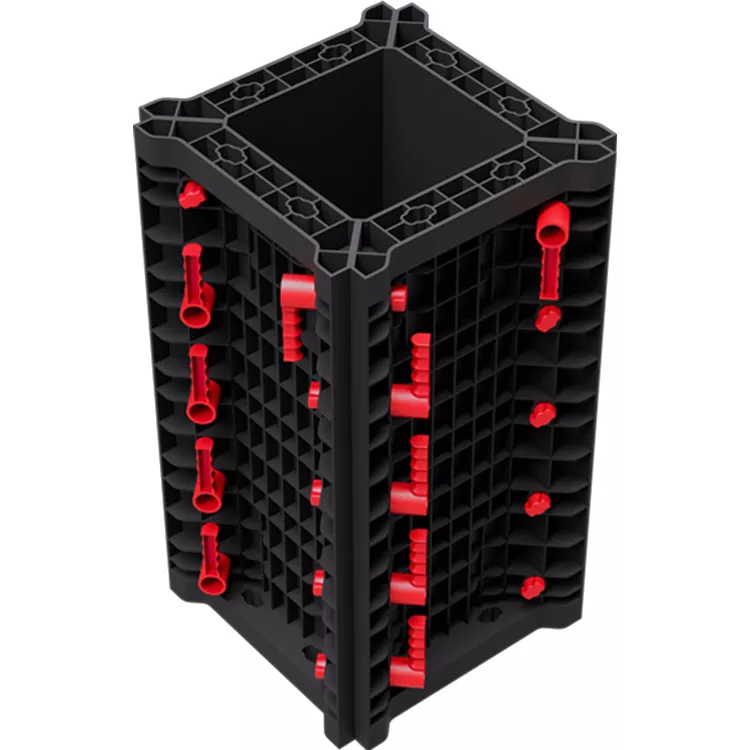

Column Dimensions

Adjustable column dimensions ranging from 150 mm to 650 mm.

N1 / N2 / N3 Adjustment

N2 and N3 provide a 100 mm adjustable range for flexible column dimensions.

Half-Shell Handling

A half-column formwork can weigh less than 80 kg for easier manual handling.

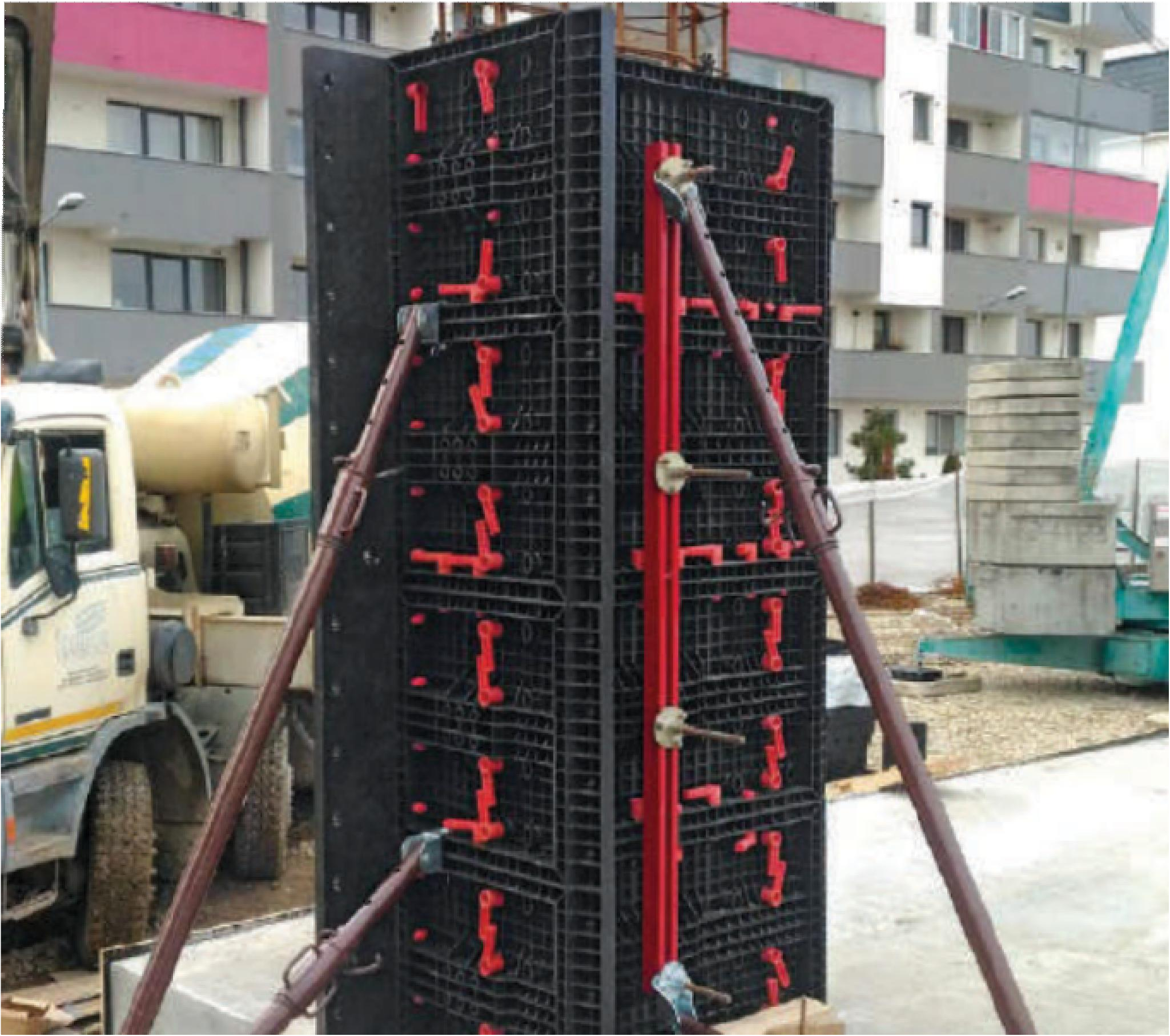

Designed for Fast and Efficient Column Pouring

ZEEMO adjustable plastic column formwork can be combined and adjusted in 10 cm increments to form concrete columns of different sizes.

The formwork does not need to be completely dismantled during stripping. It can be opened vertically into two half-shells, making the system faster and easier to handle, clean and prepare for the next concrete pour. A half-column formwork can weigh less than 80 kg, allowing convenient manual handling on many construction sites.

Lightweight and Reusable Round Column Formwork

ZEEMO round column formwork is manufactured from high-quality ABS plastic, providing a durable and lightweight solution for circular concrete columns. Each set weighs between 12 kg and 19 kg, making the formwork easy to handle and install without heavy lifting equipment.

The smooth interior surface helps achieve a consistent concrete finish, while the reusable design supports repeated use across different construction projects. Applications include architectural columns, bridge piers, electrical towers and other circular concrete structures.

1. What is ABS plastic formwork?

ABS plastic formwork is a lightweight modular concrete formwork system manufactured from high-strength ABS polymer. It can be used for concrete walls, columns and other structural elements, providing fast assembly, easy handling and repeated reuse.

2. How many times can ZEEMO ABS formwork be reused?

The ZP78 system can be reused more than 100 times when properly used, cleaned and maintained. The actual service life and reuse count may vary depending on site conditions, handling, cleaning and maintenance.

3. Can ZEEMO provide customized ABS formwork sizes?

Yes. ZEEMO can provide customized ABS formwork solutions according to project drawings, concrete dimensions and construction requirements. Our technical team can assist with system configuration and project planning.

4. What are the advantages of ABS plastic formwork over traditional formwork?

ABS plastic formwork is lightweight, easy to assemble and can reduce the need for cranes or mechanical lifting for individual panels. It also offers high reuse potential and a smooth formwork surface that can help achieve a consistent concrete finish.
