ZM-SP14
ZEEMO

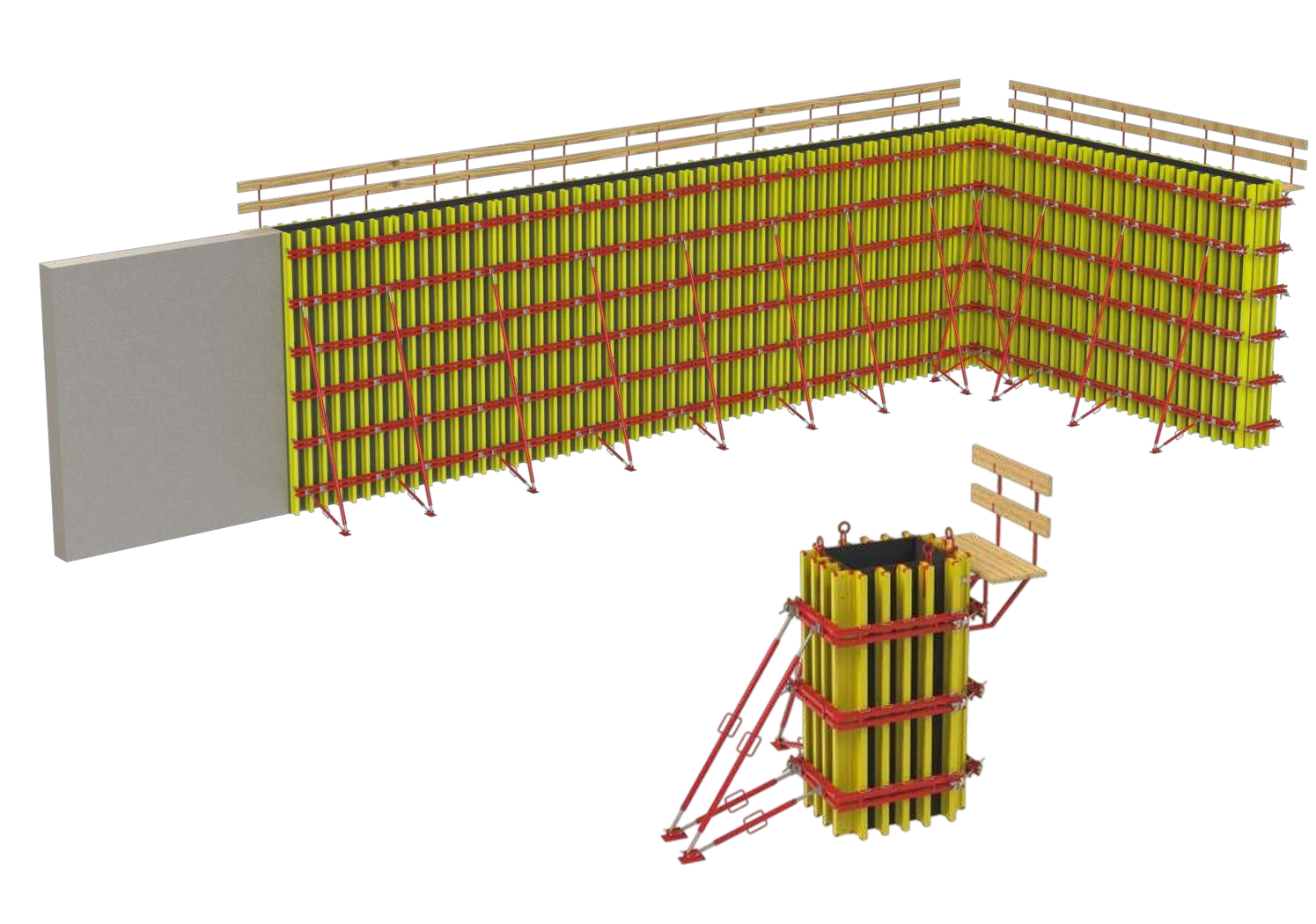

A modular and reusable H20 beam formwork system for concrete walls and columns, designed for flexible configuration, efficient installation, high concrete pressure resistance, and smooth concrete finishes.
The H20 Beam Wall Column Formwork System is a flexible concrete formwork solution for reinforced concrete construction. The system combines H20 timber beams, steel walers, plywood or plastic formlining, and steel accessories to create strong and reusable formwork panels.
Its modular configuration allows contractors to adapt panel dimensions and reinforcement arrangements according to project drawings, concrete pressure, casting height, and site conditions. It can be used for concrete columns, walls, piers, water tanks, basements, bridge structures, and other reinforced concrete applications.
The modular H20 beam system can be configured for different column sizes and construction requirements, providing a flexible solution for reinforced concrete column construction.
H20 timber beams, steel walers, formwork panels, and steel accessories work together to provide a strong and stable structure during concrete pouring.
The reusable design helps contractors reduce material consumption and improve formwork efficiency across multiple concrete casting cycles.
High-quality formlining options can produce a smooth and uniform concrete surface, helping reduce the need for additional finishing work after stripping.
Modular components can be assembled, adjusted, and dismantled efficiently on site, helping improve construction productivity and reduce installation time.
The system can be combined with birch plywood, hardwood plywood, poplar plywood, or hollow plastic boards according to different project requirements.
| Parameter | Specification |
|---|---|
| System Type | H20 Beam Column Formwork System |
| Main Structure | H20 Timber Beam, Steel Walers & Steel Accessories |
| Formwork Material | Birch Wood, H20 Timber Beam, Aluminum Beam & Steel Components |
| Formwork Weight | Approx. 65 kg/m² |
| Maximum Unit Size | Up to 5 × 6 m |
| Maximum One-Time Casting Height | Up to 12 m |
| Maximum Concrete Bearing Capacity | Up to 90 kN/m² |
| Installation Capacity | Approx. 100 m²/day/unit |
| Recommended Crew | 4–6 workers per unit |
| Formlining Options | 18 mm Birch Plywood, Hardwood Plywood, Poplar Plywood & Hollow Plastic Board |
| Panel Size & Shape | Customized according to project requirements |
| Handling Method | Tower Crane |
| Container Loading | Approx. 350 m² per 40 HQ container, including accessories |
Watch the 3D assembly tutorial to understand the basic configuration and installation of the H20 beam formwork system.
ZEEMO provides customized H20 beam wall and column formwork solutions according to project drawings, column dimensions, casting heights, concrete pressure requirements, and site conditions.
Need a Customized H20 Column Formwork Solution?
Send us your structural drawings, column dimensions, casting height, and project requirements. Our technical team can help develop a suitable H20 beam formwork configuration for your project.
