The ZEEMO ABS Plastic Formwork System is a modular and reusable concrete formwork solution designed for efficient construction of walls, columns, beams, slabs, foundations and other concrete structures. Manufactured from durable ABS engineering plastic, the system combines lightweight manual handling, flexible configuration and fast assembly to help contractors reduce labor requirements and improve construction efficiency.
Compared with conventional timber formwork, steel formwork and aluminum systems, modular plastic formwork provides an efficient solution for projects where fast installation, easy transportation, limited crane access and high reusability are important.
The modular connection system simplifies formwork installation. Components can be quickly assembled and removed without the complex cutting and nailing required by conventional timber formwork.
ZEEMO ABS formwork modules are designed to provide reliable support during concrete casting while maintaining dimensional stability and consistent concrete shaping.
Reusable modular components help reduce the continuous replacement of disposable plywood and timber materials, lowering material waste over the project lifecycle.
Lightweight modular components can be handled more easily on site, reducing dependence on heavy lifting equipment for many applications.
The non-absorbent plastic surface is easy to clean after concrete casting. Proper cleaning and maintenance can help extend the service life of the formwork.
Standardized panels and accessories can be configured for different structural dimensions and project requirements, making the system suitable for a variety of concrete structures.
| Feature | ABS Plastic Formwork | Timber / Plywood Formwork | Steel Formwork | Aluminum Formwork |
|---|---|---|---|---|
| Weight | Lightweight | Medium | Heavy | Medium |
| Manual Handling | Easy | Moderate | More difficult | Moderate |
| Reusability | High | Limited depending on condition | High | High |
| Water Resistance | Excellent | Can be affected by moisture | Excellent | Excellent |
| Cutting and Nailing | Modular design | Often required | Not normally required | Not normally required |
| Transportation | Convenient | Moderate | Higher handling requirements | Moderate |
| System Flexibility | High modular flexibility | High but labor-intensive | Depends on design | Usually project-specific |
Note: Actual performance depends on project design, panel specifications, support configuration, concrete pressure and site operating conditions.
ABS plastic formwork installation

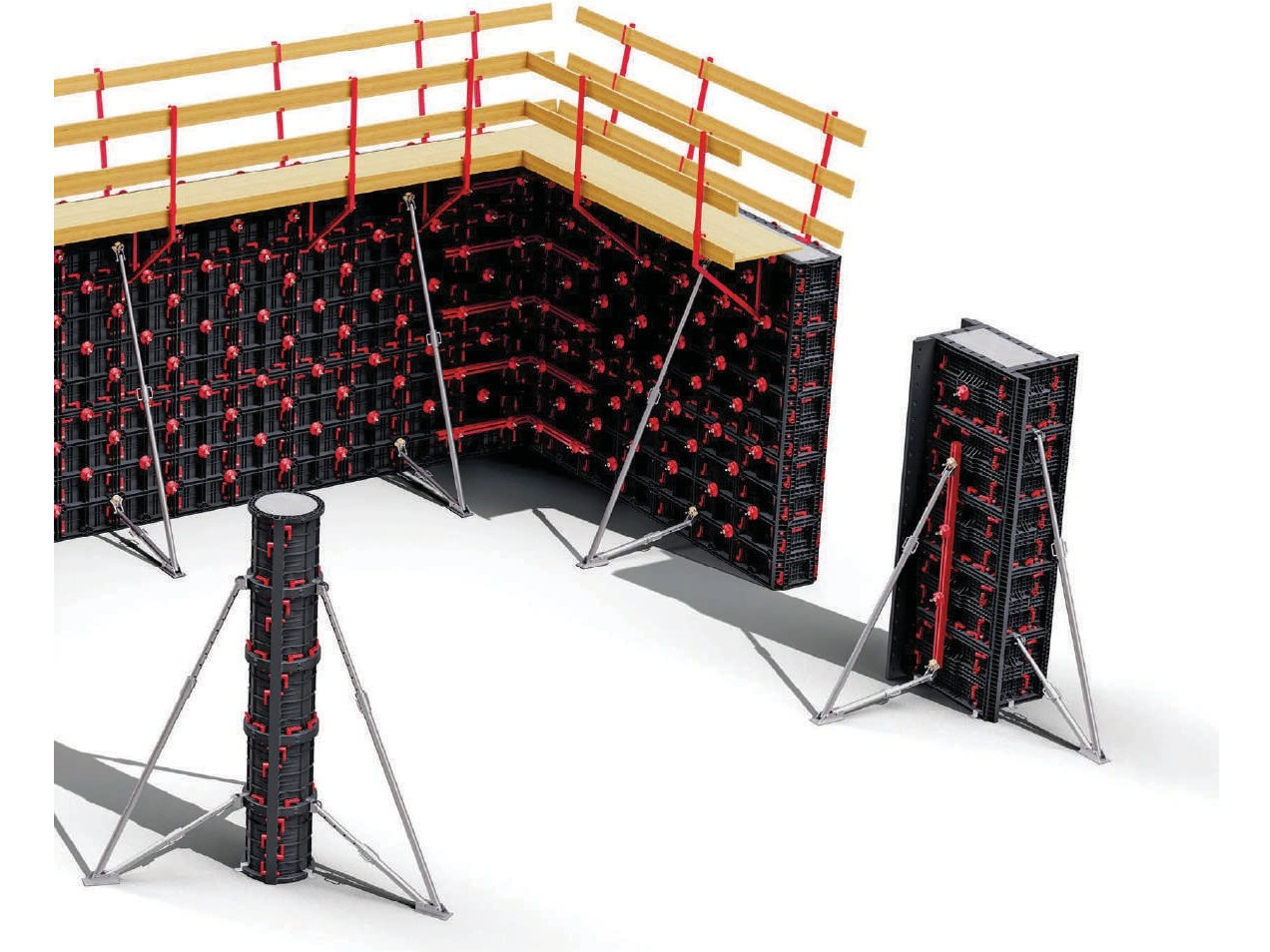

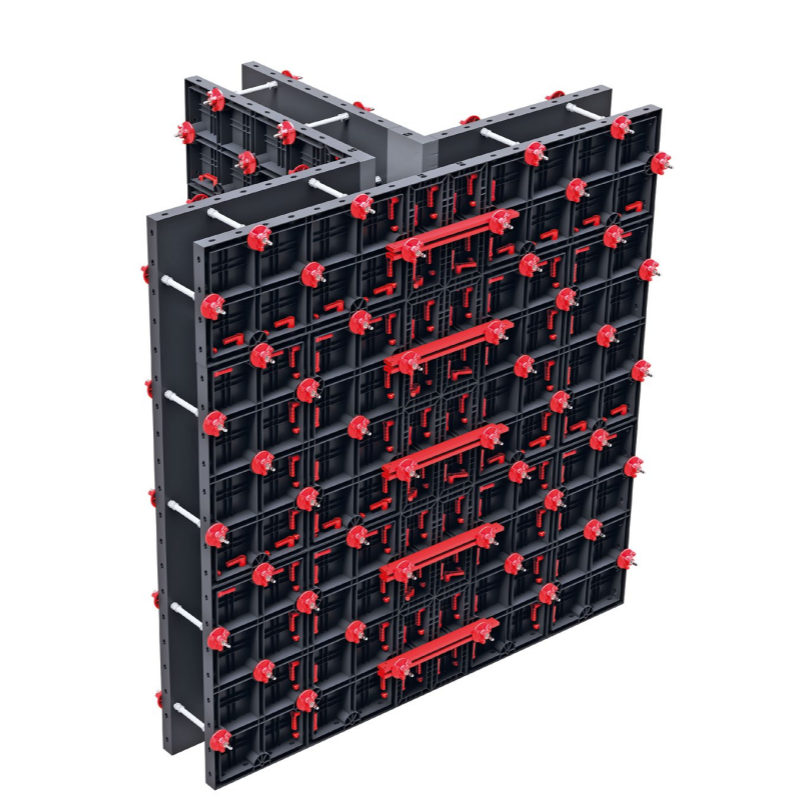

Wall formwork assembly

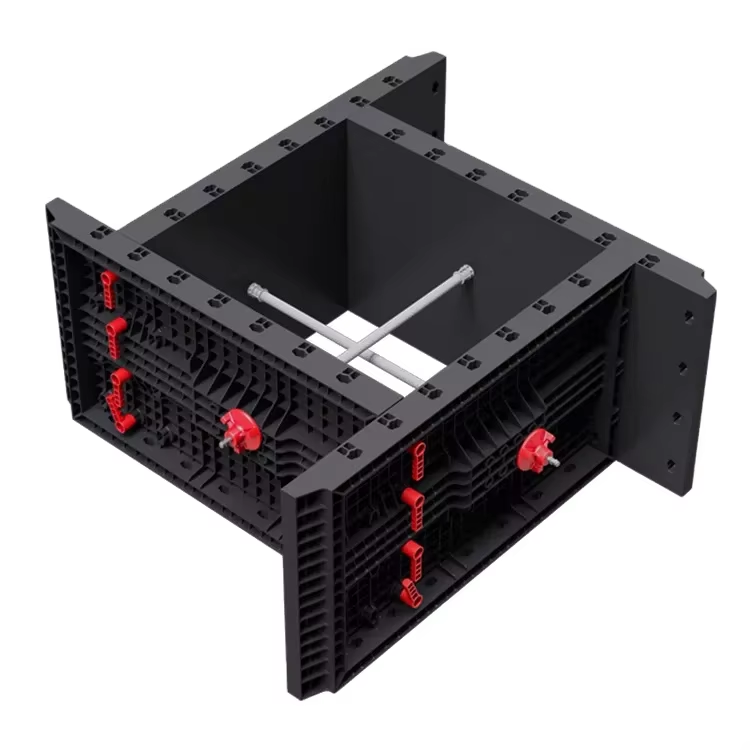

Beam and column formwork configuration
Concrete pouring process

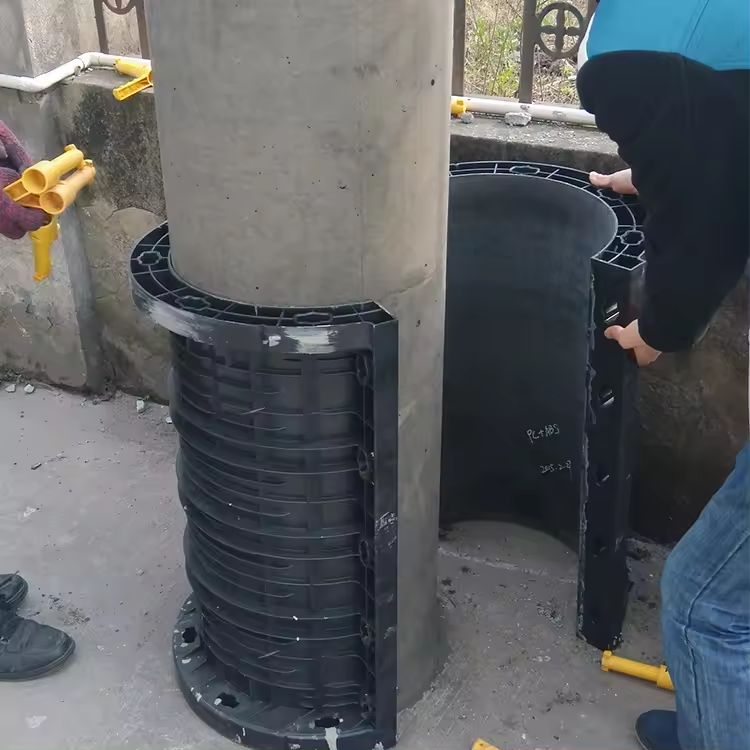

Easy demoulding demonstration
Cleaning and reuse process
Thanks to its modular structure, ZEEMO plastic formwork can be adapted to a variety of concrete construction projects.
Suitable for concrete walls, beams, columns and other structural components in residential construction.
Modular components can support repetitive concrete construction and improve workflow efficiency.
Suitable for selected infrastructure structures, including retaining walls and other cast-in-place concrete applications.
Selecting the right formwork is not only about choosing individual panels. Efficient concrete construction requires a complete system that considers structural dimensions, connection methods, concrete pressure, reinforcement arrangements and construction procedures.
ZEEMO can provide a complete modular formwork solution based on project requirements. The system can be designed around the specific structure to improve installation efficiency and simplify on-site operations.
Provide drawings, structural dimensions or project requirements.
Develop a suitable modular formwork solution.
Prepare standardized ABS formwork panels and accessories.
Install formwork according to the drawing and construction requirements.
After demoulding, clean and prepare the components for the next construction cycle.
1. What is ABS plastic formwork used for?
ABS plastic formwork is used to shape cast-in-place concrete structures such as walls, columns, beams, slab, foundations and other structural elements.
2. Is plastic formwork reusable?
Yes. Modular plastic formwork is designed for repeated use. Reuse time is about 100 times. The actual number of reuse cycles depends on product specifications, construction methods, concrete pressure.
3. Can ABS plastic formwork replace plywood formwork?
For many applications, reusable plastic formwork can be an alternative to traditional plywood systems. The best solution depends on the structure, project size, budget, required surface quality and construction workflow.
4. Can plastic formwork be used without a crane?
Lightweight modular components can be manually handled in many applications, making the system suitable for projects with limited lifting equipment. Actual handling requirements depend on the component size and site conditions.
5. Can ABS plastic formwork be used for columns and beams?
Yes. With the appropriate modular configuration and reinforcement design, plastic formwork can be used for concrete columns, beams, walls and other structural components.
6. Can ZEEMO provide a complete formwork design?
ZEEMO can develop a formwork solution based on project drawings, dimensions and construction requirements, helping customers configure the appropriate panels and accessories.
Whether you are building villas, apartment buildings, commercial structures, retaining walls or other concrete projects, ZEEMO can help develop a modular plastic formwork solution based on your project requirements.
Send us your drawings, dimensions or project information to receive a suitable formwork configuration.
