ZM-SSFP
ZEEMO

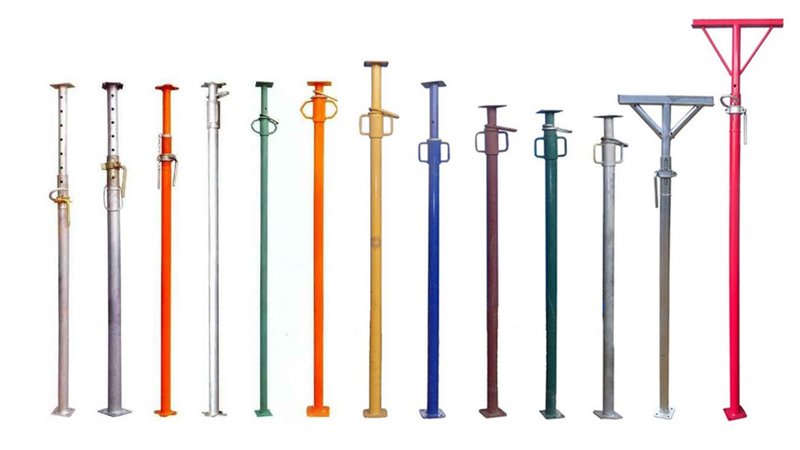

Telescopic inner and outer tubes provide flexible height adjustment.
Steel construction allows the props to be reused on different projects.
Simple components make assembly and dismantling convenient on site.
OEM dimensions and product configurations can be supplied according to project requirements.
| Item | Specification |
|---|---|
| Product | Adjustable Steel Prop |
| Type | Heavy Duty / Light Duty |
| Inner Pipe / Outer Pipe | 48 / 60 mm; 40 / 48 mm; 48 / 56 mm; 60 / 75 mm |
| Pipe Thickness | 1.6–4.0 mm |
| Normal Length | 1.7–3.0 m / 2.1–3.8 m / 2.2–4.0 m / 2.7–5.0 m |
| Surface Treatment | Pre-Galvanized / Painted / Powder Coated / Hot-Dip Galvanized |
| Material | Q235 Steel |
| Application | Construction |
| Packing | Bundle |
Lightweight adjustable prop configuration with 40 mm inner tube and 48 mm outer tube.
| Min. Height | Max. Height | Inner Tube | Outer Tube |
|---|---|---|---|
| 0.6 m | 1.1 m | 40 mm | 48 mm |
| 0.8 m | 1.4 m | 40 mm | 48 mm |
| 1.6 m | 2.9 m | 40 mm | 48 mm |
| 1.8 m | 3.2 m | 40 mm | 48 mm |
| 2.0 m | 3.6 m | 40 mm | 48 mm |
| 2.2 m | 4.0 m | 40 mm | 48 mm |
Adjustable configuration with 48 mm inner tube and 56 mm outer tube.
| Min. Height | Max. Height | Inner Tube | Outer Tube |
|---|---|---|---|
| 1.6 m | 2.9 m | 48 mm | 56 mm |
| 1.8 m | 3.2 m | 48 mm | 56 mm |
| 2.0 m | 3.5 m | 48 mm | 56 mm |
| 2.0 m | 3.6 m | 48 mm | 56 mm |
| 2.2 m | 4.0 m | 48 mm | 56 mm |
Heavy-duty configuration using a 48 mm inner tube and 60 mm outer tube.
| Min. Height | Max. Height | Inner Tube | Outer Tube |
|---|---|---|---|
| 1.6 m | 2.9 m | 48 mm | 60 mm |
| 1.8 m | 3.2 m | 48 mm | 60 mm |
| 2.0 m | 3.5 m | 48 mm | 60 mm |
| 2.0 m | 3.6 m | 48 mm | 60 mm |
| 2.2 m | 4.0 m | 48 mm | 60 mm |
| 3.0 m | 5.0 m | 48 mm | 60 mm |
| 3.5 m | 6.0 m | 48 mm | 60 mm |

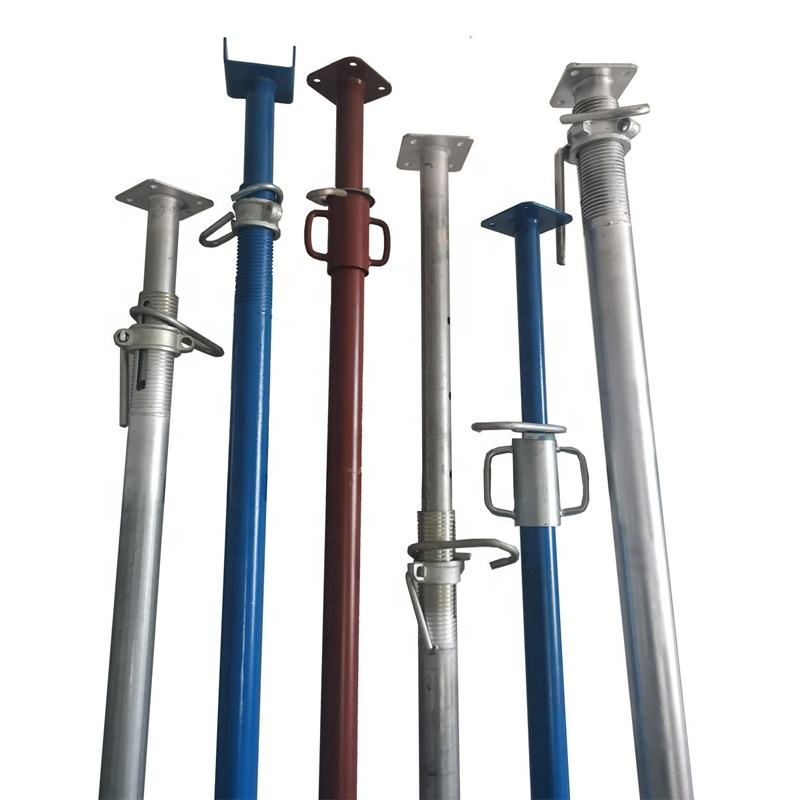

Different surface finishes are available to meet different project requirements, environmental conditions and customer preferences.
Zinc-coated steel surface for improved corrosion resistance.

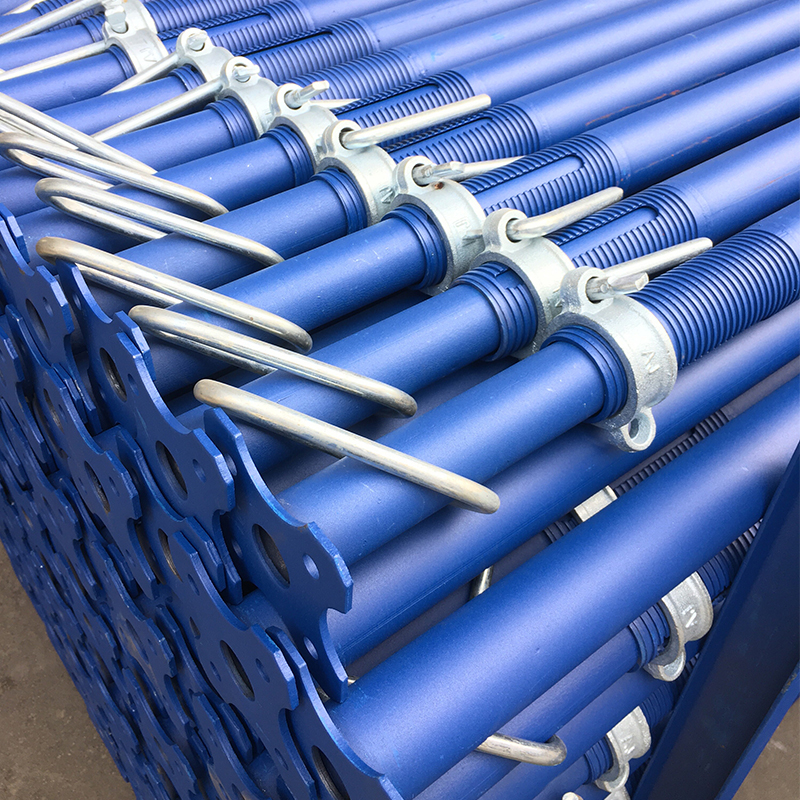

Painted finish available in different customer-required colors.
Powder coating provides a durable decorative and protective surface.
Suitable when enhanced corrosion protection is required.

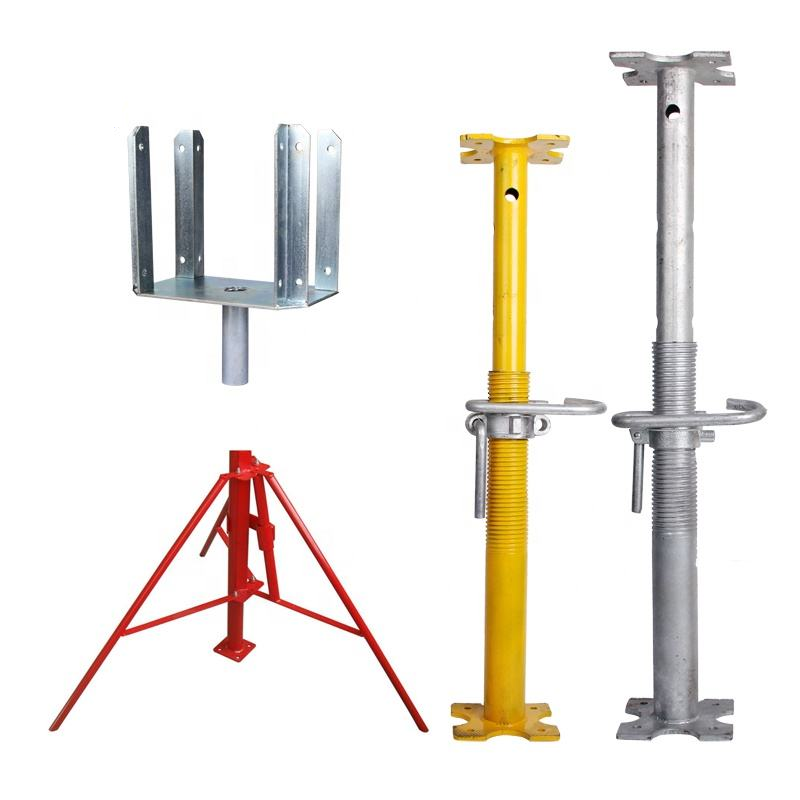

ZEEMO can also supply a complete range of adjustable steel prop accessories and supporting components.
| Accessory | Image | Specification | Material | Surface Finish |
|---|---|---|---|---|

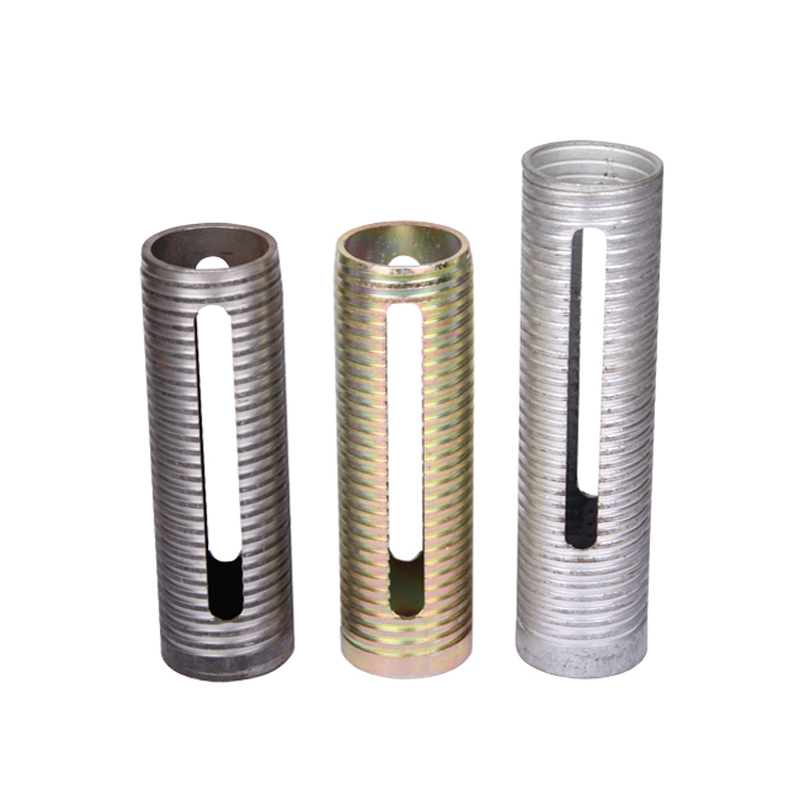

| Adjustable Prop Sleeve |  | Diameter: 60 / 76 mm Length: 195–400 mm Thickness: 2.5–4.0 mm Hole: 14×150 mm / 15×160 mm Thread: 6.35 mm | Steel | Galvanized / Black |

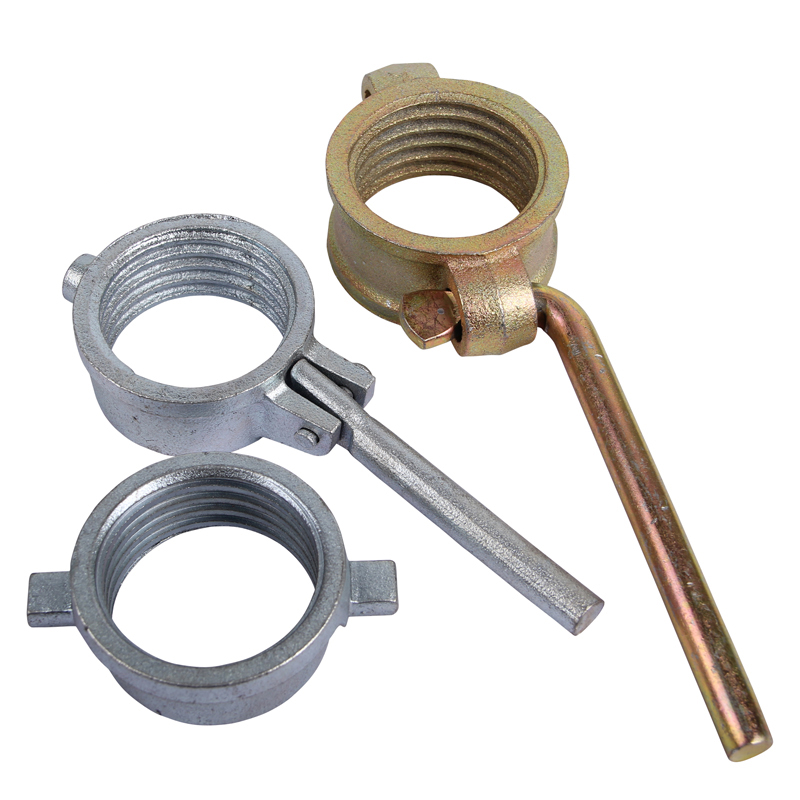

| Sleeve Handle Nut |  | Diameter: 60 / 76 mm Weight: 250 g / 560 g / 780 g and etc. Thread: 6.35 mm Handle: With or Without | Ductile Iron Casting | Galvanized / Natural |

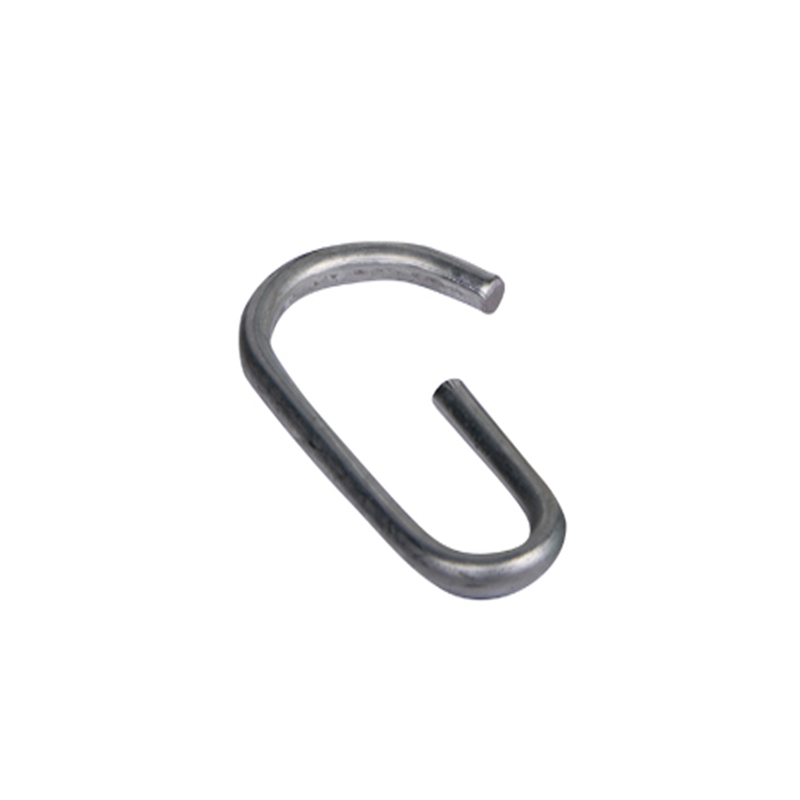

| Support Pin |  | G Pin: 11 / 12 / 14 / 16 mm Chain Pin: 11 / 12 mm Wire Pin available | Q235 / 45# Steel | Galvanized / Natural |

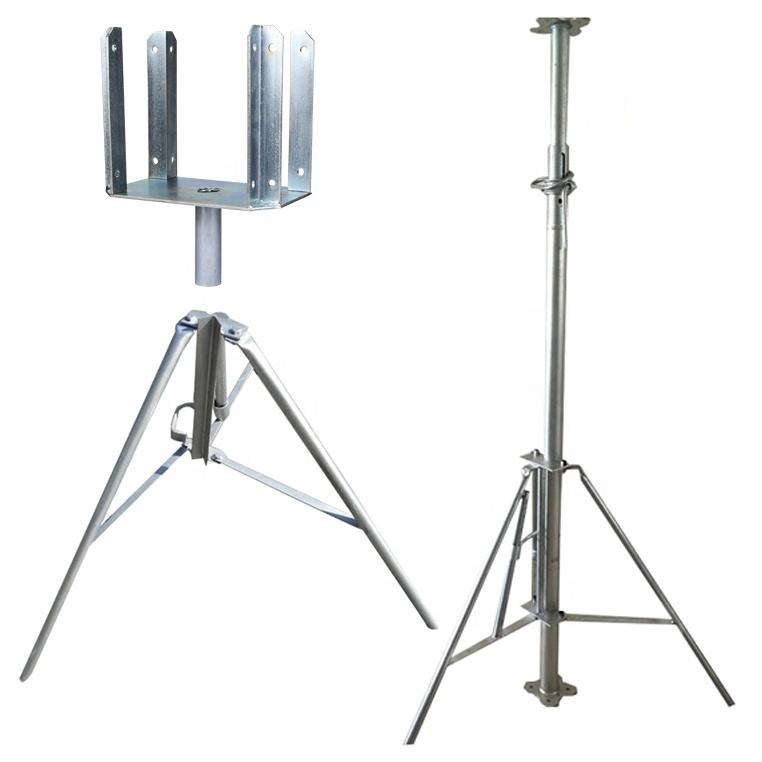

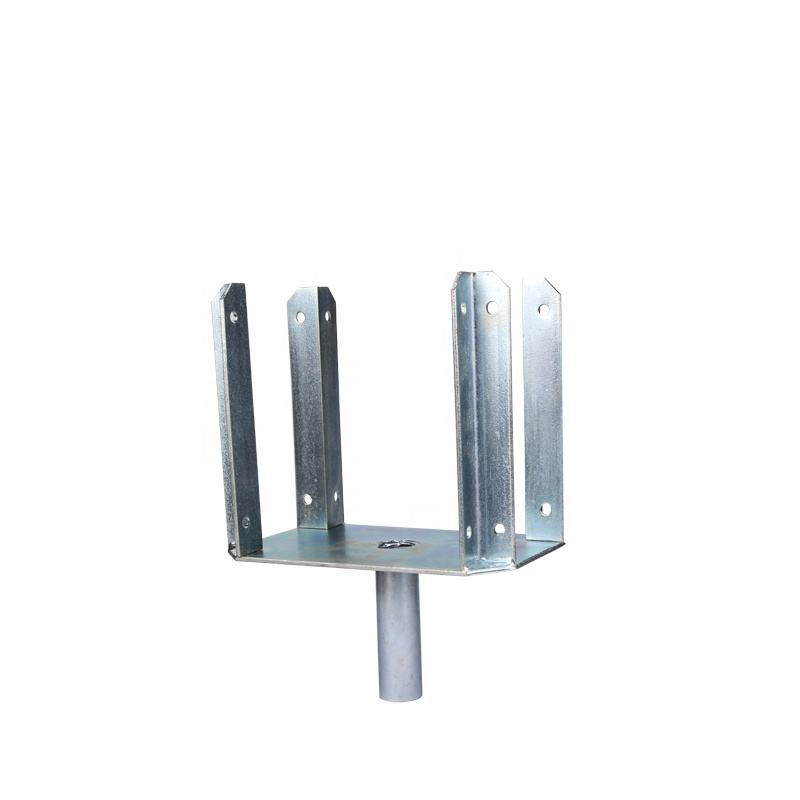

| Fork Head |  | 2.2 kg / 2.5 kg | Steel | Galvanized / Painted |

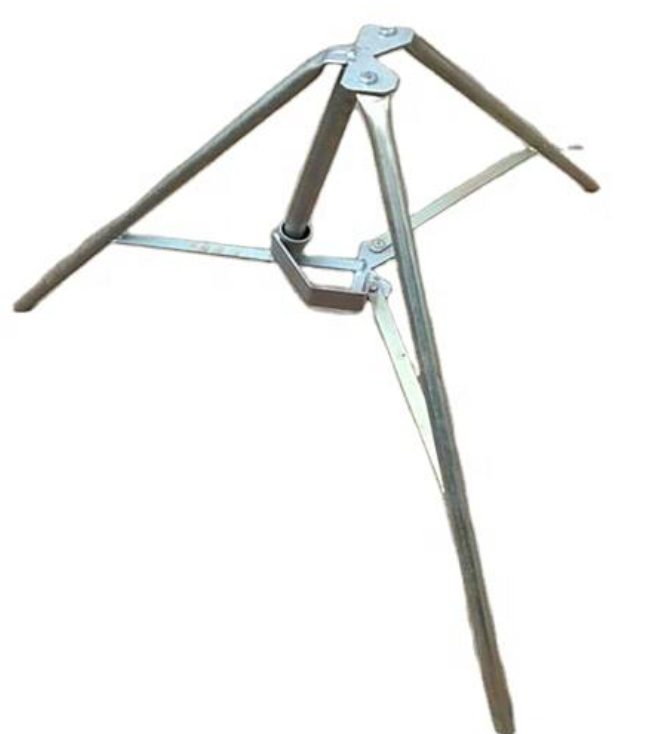

| Tripod |  | Approx. 5.5 kg | Steel | Galvanized / Painted |

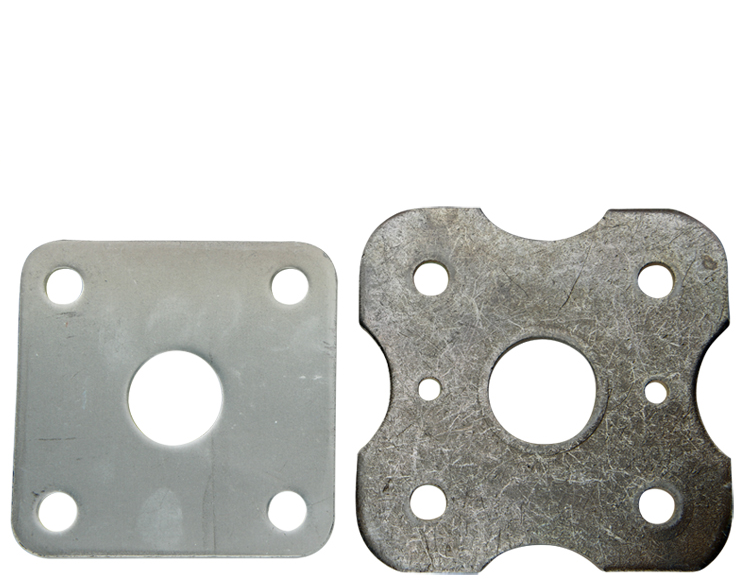

| Base Plate |  | 120×120×5 mm 140×140×8 mm Flower Type / Square Type | Steel | Galvanized / Natural |

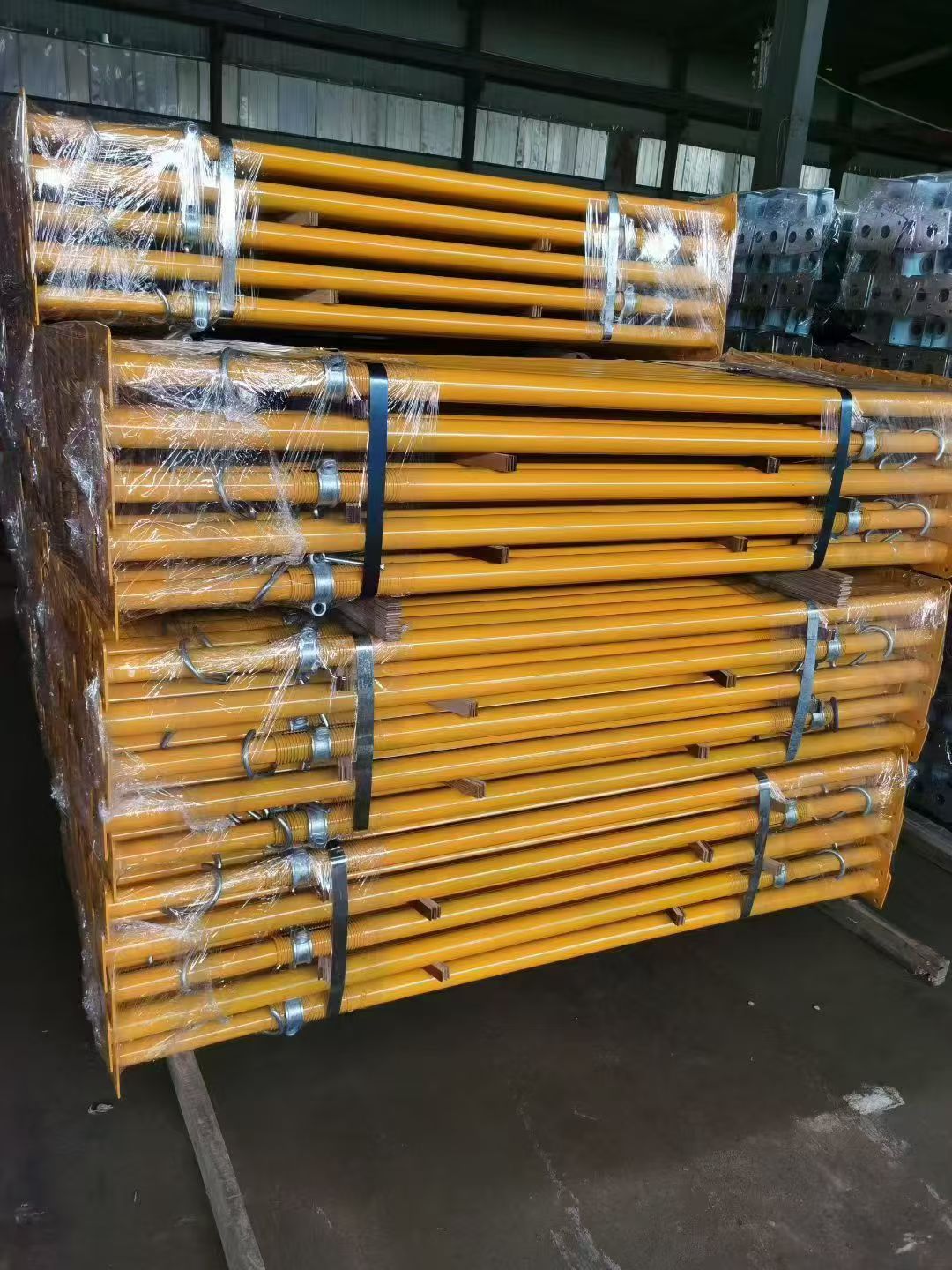

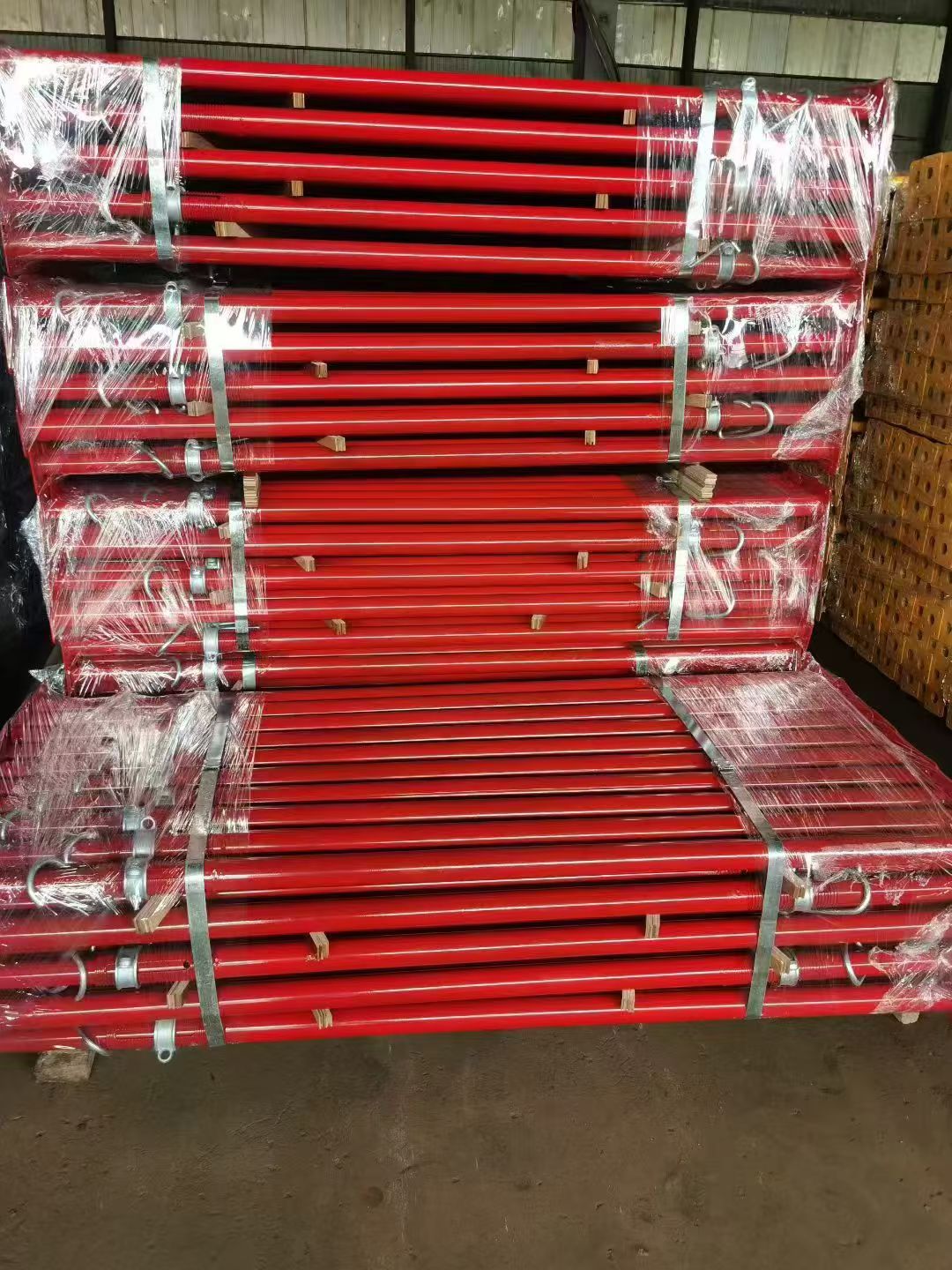

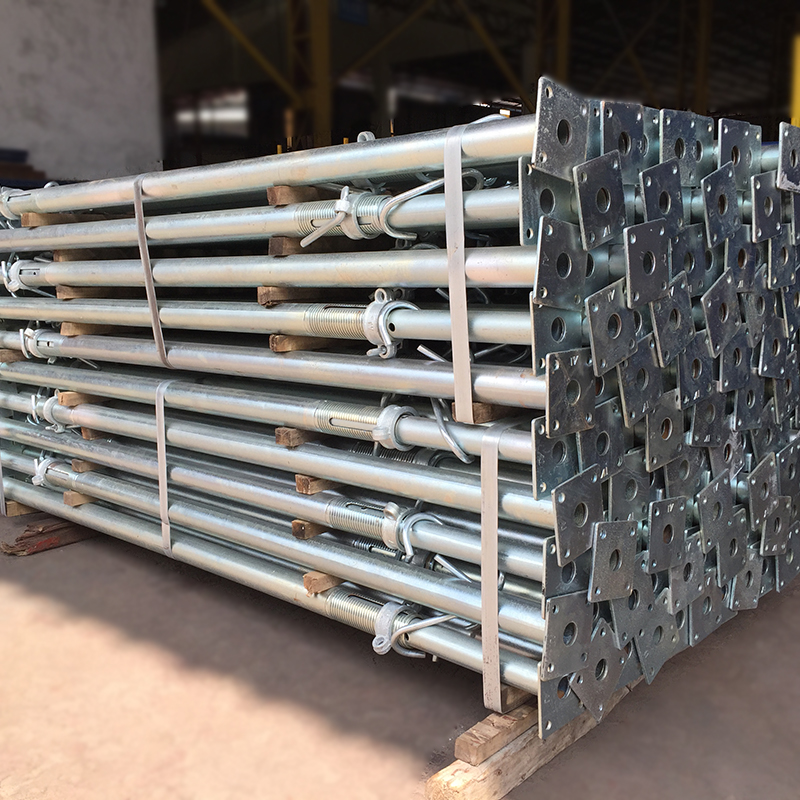

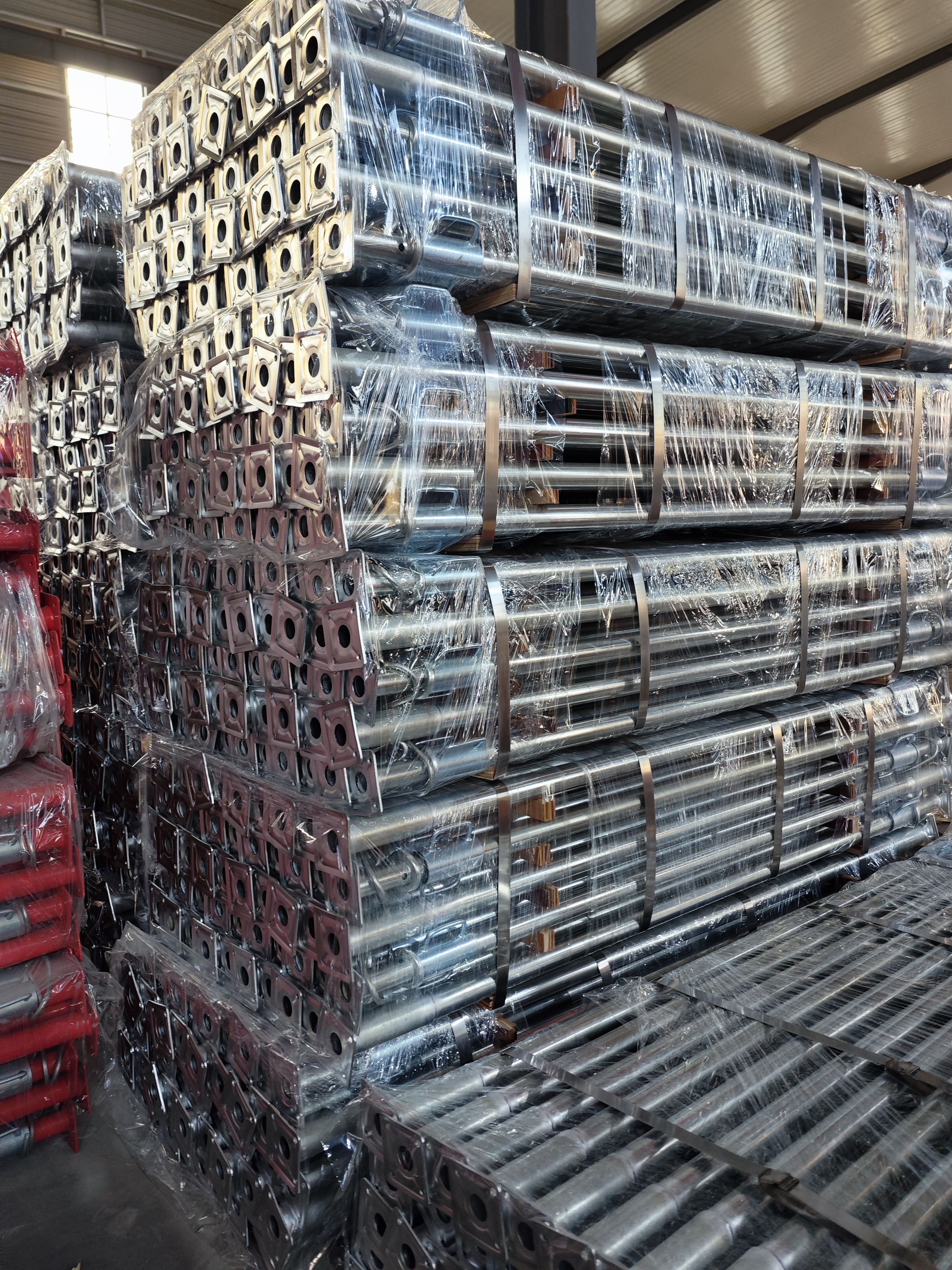

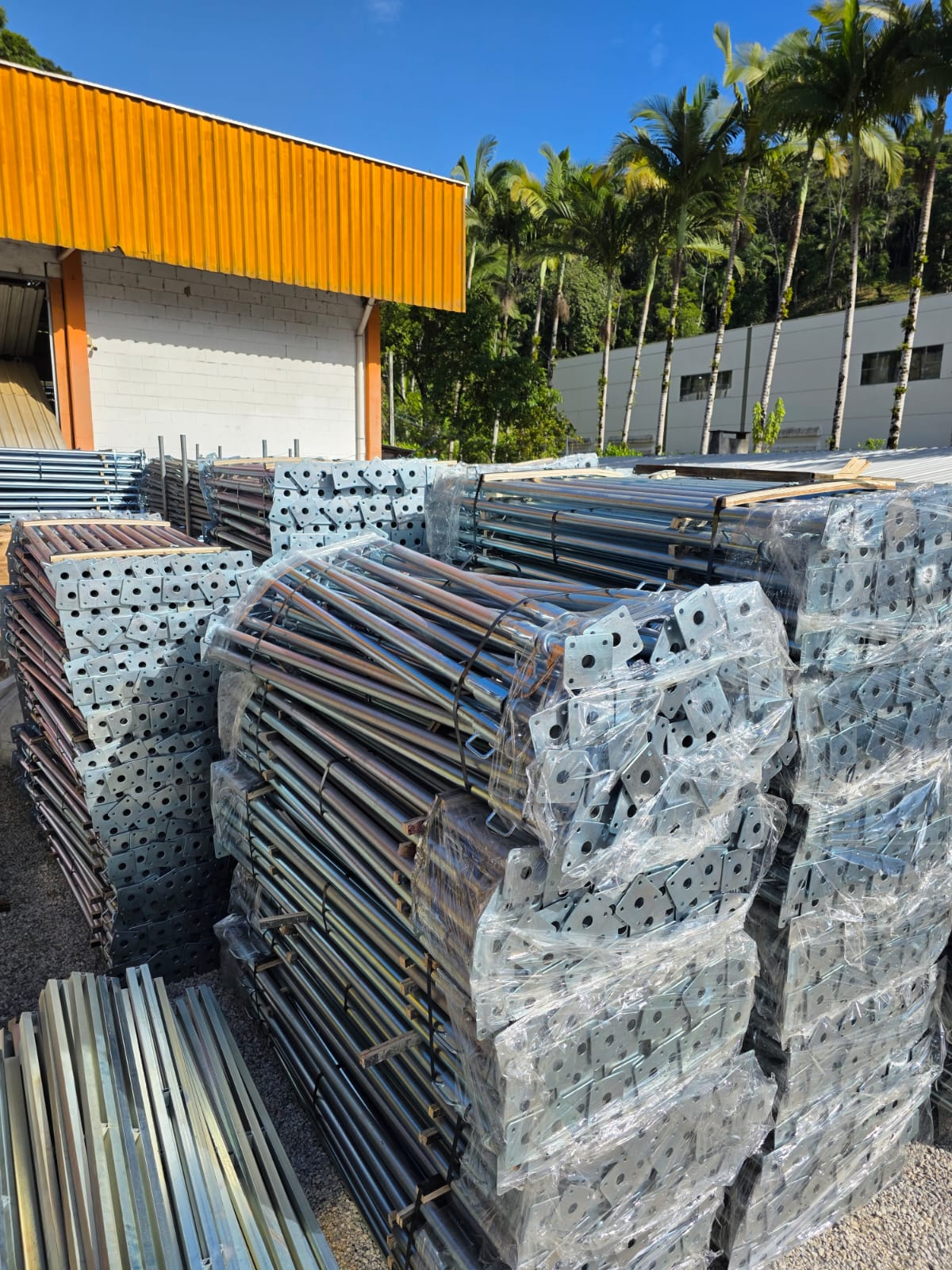

Steel props are carefully packed in bundles for secure transportation and storage.

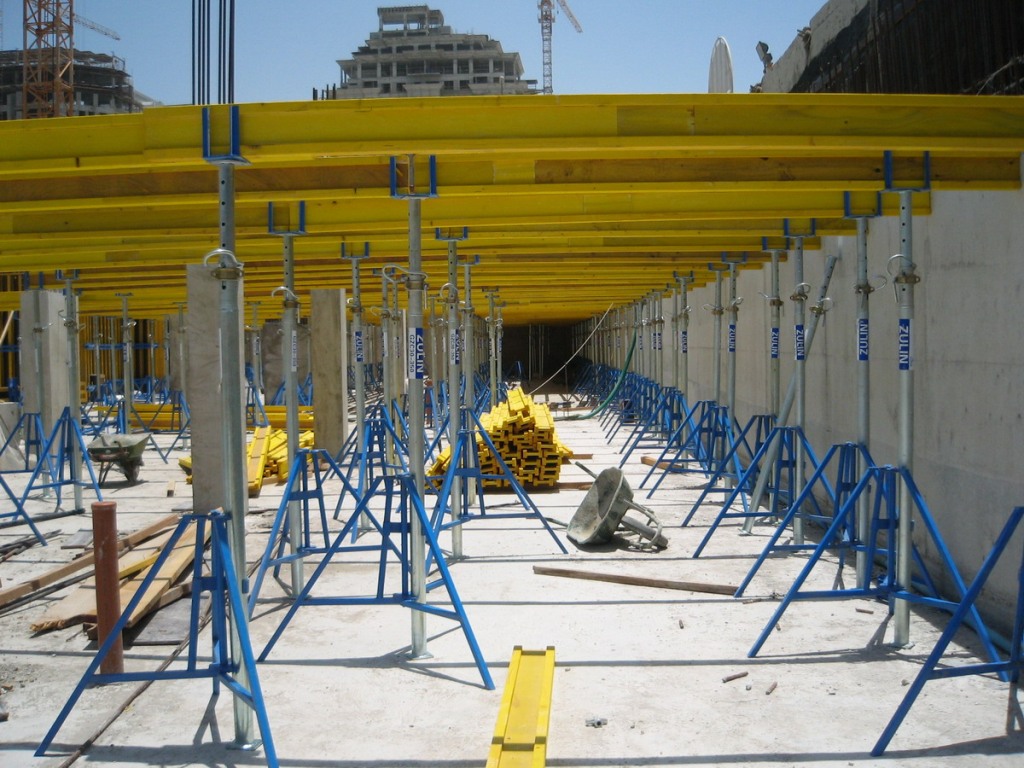

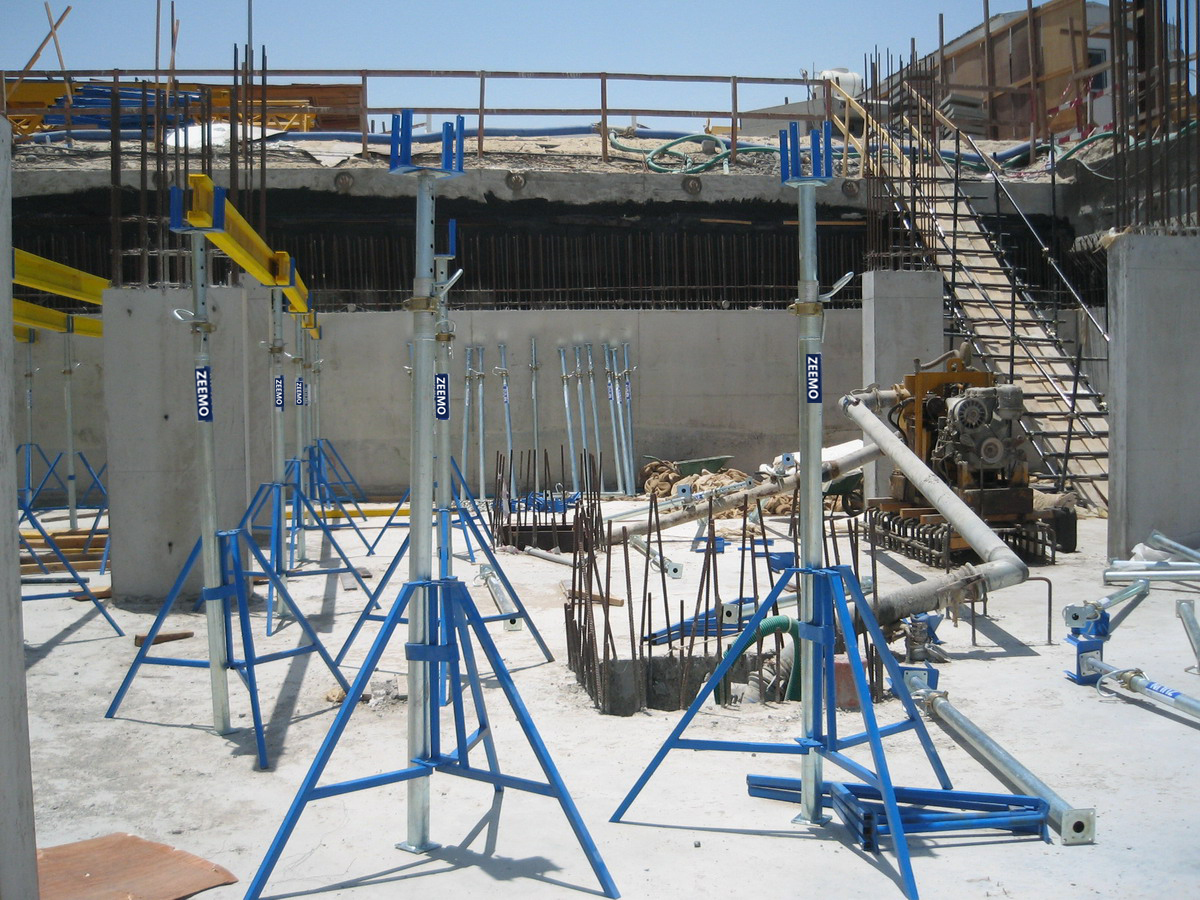

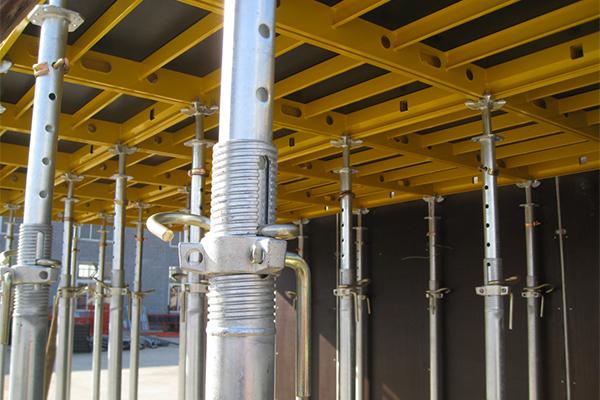

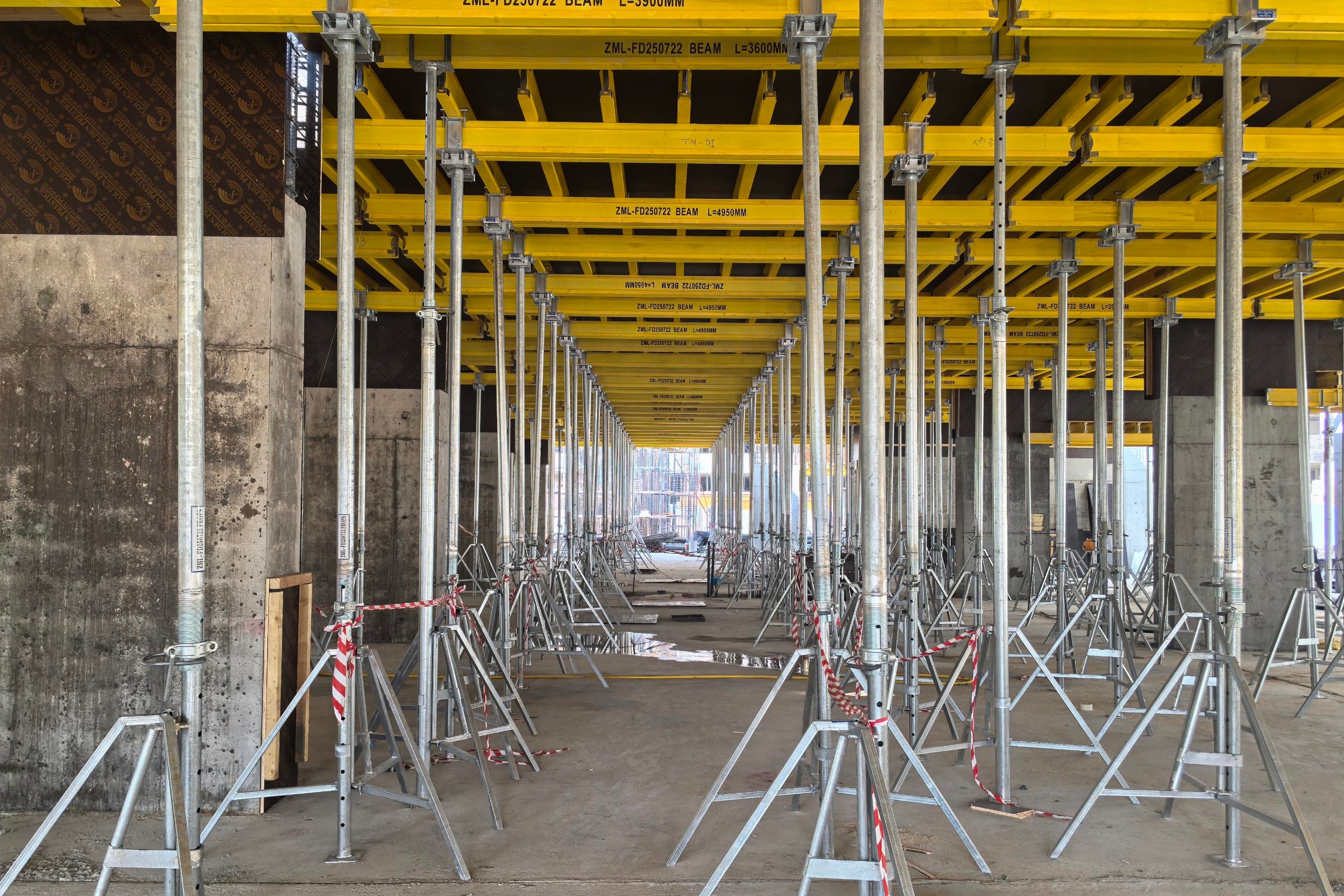

Adjustable steel props are widely used in various construction support scenarios.

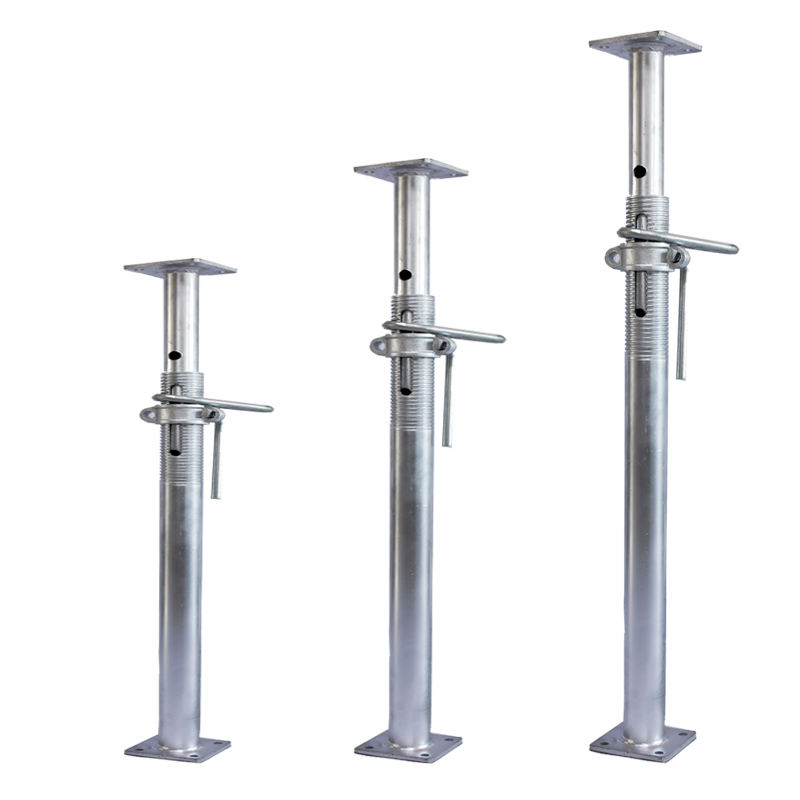

An adjustable steel prop is a telescopic temporary support consisting mainly of an inner tube, outer tube, adjustment nut, locking pin and top and bottom plates. Its working height can be adjusted according to construction requirements.
The reference specifications include 40/48 mm, 48/56 mm and 48/60 mm inner/outer tube combinations.
Pre-galvanized, painted, powder coated and hot-dip galvanized surface treatments are available according to product configuration and customer requirements.
Yes. The supplied reference information states that OEM sizes and features are available. Customized prop dimensions and accessory designs can therefore be discussed according to project requirements.
Yes. Related products include top plates, base plates, support pins, fork heads, tripods, adjustable prop sleeves and sleeve handle nuts.
Tell us your required working height, tube diameter, thickness, surface treatment and quantity. ZEEMO can recommend a suitable adjustable steel prop configuration and provide a customized quotation.
