ZEEMO Phenolic WBP Glue Best Spruce Yellow Doka H20 Wood Laminatet Timber Beam Formwork for Construction

I beam formwork,h20 wood beam formwork for construction,wood formwork shuttering beam,plywood timber beam lvl,wooden h beam formwork h20
Availability:
Quantity:
Inquire Add to Basket

  • H20/16

  • ZEEMO

Products Description

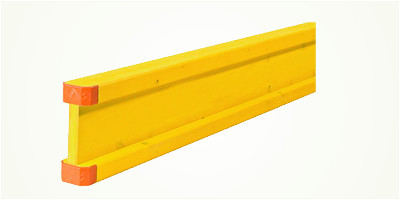

Zeemo yellow structural timber formwork h20 beam
Zeemo formwork H20 beam

The wooden H20 beam, with its "H" shaped cross-section, serves as a structural support in carpentry, effectively distributing loads and resisting bending and shear forces. It ensures stability and durability in wooden construction projects, such as framing, floor, and roof supports.

Specification
H20 Size
Height 200mm , width 80mm
Available length (M)
1.5 1.9 2.45 2.75 2.9 3.0 3.3 3.6 3.9 4.5 4.9 5.9 etc
Flange
North Europe solid wood spruce, width 80mm thickness 40mm
Web
Plywood 27mm * 150mm
Glue
WBP glue
Weight
 4.5 kg/m
Moisture Content
12% ex workshop
Package
 Pallet , 105 pcs / pallet
Standard
EN13377
Shear Resistance
23.9 kN
Bearing Resistance
47.8 kN
Bending Resistance
10.9 kN
Features
Applicable in all kinds of Girder Formwork System
Timber beam is a very important part of formwork system and has been widely applied in construction.

Not only used in wall / column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /
Tunnel/ Airport/ Powerplant/ water treatment etc.
Custom size
H20 as well as H16 can be made into any length within 5.9 meter.
As required, standard holes can be drilled in the two ends of timber beams. We can lengthen the timber beam by end-to-end join. According to customers’ demand, we can produce timer beams with any length.
Product Details
Extendable beam
Custom CAP Available
Package
Product Application
Wide application in
- Slab formwork                                          - Tunnel formwork
- Wall formwork                                          - Special formwork
- Column formwork                                    - Scaffolding
- Bridge formwork                                      - Working platform
Wall/Single side Form
Column/Pier Form
Slab/Table form
